Troy-Bilt 270-VU Engine Troy-Bilt OHV Engine

Model: 270-VU Engine

Back To Assemblies

Save Part Not Listed?
product name

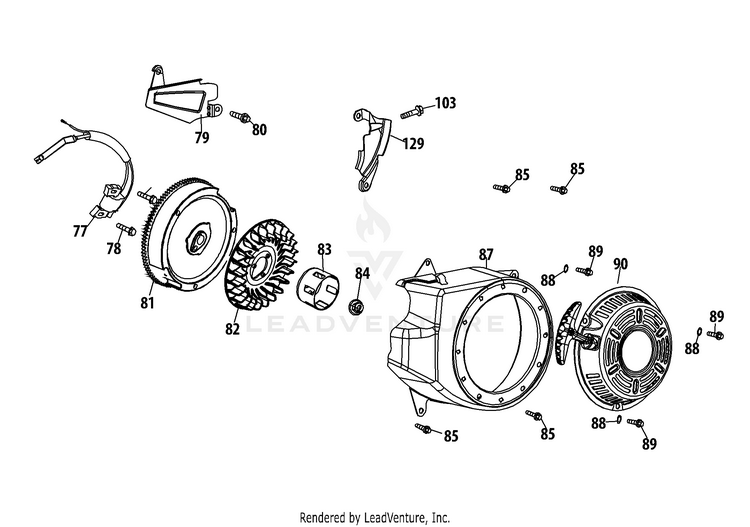

270-VU Flywheel & Blower Housing

...
...
77
Ignition Coil Assembly MTD-951-10792
...
78
Bolt M6×25 MTD-710-04919
...
79
Air Flow Shield MTD-951-11110
...
80
Bolt M6×10 MTD-710-04940
...
81
FLYWHEEL MTD-751P12416A
...
82
COOLING FAN MTD-951-10909B
...
83
Pulley,Starter MTD-951-10911
...
84
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
85
Bolt M6×12 MTD-710-04915
...
87
BLOWER HOUSING MTD-951-12417
...
88
FLAT WASHER MTD-736-04455B
...
89
Bolt M6×10 MTD-710-04974
...
90
Recoil Starter Assembly MTD-951-12418
...
103
Bolt M6×12 MTD-710-04915
...
129
Blower Housing Shield MTD-951-11109
