Troy-Bilt 270-V0 Engine Troy-Bilt OHV Engine

Model: 270-V0 Engine

Back To Assemblies

Save Part Not Listed?
product name

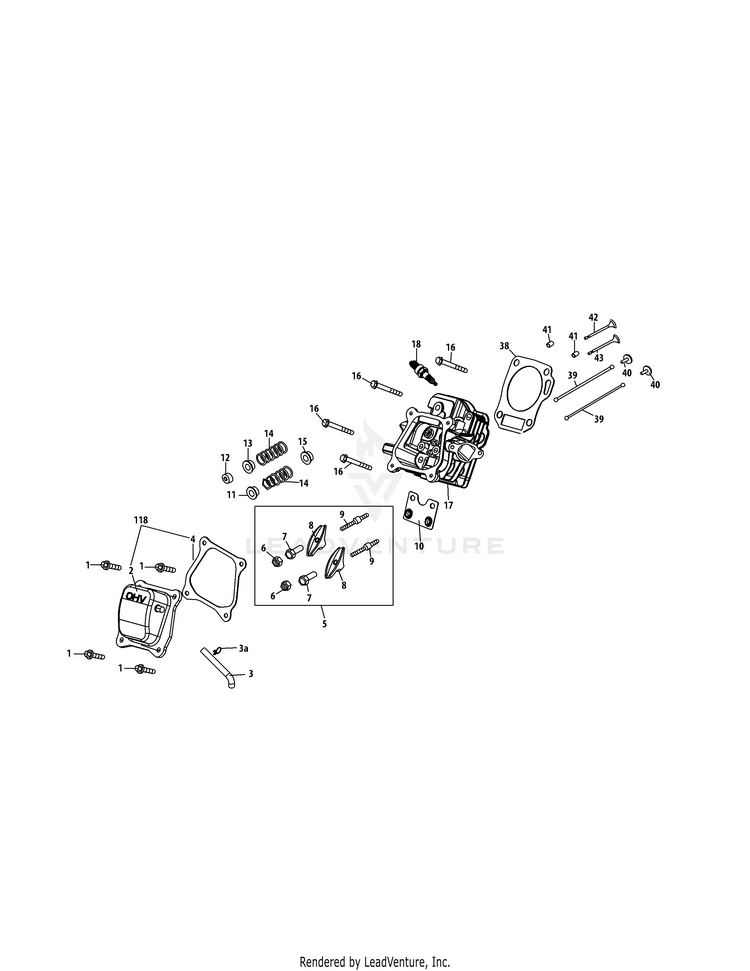

270-V0 Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
CYLINDER HEAD COVER MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
3a
Hose Clamp MTD-726-04101
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
6
Nut, Pivot Locking MTD-751-11124
...
7
Adjusting Nut , Valve MTD-751-11123
...
8
Rocker Arm MTD-951-11893
...
9
Bolt, Pivot MTD-710-04902
...
10
Push Rod Guide MTD-951-11895
...
11
Retainer, In.Valve Spring MTD-951-12000
...
12
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
13
Retainer, Ex.Valve Spring MTD-951-12003
...
14
VALVE SPRING MTD-751P12004A
...
15
Intake Valve Seal MTD-951-11894
...
16
Bolt M8×55 MTD-710-04933
...
17
Cylinder Head Assembly (Incl. 4, 6-10, 12-17, 20, 25, 26, 38, 41-43) MTD-951-10799
...
18
Spark Plug MTD-951-10292A
...
38
CYLINDER HEAD GASKET MTD-951-11572
...
39
Push Rod Kit MTD-951-10648
...
40
Tappet MTD-951-11899
...
41
Dowel Pin 10×16 MTD-715-04108
...
42
Valve Kit MTD-951-10647A
...
43
Valve Kit MTD-951-10647A
...
118
Valve Cover Kit MTD-951-12626
...
xx
CYLINDER HEAD SERVICE KIT Not shown (Incl. 4, 15, 16, 38) MTD-951-10819
...
xx
GASKET KIT (EXTERNAL) Not shown (Incl. 2, 4, 25-27, 29, 68) MTD-951-12120
...
xx
Gasket Kit - Complete Not shown (Incl. 4, 20, 25-27, 29, 38, 52, 53, 62, 66, 68, 70) MTD-951-12121A
