product name

Troy-Bilt 265-JU-12 Engine Troy-Bilt OHV Engine

Model: 265-JU-12 Engine

Save Part Not Listed?
product name

265-JU-12 Carburetor

...
...
25
Stud M6×110 MTD-710-05101
...
26
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
27
INSULATOR MTD-751P11568A
...
28
CARBURETOR GASKET MTD-751P12005B
...
29
PRIMER MTD-951-10639B
...
29
Primer Bulb MTD-951-11824
...
30
Carburetor Assembly MTD-951-12704B
...
31
CARBURETOR HOSE CLAMP MTD-951-11700A
...
32
Fuel Hose MTD-951-12613
...
33
Fuel Line Kit MTD-951-12012
...
34
CARBURETOR GASKET PLATE MTD-951-11571
...
35
Nut MTD-712-04213
...
36
Air Cleaner Housing MTD-951-10962
...
37
Air Cleaner Assembly MTD-951-10961
...
38
Self-Tapping Bolt M4.2×45 MTD-710-05275
...
111
Carburetor Kit (Incl. k,q,r,s,t,u,v,w,y,aa) MTD-951-14033
...
a
Choke Control Lever Screw MTD-710-05468
...
b
Washer MTD-736-04598
...
c
CHOKE CONTROL LEVER MTD-951-12811
...
d
Choke Shaft MTD-NA
...
e
Choke Plate MTD-NA
...
f
Throttle Shaft MTD-NA
...
g
Throttle Plate MTD-NA
...
h
Screw M3×6 MTD-710-05469
...
i
LOCK WASHER MTD-736-04638A
...
j
Gasket, Throttle Plate MTD-NA
...
k
Idle Jet Assembly (0.34) MTD-NA
...
l
Idle Speed Adjusting Screw MTD-NA
...
m
Primer Pipe MTD-NA
...
n
PRIMER HOSE MTD-951-12019A
...
o
Hose Clamp MTD-951-11906
...
p
Carburetor Body MTD-NA
...
q
Float Pin MTD-NA
...
r
Emulsion Tube (P18-019) MTD-NA
...
s
FLOAT NEED MTD-951-12875
...
t
Main Jet (#73H) MTD-NA
...
u
Needle Valve Spring MTD-NA
...
v
FLOAT MTD-731P09132A
...
w
Fuel Bowl O-Ring MTD-951-11589
...
x
Fuel Bowl MTD-NA
...
y
FUEL BOWL GASKET MTD-951-11348A
...
z
Fuel Bowl Mounting Bolt MTD-710-04945
...
aa
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
ab
FUEL DRAIN PLUG MTD-710-04938

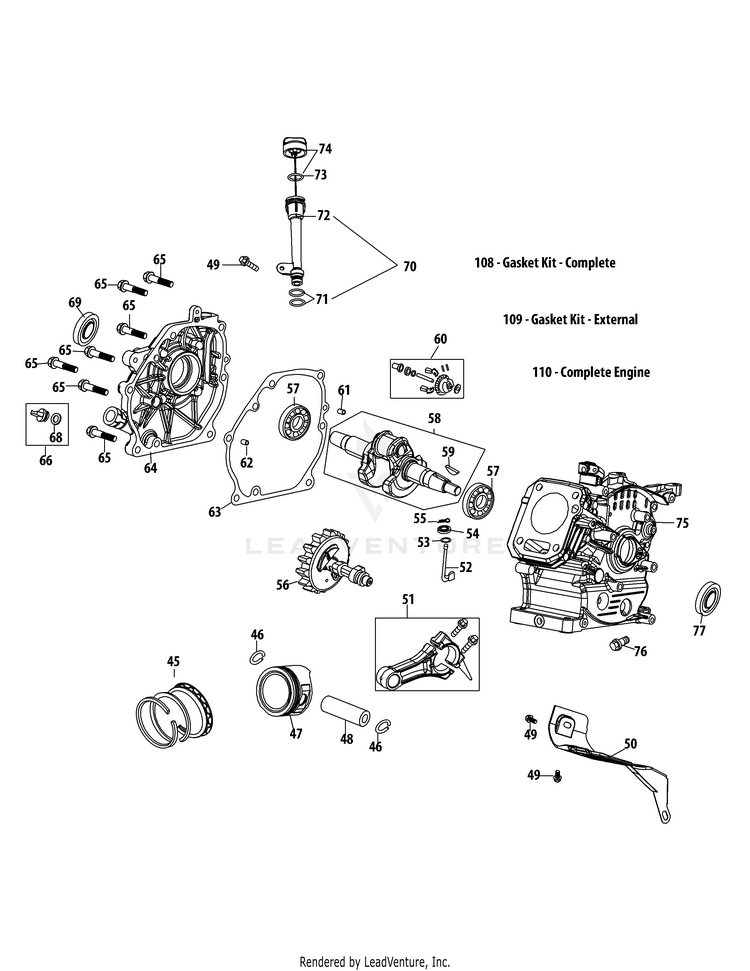

265-JU-12 Crankcase

...
...
45
Piston Ring Set MTD-951-11688
...
46
PISTON PIN SNAP RING MTD-951-11632
...
47
Piston MTD-951-11900
...
48
Piston Pin MTD-951-11901
...
49
Bolt M6×12 MTD-710-04915
...
50
Air Shield MTD-951-11113
...
51
CONNECTING ROD MTD-751P11573A
...
52
Governor Arm Shaft MTD-951-14053
...
53
Washer 5.2×1.9 MTD-736-04461
...
54
OIL SEAL MTD-951-11902A
...
55
Cotter Pin MTD-714-04078
...
56
CAMSHAFT ASSEMBLY MTD-951-11575
...
57
Radial Ball Bearing, 6205 MTD-951-11369
...
58
Crankshaft Kit (Incl. 57-59,69,77) MTD-951-12102
...
59
WOODRUFF KEY MTD-751P10307A
...
60
GOVERNOR GEAR MTD-751P11576A
...
61
DOWEL PIN 9 X 14 MTD-715-04096A
...
62
DOWEL PIN 9 X 14 MTD-715-04096A
...
63
CRANKCASE GASKET MTD-751P11371B
...
64
CRANKCASE COVER MTD-751P17706
...
64
Crankcase Cover Kit (Incl. 57,63-69) MTD-951-11246
...
65
Bolt M8×32 MTD-710-04932
...
66
Oil Filler Plug Assembly MTD-951-11283
...
68
O-RING 15.8 x 2.5 MTD-951-11577
...
69
OIL SEAL MTD-751P11368A
...
70
Oil Fill Tube Assembly MTD-951-11913
...
71
Oil Fill Tube O-Ring MTD-951-11381
...
72
Dipstick Assembly MTD-631-05020AP
...
73
Oil Fill Tube O-Ring MTD-951-11904
...
74
Dipstick Assembly MTD-951-12482
...
75
CRANKCASE KIT (Incl. 54,57,69,75,77) MTD-951-12650
...
75
Short Block Assembly (Incl.6,22,26-28,39,41,42,45-48,51-69,75-77) MTD-951-12648
...
76
Oil Drain Plug MTD-951-12514A
...
77
OIL SEAL MTD-751P11370A
...
108
Gasket Kit - Complete (Incl. 6,22,26-28,34,39,53,54,63,69,77) MTD-951-12028
...
109
Gasket Kit - External (Incl. 6,22,26-28,34) MTD-951-12026A
...
110
Complete Engine MTD-952Z265-JU-12

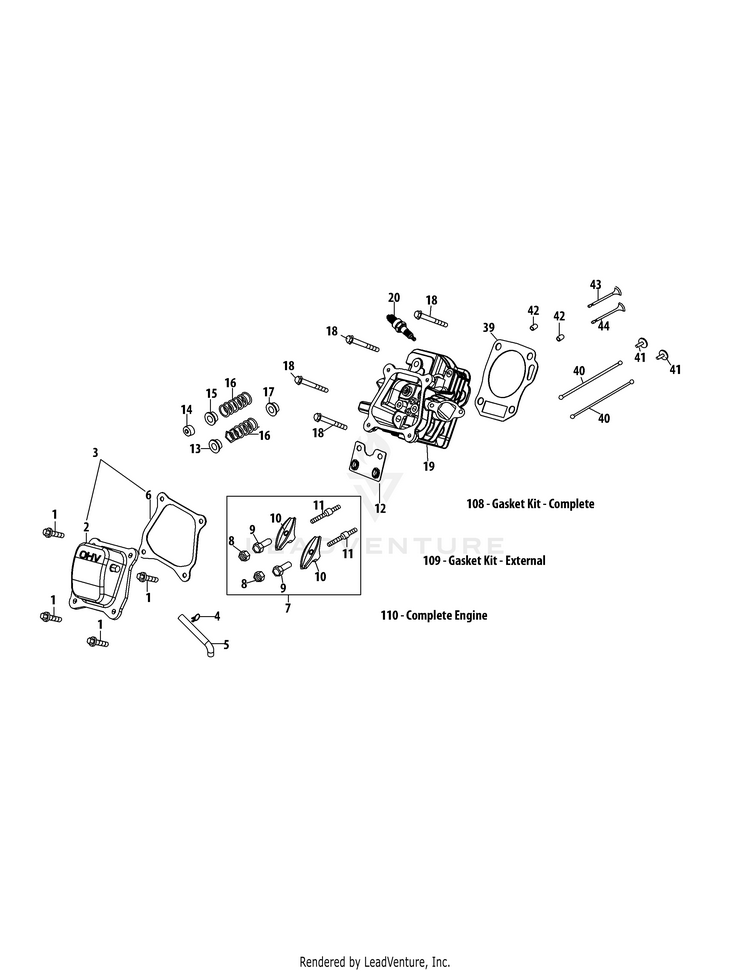

265-JU-12 Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
CYLINDER HEAD COVER MTD-951-11054B
...
3
Valve Cover Kit MTD-951-12626
...
4
Breather Hose Clamp MTD-726-04101
...
5
Breather Hose MTD-731-07059
...
6
VALVE COVER GASKET MTD-751P11565B
...
7
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
8
Nut, Pivot Locking MTD-751-11124
...
9
Adjusting Nut ,Valve MTD-751-11123
...
10
Rocker Arm MTD-951-11893
...
11
Bolt, Pivot MTD-710-04902
...
12
Push Rod Guide MTD-951-11895
...
13
Valve Spring Retainer (Intake) MTD-951-12000
...
14
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
15
Valve Spring Retainer (Exhaust) MTD-951-12003
...
16
VALVE SPRING MTD-751P12004A
...
17
Valve Seal (Intake) MTD-951-11894
...
18
Bolt M8×55 MTD-710-04933
...
19
Cylinder Head Assembly (Incl. 6-17,19,22,26,28,39,43,44) MTD-951-14195
...
20
Spark Plug MTD-951-10292A
...
39
Gasket, Cylinder Head MTD-951-11898
...
40
Push Rod Kit MTD-951-10648
...
41
Tappet MTD-951-11899
...
42
Dowel Pin 10×16 MTD-715-04108
...
43
Valve Kit MTD-951-10647A
...
44
Valve Kit MTD-951-10647A
...
108
Gasket Kit - Complete (Incl. 6,22,26-28,34,39,53,54,63,69,77) MTD-951-12028
...
109
Gasket Kit - External (Incl. 6,22,26-28,34) MTD-951-12026A
...
110
Complete Engine MTD-952Z265-JU-12

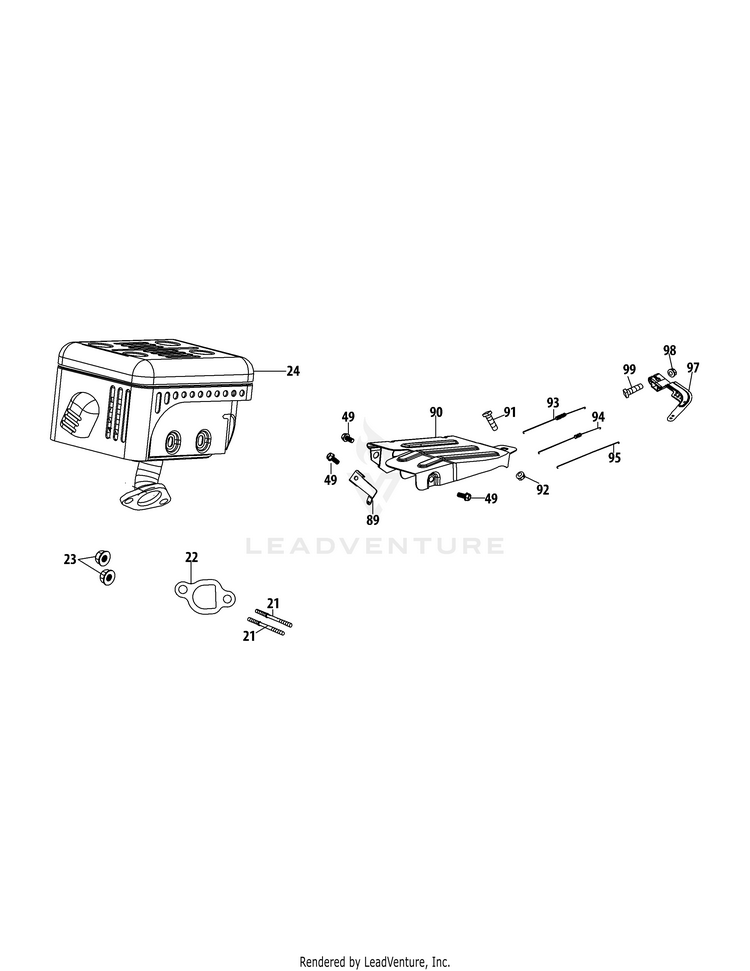

265-JU-12 Muffler

...
...
21
Stud M8×36 MTD-710-04911
...
21
Muffler Stud Assembly MTD-951-10657
...
22
MUFFLER GASKET MTD-751P11289A
...
23
Nut, M8 MTD-712-04214
...
24
MUFFLER ASSEMBLY MTD-951-12010A
...
49
Bolt M6×12 MTD-710-04915
...
89
Covernor Spring Bracket MTD-951-11104
...
90
Governor Shield MTD-951-12016
...
91
Bolt M6×28 MTD-710-04943
...
92
Nut M6 MTD-712-05015
...
93
Governor Spring MTD-951-12100
...
94
THROTTLE SPRING MTD-751P10664A
...
95
THROTTLE LINKAGE MTD-751P10665A
...
97
Governor Arm MTD-951-11106
...
98
Nut M6 MTD-712-05015
...
99
Governor Arm Bolt MTD-710-04908

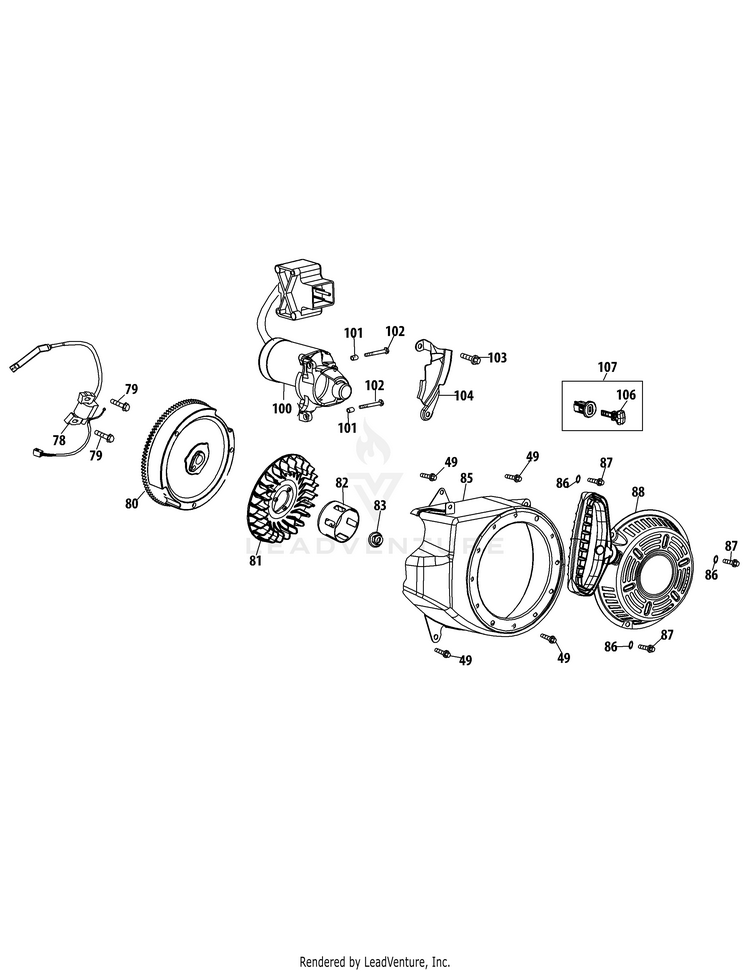

265-JU-12 Starter & Flywheel

...
...
49
Bolt M6×12 MTD-710-04915
...
78
Ignition Coil Assembly MTD-951-12013
...
79
Bolt M6×25 MTD-710-04919
...
80
FLYWHEEL MTD-751P12416A
...
81
COOLING FAN MTD-951-10909B
...
82
Starter Cup MTD-951-10911
...
83
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
85
FAN COVER ASSEMBLY MTD-951-12644
...
86
FLAT WASHER MTD-736-04455B
...
87
Bolt M6×10 MTD-710-04974
...
88
Recoil Starter MTD-951-14152
...
100
Electric Starter MTD-951-10645A
...
101
DOWEL PIN MTD-715-04088A
...
102
Bolt M6×32 MTD-710-05182
...
103
Bolt M6×12 MTD-710-04915
...
104
Blower Housing Shield MTD-951-11109
...
106
Ignition Key MTD-951-10630
...
107
Key Switch MTD-951-10637
...
xx
120V Plug Kit MTD-951-05102
