product name

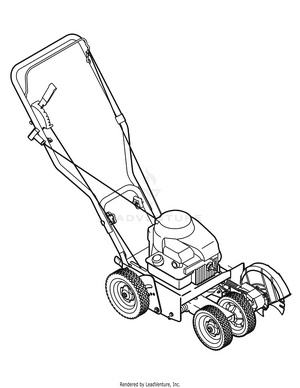

Troy-Bilt 25B-554E066 (2011) Edger

Model: 25B-554E066 (2011)

Save
Part Not Listed?Part Not Listed?

product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338

...
xx
Pre Filter MTD-NA

...
xx

...
xx

...
xx
23" CONTROL CABLE MTD-946-04035

...
xx
Wheel Adjustment Cable MTD-946-04036

...
xx
Depth Index Lever MTD-781-0742-0637

...
xx
Curb Height Adjustment Lever MTD-687-02022

...
xx
Flywheel Pulley MTD-756-1150A

...
xx
Drive Belt MTD-954-04032B

...
xx
EDGER BLADE GUARD (W/LABEL) MTD-731P05064

...
xx
Tri-Star Blade MTD-781-0748-0637

...
xx
Edger Blade MTD-781-0080-0637

...
xx
Handle Knob MTD-720-04072A

...
xx
Wheels - Front MTD-734-1264

...
xx
Wheels - Rear MTD-734-1268

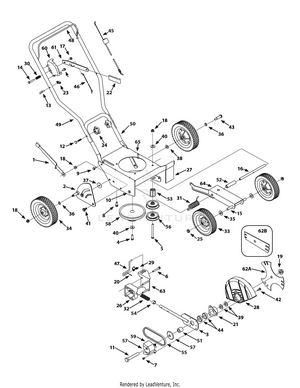

General Assembly

...
...
1
Curb Height Adjustment Lever MTD-687-02022

...
2
Curb Height Adjuster Plate MTD-687-02125A

...
3
Blade Plate Assembly MTD-687-02126

...
4
Screw 3/8-24 x 1.25 MTD-710-0191

...
5
Screw 3/8-16 x 4.00 MTD-710-0411


...
7
Self-tapping Screw, 1/4-20 MTD-710-0599

...
8
Screw, 3/8-16 MTD-710-0654A

...
9
Hex Screw, 5/16-12 MTD-710-0726

...
10
Hex Screw 3/8-16 x .625 MTD-710-0870

...
11
Hex Screw, 5/8-18 x 4.0 MTD-710-1143A

...
12
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174

...
13
Rope Guide (Eye Bolt) MTD-710-1205

...
14
Hex Screw, 5/16-18 MTD-710-3180

...
15
Axle Shaft .50x6.65 MTD-711-04361

...
16
Frame Spacer .50x9.25 MTD-711-04440

...
17
Lock Flange Nut, 5/16-18 MTD-712-04063

...
18
Flange Nut 3/8-16 MTD-712-04065

...
19

...
20
Clevis Pin 3/32 x .625 MTD-714-3010

...
21
Bearing Cup MTD-718-04012

...

...
23
Wing Nut MTD-720-0279

...
24
Star Knob MTD-720-04072A

...
25
Push Cap 1/2" rod MTD-726-0299

...
26
Bearing Block MTD-931-04207

...
27
Debris Guard MTD-731-05063

...
28
EDGER BLADE GUARD (W/LABEL) MTD-731P05064

...
29
Double Torsion Spring MTD-732-0188A

...
30
Compression Spring MTD-932-0369

...
31
Torsion Spring MTD-732-04045

...
32
Compression Spring MTD-932-04169

...
33
Wheel 7 x 1.75 T-Tread MTD-734-1264

...
34
Wheel 8 x 1.75 T-Tread MTD-734-1268

...
35
Fl-Wash. 17/32" I.D. MTD-736-0179

...
36
Wave Washer,.531 ID x.781 OD MTD-736-0232

...
37
Flat Washer, .385 x 1.5 x .075 MTD-736-0234

...
38
Flat Washer .385 x 1.0 x .135 MTD-736-0258

...
39
Flat Washer .635x1.24x.181 MTD-736-04088

...
40
Bell Washer, .396 x 1.14 x .095 MTD-736-0452

...
41
Shoulder Screw, 3/8-16 MTD-738-04149

...

...
43
Shoulder Screw, 3/8-16 MTD-738-0929

...
44
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A

...
45
23" CONTROL CABLE MTD-946-04035

...
46
Wheel Adjustment Cable MTD-946-04036

...
47
Blade Adjustment Rod MTD-747-04110A

...
48
BLADE CONTROL BAIL MTD-747-0976B

...
49
UPPER HANDLE MTD-749-04183A

...
50
LOWER HANDLE MTD-749-04234

...
51
Spacer, .63 x 1.12 x 1.06 MTD-950-04105

...
52

...
53
Pulley Mount Spacer MTD-950-04142

...
54
Spacer, .64 x.88 x .50 MTD-750-0547


...
56
Flat Idler Pulley, 2.5 OD MTD-756-04148

...
57

...
58
Combination Flywheel Pulley MTD-756-1150A

...
59

...
60
Depth Index Bracket MTD-781-0741A

...
61
Depth Index Lever MTD-781-0742-0637

...
62A
Tri-Star Blade MTD-781-0748-0637

...
62B
Edger Blade MTD-781-0080-0637

...
63
Bracket Plate MTD-787-01081A-0637

...
64
Dual Wheel Bracket MTD-787-01239-0638

...
65
FRAME (BLACK JACK) MTD-787-01304-0691

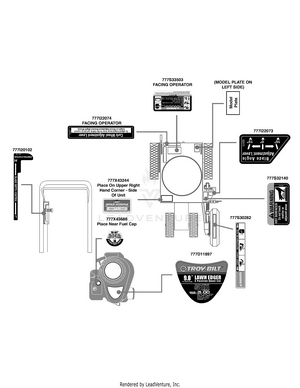

Label Map

...
...
777I22074
LABEL-FRAME REAR MTD-777I22074

...
777I20102
LABEL DEPTH CNTRL MTD-777I20102

...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244

...
777X43688
LABEL-ETHANOL MTD-777X43688

...
777D11897
LABEL-EDGER SHROUD TROY MTD-777D11897

...
777S30282
LABEL-BLADE COVER MTD-777S30282

...
777S32140
LABEL-MUFFLER MTD-777S32140

...
777I22073
LABEL-FRAME LH MTD-777I22073

...
777S33503
LABEL-EDGR:FRM:DNGR/SPRK MTD-777S33503
...
...
...
