Troy-Bilt 25A-592A063 3.75hp (2003) Edger

Model: 25A-592A063 3.75HP (2003)

Save
Part Not Listed?Part Not Listed?

product name

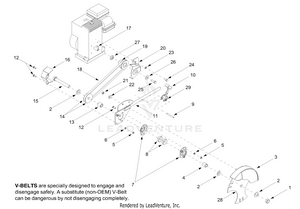

Drive Assembly

...
...
1
Hex Jam Nut, 5/8-18 MTD-712-0413

...
2
Bell Washer, .64 x 1.25 x .18 MTD-736-0317

...
3
Blade Guard MTD-781-0076

...
4
Sleeve .90" Lg. MTD-950-0118

...
5
Nut, Hex, 1/4-20 MTD-912-0287

...
6
Lock Washer MTD-936-0329

...
7
Bearing Housing MTD-05034A

...
8

...
9
Spirol Pin, 1/4 x 2.0 MTD-715-0121

...
10
Adjustment Lever Ass'y. MTD-981-0093

...
11
Spindle Plate/Shaft Assembly MTD-781-0078

...
12
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
13
Spacer, .635 x .88 x 1.03 MTD-750-0229

...
14

...
15
BOLT-HEX 5/8-18X4 MTD-710-3151A

...
16

...
17
Square Key, 3/16 x .75 MTD-714-0122

...
18

...
19
Engine Pulley, 3/8 x .75 x 2.38 MTD-756-0327B

...
20
Engine Pulley Belt Guard MTD-687-0100

...
21
HEX NUT 5/16-18 MTD-712-3010

...
22
Belleville Washer, .340 x .872 MTD-736-0242

...
23
LOCK WASHER 5/16 MTD-936-0119

...
24
Hex Cap Screw, 5/16-24 x .625 MTD-710-0237

...
25
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039

...
26
Flat Washer, .385 x 1.0 x .135 MTD-736-0258

...
27
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160

...
28
Triplex Edger Blade, 9.0 MTD-781-0748

...
29
Double-torsion Spring MTD-732-0188A

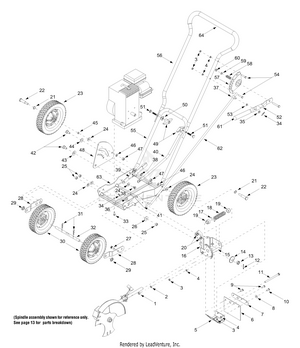

General Assembly

...
...
1
HEX NUT 5/16-18 MTD-712-3010

...
2
LOCK WASHER 5/16 MTD-936-0119

...
3
Nut, Hex, 1/4-20 MTD-912-0287

...
4
Lock Washer MTD-936-0329

...
5
Debris Deflector MTD-781-0095

...
6
Debris Guard MTD-731-0725

...
7
Flap Bracket, 1.12 x 5.5 MTD-781-0087

...
8
Flat Washer, .283 x .75 x .030 MTD-736-0342

...
9
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015

...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
11
Hex Screw, 5/16-18 x 4.5 MTD-710-0402

...
12
Cotter Pin, 1/8 x 1.0 MTD-714-0115

...
13
Hex Slotted Nut 1/2-20 Thd. MTD-912-0114

...
14
Sphere Washer, .531 x 1.6 x .045 MTD-736-0112

...
15
Spacer, .38 x .50 x 3.75 MTD-711-0386

...
16
Spindle Pivot Bracket Assembly MTD-781-0090

...
17
Spirol Pin, 1/4 x 1.25 MTD-715-0143

...
18
Compression Spring MTD-732-0187

...
19
Shoulder Spacer, .635 x .620 MTD-711-0379

...
20
Self-tapping Screw, 5/16-18 x .50 MTD-710-0607

...
21
WAVE WASHER MTD-936-0504

...
22
Shoulder Bolt .498" Dia. MTD-938-0108

...
23
Wheel w/ Ball Bearing, 8 x 1.75 MTD-734-1268

...
24
Spring Washer, .401 x .871 x .063 MTD-736-0105

...
25
Hex Nut, 3/8-24 MTD-712-0241

...
26
Bell Washer, .396 x 1.14 x .095 MTD-736-0452

...
27
Rd Hd Bolt 3/8-24 x .89 MTD-710-0793

...
28
Front Axle Arm MTD-781-1069

...
29
Cap Speed Nut, 1/2 MTD-726-0221

...
30
Wheel w/ Ball Bearing, 7 x 1.75 MTD-734-1264

...
31
Internal Cotter Pin, .08 x 1.42 MTD-714-0101

...
32
Front Axle, .50 x 7.98 MTD-738-1176

...
33
Self-tapping Screw, 3/8-16 x 1.0 MTD-710-0654A

...
34
Internal Cotter Pin, .072 x 1.0 MTD-714-0104

...
35
Flat Washer, .330 x .630 x .0635 MTD-736-0264

...
36
Flat Washer, .406 x .810 x .051 MTD-736-3050

...
37
Adjustment Ferrule MTD-711-0392

...
38
JAM LOCK NUT MTD-712-0266A

...
39
Spring Adj. Lever MTD-932-0552

...
40
Strut 15.91" Lg. MTD-749-0941-0637

...
41
Spindle Extension Arm MTD-781-0075

...
42
Shld. Bolt .5" Dia. MTD-938-0258

...
43
Bell Washer, .51 x 1.14 x .040 MTD-736-0255

...
44
FLAT WASHER .510 x .995 MTD-736-0272

...
45
Spacer, .380 ID x .625 OD x .21 MTD-950-0535

...
46
Lock Washer, 3/8 MTD-736-0169

...
47
Hex Nut, 3/8-16 MTD-712-0798

...
48
Curb Height Adjustment Plate MTD-781-0100

...
49
STAR KNOB 5/16-18 MTD-720-04072A

...
50
Saddle Washer, .320 x .93 MTD-736-0451

...
51
Carriage Bolt, 5/16-18 x .75 MTD-710-1174

...
52
Engagement Handle MTD-749-0666-0637

...
53
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
54
Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103

...
55
Lower Handle MTD-749-0937-0637

...
56
Upper Handle (Loop Style) MTD-749-0936A

...
57
Depth Adjustment Bracket MTD-781-0081

...
58

...
59
Flat Washer, .344 x .62 x .030 MTD-736-0204

...
60
Hex Lock Nut, 5/16-18 MTD-912-0158

...
61
Foam Grip (Blade Clutch Lever) MTD-720-0283

...
62
Clutch Rod, 3/8 x 33.5 MTD-747-1164

...
63
Edger Base MTD-681-0044

...
64
Foam Grip (Upper Handle), 20 MTD-720-0297
...
...
...
