Troy-Bilt 25A-553F063 (2003) Edger

Model: 25A-553F063 (2003)

Back To Assemblies

Save Part Not Listed?
product name

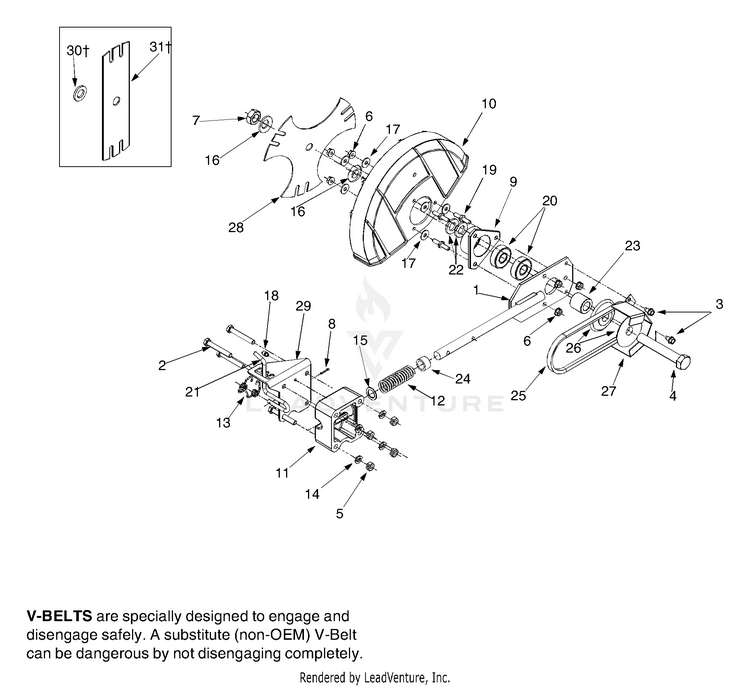

General Assembly

...
...
1
SERVICE KIT MTD-753-05727
...
2
Hex Screw, 5/16-18 MTD-710-0395
...
3
Self-tapping Screw, 1/4-20 MTD-710-0599
...
4
Hex Screw, 5/8-18 MTD-710-1143A
...
5
HEX FLANGE NUT MTD-712-3004A
...
6
LOCK NUT 1/4 MTD-912-3027
...
7
Jam Nut, 5/8-18 MTD-712-3056
...
8
Cotter Pin MTD-714-3010
...
9
Bearing Cup MTD-718-04012
...
10
SERVICE KIT MTD-753-05727
...
11
Bearing Block MTD-931-04207
...
12
COMPRESSION SPRING MTD-732-0187
...
13
Double Torsion Spring MTD-732-0188A
...
14
LOCK WASHER 5/16 MTD-936-0119
...
15
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
16
Bell Washer,.63 ID x 1.2 OD MTD-736-0317
...
17
Flat Washer,.260 x.72 MTD-736-3090
...
18
GREASE FITTING MTD-937-3000
...
19
PIN MTD-938-04025
...
20
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A
...
21
Blade Adjustment Rod MTD-747-04110A
...
22
Flat Washer MTD-736-04088
...
23
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
24
Spacer,.632 ID x.875 OD MTD-750-0547
...
25
V-Belt MTD-954-04032B
...
26
Sheave MTD-956-0449
...
27
Belt Guard MTD-781-0427-0637
...
28
Tri Star Blade MTD-781-0748
...
29
Bracket Plate MTD-787-01081A-0637
...
30
Flat Washer If so equipped MTD-736-04088
...
31
Blade, Edger If so equipped MTD-781-0080-0637
