Troy-Bilt 25A-553F063 (2003) Edger

Model: 25A-553F063 (2003)

Back To Assemblies

Save Part Not Listed?
product name

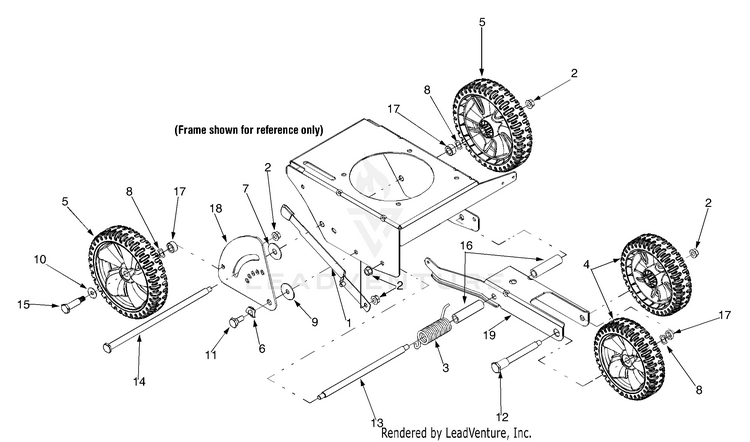

Wheels

...
...
1
Curb Height Adjustment Lever MTD-687-02022
...
2
Hex Flange Nut 3/8-16 MTD-912-0431
...
3
Torsion Spring MTD-732-04045
...
4
Wheel 7 x 1.75 MTD-734-1264
...
5
Wheel 8 x 1.75 MTD-734-1268
...
6
Spring Washer,.500 x 1.00 MTD-736-0182
...
7
Flat Washer,.51 ID x 1.5 OD MTD-736-0208
...
8
Wave Washer,.531 ID x.781 OD MTD-736-0232
...
9
Washer,.385 x 1.5 MTD-736-0234
...
10
Flat Washer,.510 x 1.00 MTD-736-0326
...
11
Shoulder Screw,.50 x.27 MTD-738-0380
...
12
SHOULDER SCREW MTD-938-04036
...
13
Shoulder Screw,.50 x 9.36, 3/8-16 MTD-738-04037
...
14
SHOULDER SCREW MTD-738-04041
...
15
Shoulder Screw,.498 x 2.045 MTD-738-0527
...
16
Spacer,.525 x.688 MTD-750-04129
...
17
Spacer,.505 ID x.88 OD MTD-750-0664
...
18
ADJUSTER-CURB HEIGHT MTD-781-0100
...
19
WHEEL BRACKET MTD-787-01074-0637
