Troy-Bilt 24BG57M3066 LS27 (2010) Log Splitter

Model: 24BG57M3066 Log Splitter (2010), LS27

Back To Assemblies

Save Part Not Listed?
product name

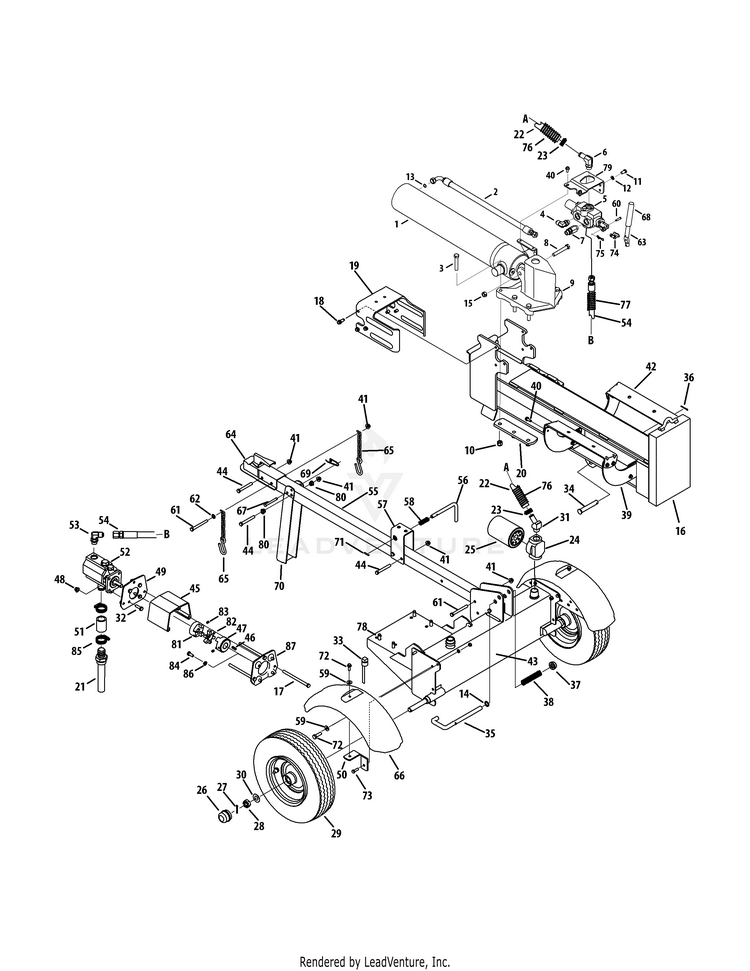

LS27TB General Assembly Troy-Bilt OHV

...
...
1
Hydraulic Cylinder MTD-918-04713
...
2
Hydraulic Tube MTD-727-04362
...
3
Hex Cap Screw, 1/2-20 x 2.75 MTD-710-1018
...
4
HYDRAULIC FITTING MTD-737-04320
...
5
LOGSPLITTER VALVE MTD-718-04706P
...
6
HYDRAULIC FITTING MTD-737-04307
...
7
HYDRAULIC FITTING MTD-737-04309
...
8
Hex Cap Screw, 1/2-13 x 3.25 MTD-710-1806
...
9
Wedge Assembly MTD-719-04529
...
10
Hex Lock Nut, 1/2-20 MTD-912-3058
...
11
Hex Cap Screw, 3/8-16 x .75 MTD-710-0216
...
12
L-Wash. 3/8" I.D." MTD-736-0169
...
13
O-RING MTD-721-0330
...
14
Flat Washer, .635 x.93 x.06 MTD-936-0116
...
15
Hex Lock Nut, 1/2-13 MTD-712-3022
...
16
BEAM ASSEMBLY MTD-681-04112A-0637
...
17
Hex Screw, 5/16-18 x 4.00 MTD-710-0190
...
18
SCREW 3/8-16 x 1 MTD-710-04683C
...
19
Dislodger Bracket MTD-781-04426-0638
...
20
Back Plate MTD-781-0790A-0637
...
21
INLET FILTER MTD-737-04308
...
22
Return Hose, 3/4 x 44 MTD-727-0443
...
23
Hose Clamp, 5/8 MTD-726-0132
...
24
Filter Housing use with 737-0312 Fitting 3/4-14 NPTF MTD-753-06643
...
24
Filter Housing use with 737-04323 Fitting 1 1/16-12 Orb x .75 MTD-737-04267
...
25
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
26
Hub Cap MTD-734-0873
...
27
Cotter Pin MTD-714-0162
...
28
Slotted Nut, 3/4-16 MTD-712-0359
...
29
Complete Wheel Assembly MTD-634-0186
...
29
WHEEL ASSEMBLY GRAY 16X4.8X8 Not shown MTD-634-0186
...
29
Dust Seal Not shown MTD-921-0168
...
29
Cone Bearing Not shown MTD-941-04298
...
30
Washer, Flat, .760 ID x 1.5 OD MTD-736-0351
...
31
ADAPTER MTD-737-0312
...
31
Hydraulic Fitting, 1 1/16-12 Orb x .75 MTD-737-04323
...
32
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
33
Vented Dipstick MTD-737-0348A
...
34
Clevis Pin MTD-711-05169
...
35
Lock Rod MTD-747-04983
...
36
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
37
Push Cap MTD-726-0214
...
38
Compression Spring MTD-732-0583
...
39
Log Tray Bracket MTD-781-04293-0637
...
40
SCREW 5/16-18 x .750 MTD-710-04484
...
41
Flange Lock Nut, 3/8-16 MTD-712-04065
...
42
Log Tray MTD-781-04179-0637
...
43
Frame Assembly MTD-681-04113-0637
...
44
Hex Bolt, 3/8-16 x 3 MTD-710-0521
...
45
Coupling Shield MTD-719-0278
...
46
Square Key, 3/16 x .75 MTD-714-0122
...
47
Coupling, .750 MTD-718-04474
...
48
Flange Lock Nut, 5/16-18 MTD-712-04063
...
49
Rear Coupling Support Bracket MTD-781-0097-0637
...
50
Fender Mounting Bracket MTD-781-1024A-0637
...
51
Hose MTD-727-04356
...
52
Gear Pump MTD-918-04127
...
53
HYDRAULIC FITTING MTD-737-04320
...
54
High Pressure Hydraulic Hose MTD-727-04288
...
55
Tongue Assembly MTD-781-04424-0638
...
56
Latch Rod MTD-747-1261
...
57
Latch MTD-781-1045-0638
...
58
Compression Spring MTD-932-3127
...
59
Flat Washer MTD-736-0371
...
60
Clevis Pin MTD-711-04585
...
61
Hex Cap Screw, 3/8-16 x 3.50 MTD-710-3085
...
62
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
63
CONTROL VALVE HANDLE MTD-747-04539A
...
64
Hitch Coupling Assembly MTD-681-04030
...
65
Chain MTD-713-0433A
...
66
Fender MTD-731-2496A
...
67
Clevis Pin MTD-911-0813
...
68
Grip MTD-720-04088
...
69
Spring Pin MTD-732-0194
...
70
Jack Stand MTD-781-04430-0638
...
71
Spiral Pin MTD-715-0120
...
72
Self-Tapping Screw, 5/16-18 x 0.875 MTD-710-0650
...
73
Self-Tapping Screw, 5/16-18 x 1.00 MTD-710-0602
...
74
Valve Handle Link MTD-913-04036
...
75
Cotter Pin, Bow Tie MTD-714-04040
...
76
Hose Guard, 44" MTD-781-0526A
...
77
Hose Guard, 48" MTD-781-0538A
...
78
SCREW 3/8-16 x 1 MTD-710-04683C
...
79
Outer Valve Bracket MTD-781-04418-0637
...
80
Plastic Bushing, .380 ID MTD-941-0475
...
81
Coupling, .500 MTD-718-04392
...
82
Spider Bushing MTD-735-04103
...
83
SCREW 1/4-20 x .38 MTD-710-1842A
...
84
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
85
Hose Clamp MTD-726-0174
...
86
Lock Washer, 5/16 MTD-936-0119
...
87
Front Coupling Support Bracket MTD-781-0098A-0637
