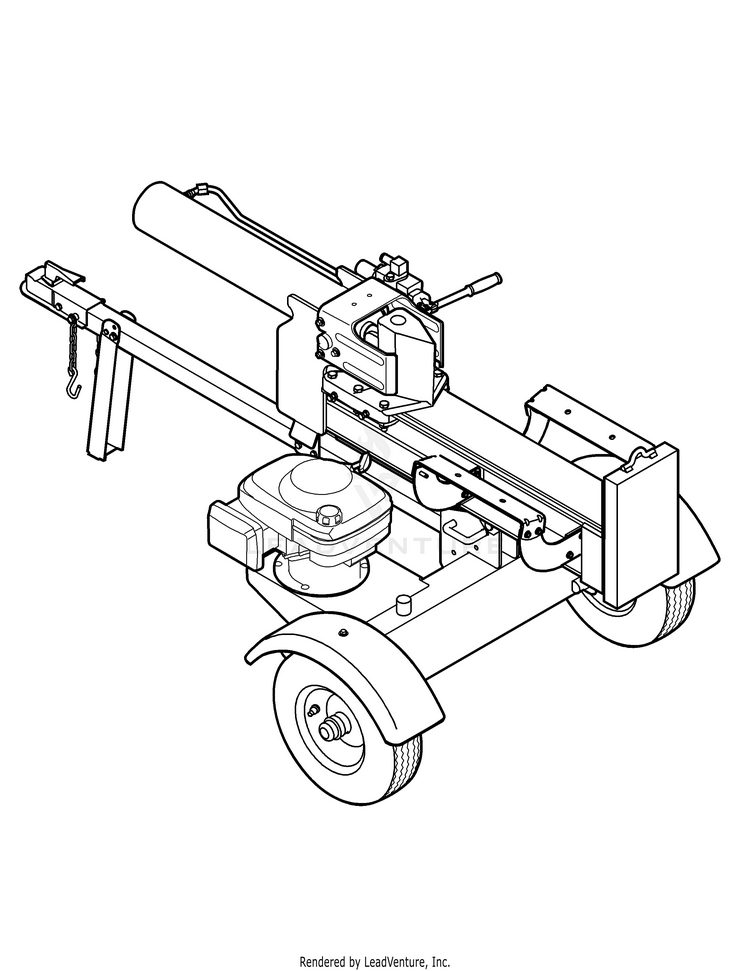

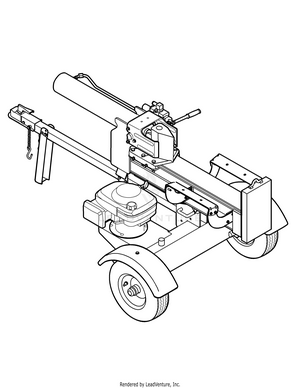

Troy-Bilt 24BF572B766 LS27 (2009) LS27 Log Splitter

Model: 24BF572B766 LS27 Log Splitter

Save
 Part Not Listed?Part Not Listed?
product name

-SAFETY RECALL

...

No Parts Available for this Schematic

.Quick Reference

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-17211-ZL8-023
...
xx
Fuel Filter MTD-NA
...
xx
Cylinder Assembly MTD-918-0769A
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
Inlet Filter MTD-737-04093
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Flexible Coupling MTD-918-04145
...
xx
Adjustable Gibbs MTD-781-0351
...
xx
CONTROL VALVE HANDLE MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain Hitch MTD-713-0433A
...
xx
Wheel Assembly MTD-634-0186
...
xx
Hub Cap MTD-734-0873

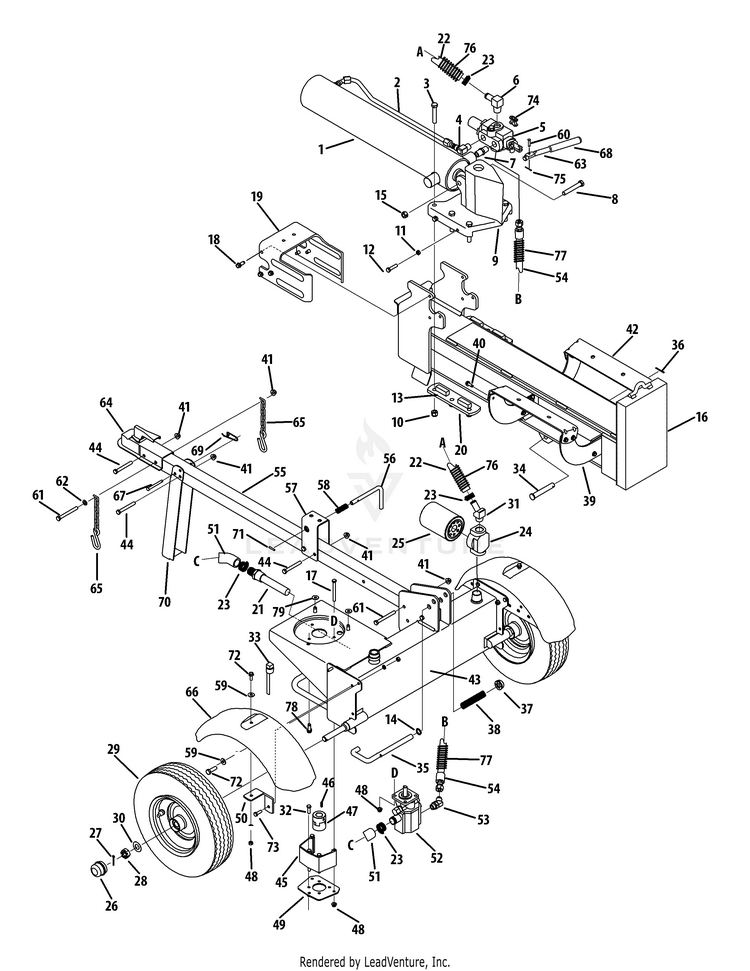

General Assembly

...
...
1
Hydraulic Cylinder MTD-918-0769A
...
1
Kit Seal 4.5" for XINGHUI cylinder See Service Kit 753-05607 MTD-953-05607
...
1
Kit Seal 4.5" for ENERGY cylinder See Service Kit 753-05608 MTD-953-05608
...
2
Hydraulic Tube MTD-727-04166
...
3
Hex Cap Screw, 1/2-20 x 2.75 MTD-710-1018
...
4
90 Degree Solid Adapter MTD-737-0192
...
5
Control Valve MTD-918-0481A
...
6
Return Elbow MTD-737-0153
...
7
Nipple Pipe, 1/2-14 MTD-737-0238
...
8
Hex Cap Screw, 1/2-13 x 3.25 MTD-710-1806
...
9
Wedge Assembly MTD-719-0550A
...
10
Hex Lock Nut, 1/2-20 MTD-912-3058
...
11
Hex Jam Nut, 3/8-24 MTD-712-0711
...
12
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
13
Adjustable Gib MTD-781-0351
...
14
Flat Washer, .635 x.93 x.06 MTD-936-0116
...
15
Hex Lock Nut, 1/2-13 MTD-712-3022
...
16
Beam Assembly MTD-681-04071A-0637
...
17
Hex Screw, 5/16-18 x 3.25 MTD-710-3056
...
18
Hex Washer Screw, 3/8-16 x 1.0 MTD-710-0654A
...
19
Dislodger Bracket MTD-781-04426-0638
...
20
WEDGE PLATE MTD-781-0790A-0637
...
21
Inlet Filter MTD-737-04093
...
22
Return Hose, 3.4" ID x 44" Lg. MTD-727-0443
...
23
Hose Clamp, 5.8" MTD-726-0132
...
24
Filter Housing MTD-753-06643
...
25
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
26
Hub Cap MTD-734-0873
...
27
Cotter Pin MTD-714-0162
...
28
Slotted Nut, 3/4-16 MTD-712-0359
...
29
Wheel Assembly MTD-634-0186
...
29
WHEEL ASSEMBLY GRAY 16X4.8X8 Not shown MTD-634-0186
...
29
Dust Seal Not shown MTD-921-0168
...
29
Cone Bearing Not shown MTD-941-04298
...
30
Washer, Flat, .760 ID x 1.5 OD MTD-736-0351
...
31
Adapter, 3/4-14 MTD-737-0312
...
32
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
33
Vented Dipstick MTD-737-0348A
...
34
Clevis Pin MTD-711-1587
...
35
Lock Rod MTD-781-0690
...
36
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
37
Push Cap MTD-726-0214
...
38
Compression Spring MTD-732-0583
...
39
Log Tray Bracket MTD-781-04180-0637
...
40
SCREW 5/16-18 x .750 MTD-710-04484
...
41
Flange Lock Nut, 3/8-16 MTD-712-04065
...
42
Log Tray MTD-781-04179-0637
...
43
Frame Assembly MTD-981-04040A-0637
...
44
Hex Bolt, 3/8-16 x 3 MTD-710-0521
...
45
Coupling Shield MTD-719-0353
...
46
Square Key 3/16" x.75 MTD-714-0122
...
47
Coupling, Logsplitter (Incl. Parts Below) MTD-918-04145
...
47
Coupling, .500 Not shown MTD-718-04392
...
47
Coupling, .875 Not shown MTD-718-04395
...
47
Spider Bushing Not shown MTD-735-04103
...
47
SCREW 1/4-20 x .38 Not shown MTD-710-1842A
...
48
Flange Lock Nut, 5/16-18 MTD-712-04063
...
49
Rear Coupling Support Bracket MTD-781-0097-0637
...
50
MOUNTING BRACKET MTD-781-1024A-0637
...
51
Hose MTD-727-04130
...
52
Gear Pump MTD-918-04127
...
53
45 Degree Elbow Fitting MTD-737-0329
...
54
High Pressure Hydraulic Hose MTD-727-0502
...
55
Tongue Assembly MTD-781-0788-0638
...
56
Latch Rod MTD-747-1261
...
57
Latch MTD-781-1045-0638
...
58
Compression Spring MTD-932-3127
...
59
Flat Washer MTD-736-0371
...
60
Clevis Pin MTD-711-04585
...
61
Hex Cap Screw, 3/8-16 x 3.50 MTD-710-3085
...
62
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
63
CONTROL VALVE HANDLE MTD-747-04539A
...
64
Hitch Coupling Assembly MTD-681-04030
...
65
Chain MTD-713-0433A
...
66
Fender MTD-731-2496A
...
67
Clevis Pin MTD-911-0813
...
68
Grip MTD-720-04088
...
69
Spring Pin MTD-732-0194
...
70
Jack Stand MTD-781-0789-0638
...
71
Spiral Pin MTD-715-0120
...
72
TT Screw, 5/16-18 x 0.875 MTD-710-0650
...
73
TT Screw, 5/16-18 x 1.00 MTD-710-0602
...
74
Valve Handle Link MTD-913-04036
...
75
Cotter Pin MTD-714-0111
...
76
Hose Guard, 44" MTD-781-0526A
...
77
Hose Guard, 48" MTD-781-0538A
...
78
Sems Screw, 3/8-16 x 1.250 MTD-710-0502A
...
79
Flat Washer, .407 x .812 x .135 MTD-736-3010

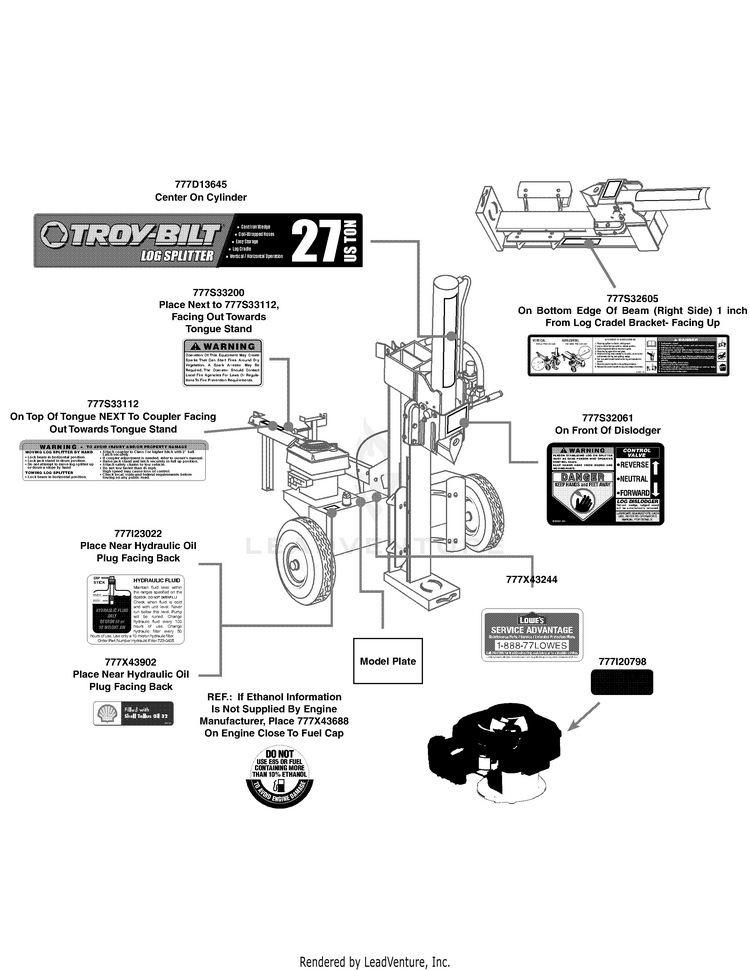

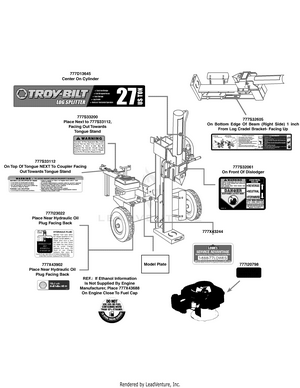

Label Map

...
...
777D13645
LABEL-LOGSPLITTER CYL:27T:TBILT MTD-777D13645
...
777S33200
LABEL-WARNING SPARKS MTD-777S33200
...
777S33112
LABEL-LOGSPLITTER TOW WARNING MTD-777S33112
...
777I23022
LABEL-LOGSPLITTER MTD-777I23426
...
777X43902
LABEL-SHELL TELLUS S MTD-777X45191
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777I20798
LABEL-SHROUD MTD-777I20798
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777S32061
LABEL-LOGSPLITTER MTD-777S33682
...
777S32605
LABEL-BEAM DNGR IN MTD-777S32605

Service Kit 753-05607

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA
...
2
O-ring (Large, Black) Not Available Separately MTD-NA
...
3
Backup Ring (Black) Not Available Separately MTD-NA
...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA
...
5
Scraper: Rod (Black) Not Available Separately MTD-NA
...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05608

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA
...
2
Scraper DA17 (Black) Not Available Separately MTD-NA
...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA
...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA
...
5
O-Ring (Black) Not Available Separately MTD-NA
...
6
Back-up Ring (White) Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA
...
...
...
