Troy-Bilt 24BC7FM1766 TB 25 LS (2017) Log Splitter

Model: 24BC7FM1766 TB 25 LS (2017)

Back To Assemblies

Save Part Not Listed?
product name

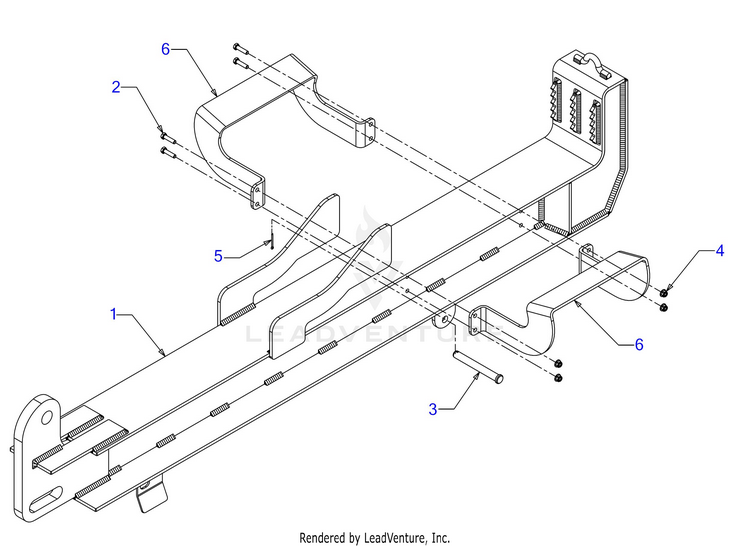

Beam

...
...
1
LOGSPLITTER BEAM *CHOOSE COLOR WHEN ORDERING* MTD-681-05096
...
2
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
3
CLEVIS PIN MTD-711-06796
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
5
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
6
LOG TRAY CRADLE *CHOOSE COLOR WHEN ORDERING* MTD-781-05307
