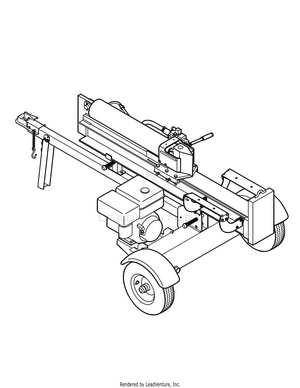

Troy-Bilt 24AD597D711 LS33T (2008) LS33T Log Splitter

Model: 24AD597D711 LS33T Log Splitter (2008)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre Filter MTD-17218-ZE2-505
...
xx
FLTR SET-AIR/PRECLNR MTD-17210-ZE2-822
...
xx
Fuel Filter MTD-17672-ZE2-W01
...
xx
FUEL FILLER CAP MTD-17620-Z4H-912
...
xx
RECOIL STARTER ASSEMBLY MTD-28400-ZE2-W02ZN
...
xx
Starter Spring MTD-28442-ZE2-W01
...
xx
Starter Rope MTD-28462-ZE2-W11
...
xx
STARTER GRIP MTD-28461-ZE2-W03
...
xx
Hydraulic Cylinder, 31/33 Ton MTD-918-0313A
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
Inlet Filter MTD-737-04093
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Flexible Coupling MTD-918-04135
...
xx
Adjustable Gibbs MTD-781-0351
...
xx
Belt MTD-NA
...
xx
CONTROL VALVE HANDLE MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
VALVE HANDLE LINK MTD-913-04036
...
xx
Chain MTD-713-0433A
...
xx
Hub Cap MTD-734-0873
...
xx
Wheel Assembly MTD-634-0186

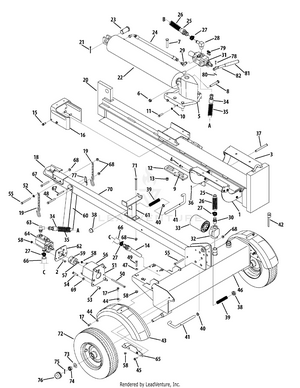

General Assembly

...
...
1
Log Tray Bracket MTD-781-04180-0637
...
2
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
3
LOG TRAY MTD-781-04179-0637
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Wedge Assembly MTD-719-0550A
...
6
Lock Nut, 1/2-13 MTD-712-3022
...
7
Hex Cap Screw, 1/2-20 x 2.75 MTD-710-1018
...
8
Hex Cap Screw, 1/2-13 x 3.25 MTD-710-1806
...
9
Adjustable Gib MTD-781-0351
...
10
Hex Jam Nut, 3/8 -24 MTD-712-0711
...
11
Hex Cap Screw, 3/8 -24 x 1.5 MTD-710-0459A
...
12
WEDGE PLATE MTD-781-0790A-0637
...
13
HEX NUT CENTER MTD-912-3058
...
14
Inlet Filter MTD-737-04093
...
15
Hex Washer Screw, 3/8 -16 x 1.0 MTD-710-0654A
...
16
Dislodger MTD-781-0525
...
17
Self-Tapping Screw, 5/16-18 x .875 MTD-710-0650
...
18
Hitch Coupler, 2" MTD-681-04030
...
19
Chain MTD-713-0433A
...
20
Beam Assembly MTD-981-04080
...
21
Cotter Pin MTD-714-0211
...
22
Hydraulic Cylinder, 31/33 Ton MTD-918-0313A
...
22
Kit Seal 5.0" for XINGHUI cylinder See Service Kit 753-05609 MTD-953-05609
...
22
Kit Seal 5.0" for ENERGY cylinder See Service Kit 753-05610 MTD-953-05610
...
23
Clevis Pin MTD-711-1135
...
24
Hydraulic Hose MTD-727-04166
...
25
Return Hose, 3/4" ID x 44" MTD-727-0443
...
26
Hose Guard MTD-781-0526A
...
27
Hose Clamp, 5/8 " MTD-726-0132
...
28
Return Elbow MTD-737-0153
...
29
90 Degree Solid Male Adapter MTD-737-0192
...
30
3/4" Hose Adapter MTD-737-0235
...
31
Control Valve MTD-918-0481A
...
32
Filter Housing MTD-753-06643
...
33
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
34
High Pressure Hydraulic Hose MTD-727-0502
...
35
Hose Guard MTD-781-0538A
...
36
Cotter Pin, 1/8 " MTD-714-0470
...
37
Hinge Pin, 1/2 x 4.8" Lg. MTD-738-0805
...
38
Push Cap MTD-726-0214
...
39
Compression Spring, 4" MTD-732-0583
...
40
Flat Washer, .635 ID x .93 OD MTD-736-0116
...
41
Locking Rod MTD-781-0690
...
42
Vented Dipstick MTD-737-0348A
...
43
Fender MTD-781-2496A
...
44
Flat Washer, .343 x .880 x .062 MTD-736-0371
...
45
Self-tap Screw, 5/16-18 x 1.00 MTD-710-0602
...
46
Frame Assembly, 7.0 Gal MTD-681-04041A
...
47
Bell Washer, 340 x .872 x .060 MTD-736-0242
...
48
Hex Cap Screw, 3/8 -16 x 3.00 MTD-710-0521
...
49
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
50
Hex Cap Screw, 5/16-18 x 5.50 MTD-710-3226
...
51
Front Support Bracket Coupling MTD-781-1100-0637
...
52
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
53
Spacer, .385 x .623 x .750 MTD-711-0396
...
54
Hex Cap Screw, 3/8 -16 x 1.75 MTD-710-0347
...
55
Hex Cap Screw, 3/8 -16 x 3.50 MTD-710-3085
...
56
Coupling Shield MTD-719-0315
...
57
Key MTD-914-0114
...
58
Hex Flange Lock Nut, 5/16-18 MTD-712-04063
...
59
Coupling, .500 MTD-718-04392
...
59
Coupling, .875 MTD-718-04395
...
59
Spider Bushing not shown MTD-735-04103
...
60
Jack Stand MTD-781-0162
...
61
Support Beam Assembly MTD-681-0110-0637
...
62
SUPPORT BRACKET MTD-781-0097-0637
...
63
Adapter, 7/8-14 MTD-737-0264
...
64
Gear Pump MTD-918-04128
...
65
Fender Mounting Bracket MTD-781-04174-0637
...
66
Suction Hose MTD-727-0451
...
67
CLEVIS PIN 5/16 x 2.5 MTD-911-0813
...
68
Flange Lock Nut, 3/8 -16 MTD-712-04065
...
69
Lock Washer, 3/8 MTD-736-0169
...
70
Tube MTD-781-0680B
...
71
Hex Cap Screw, 3/8 -16 x 4.0 MTD-710-0411
...
72
Wheel Assembly MTD-634-0186
...
72
Cone Bearing Not Shown MTD-941-04298
...
72
Grease Retainer Not Shown MTD-921-0168
...
73
Flat Washer, .76" ID x 1.5" OD MTD-736-0351
...
74
Slotted Nut, 3/4-16 MTD-712-0359
...
75
Cotter Pin, 5/32" x 1-1/4" MTD-714-0162
...
76
Hub Cap MTD-734-0873
...
77
Spring Pin MTD-732-0194
...
78
Clevis Pin MTD-711-04585
...
79
VALVE HANDLE LINK MTD-913-04036
...
80
Cotter Pin MTD-714-0111
...
81
Grip MTD-720-04088
...
82
CONTROL VALVE HANDLE MTD-747-04539A

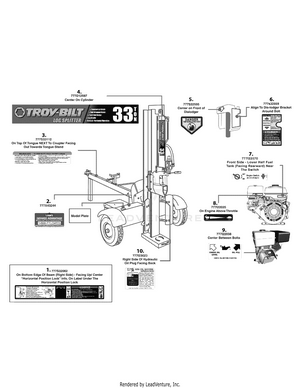

Label Map

...
...
1
LABEL-BEAM MTD-777S32062
...
2
LABEL-LOWES:SERVICE model 711 only MTD-777X43244
...
3
LABEL-LOGSPLITTER TOW WARNING MTD-777S33112
...
4
LABEL-LGSPLT:CYL:33T:TBILT MTD-777D12597
...
5
LABEL-WEDGE DNGR MTD-777S32595
...
6
LABEL-CNTRL VLV DNGR MTD-777S32559
...
7
LABEL-ENGINE SWITCH MTD-777I22570
...
8
LABEL-ENGINE MTD-777I22035
...
9
LABEL-ENGINE MTD-777I22038
...
10
LABEL-LGSPLT ADD OIL MTD-777I23023

Service Kit 753-05609

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA
...
2
O-ring (Large, Black) Not Available Separately MTD-NA
...
3
Backup Ring (Black) Not Available Separately MTD-NA
...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA
...
5
Scraper: Rod (Black) Not Available Separately MTD-NA
...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA
...
7
THIS INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05610

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA
...
2
Scraper DA17 (Black) Not Available Separately MTD-NA
...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA
...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA
...
5
O-Ring (Black) Not Available Separately MTD-NA
...
6
Back-up Ring (White) Not Available Separately MTD-NA
...
7
THIS INSTRUCTION SHEET Not Available Separately MTD-NA
...
...
...
