Troy-Bilt 24A-414B711 (2009) CS4265 Chipper Shredder Vac

Model: 24A-414B711 Chipper Shredder (2009)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter Model 410 Only MTD-951-3013
...
xx
IMPELLER ASSEMBLY MTD-981-04094
...
xx
CHIPPER BLADE MTD-942-0544B
...
xx
Flail Blade MTD-719-04308
...
xx
IMPELLER BLADE MTD-742-04050-0637
...
xx
Screen Assembly MTD-719-04070
...
xx
CHUTE ASSEMBLY (UPPER) MTD-981-04006
...
xx
Chipper Shredder Chute Lower MTD-681-04007
...
xx
CHIPPER CHUTE ASSEMBLY Model 410 Only MTD-681-0095
...
xx
SHREDDER HOPPER ASSEMBLY MTD-981-04011
...
xx
WHEEL ASSEMBLY (10 x 4 x 4) (GRAY) MTD-934-04009
...
xx
Hub Cap MTD-726-0214
...
xx
SHREDDER BAG (23.5 x 58) (WHITE) MTD-664P04023A

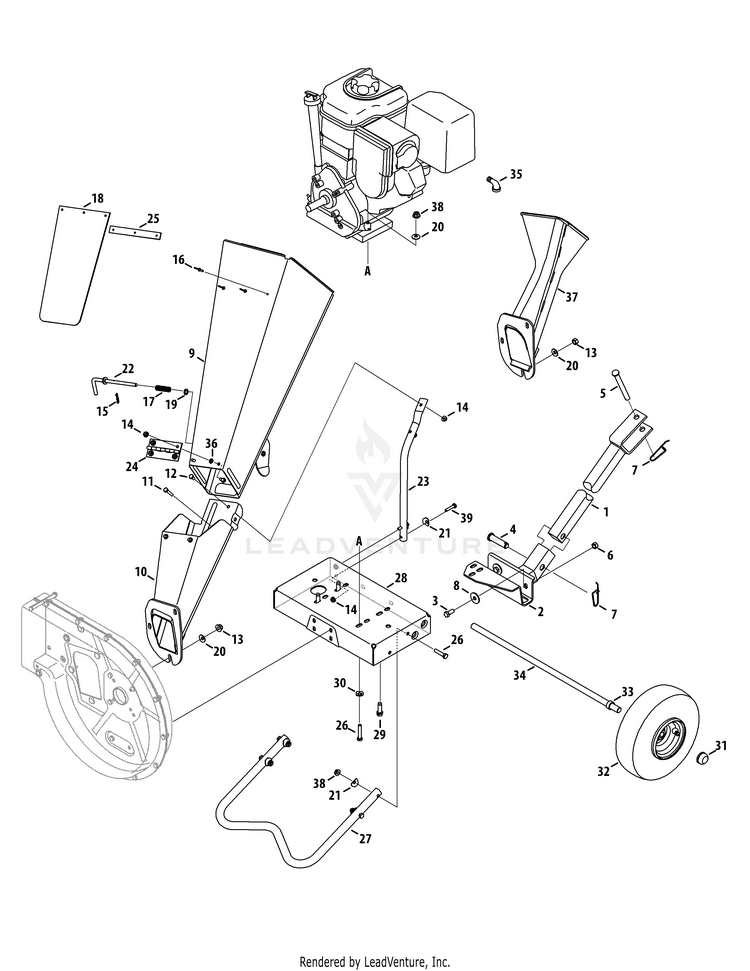

General Assembly

...
...
1
TOW BAR (POWDER BLACK) MTD-981-0133B-0637
...
2
TOW BAR BASE (POWDER BLACK) MTD-681-0134B-0637
...
3
Hex Cap Screw, 3/8-16 x.88 MTD-710-3001
...
4
Clevis Pin,.625 x 2.4 MTD-711-0299
...
5
Clevis Pin,.50 x 4.62 MTD-911-0835
...
6
Flange Lock Nut, 3/8-16 MTD-712-04065
...
7
Spring Pin MTD-732-0194
...
8
Washer, Flat, .411 x 1.25 x .100 MTD-736-0133
...
9
CHUTE ASSEMBLY (UPPER) (MTD RED) Model Series 420 MTD-981-04006-0638
...
10
Lower Chipper Chute Assembly Model Series 420 MTD-681-04007-0638
...
11
Hex Cap Screw, 1/4-20 x 1.25 Model Series 420 MTD-710-0106
...
12
Screw, 1/4-20 x .50 Model Series 420 MTD-710-3013
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Flange Lock Nut 1/4-20 Model Series 420 MTD-712-04064
...
15
Hairpin Clip Model Series 420 MTD-714-0104
...
16
Pop Rivet Model Series 420 MTD-728-0175
...
17
Compression Spring,.531 x 1.75 Model Series 420 MTD-932-0306A
...
18
Chute Flap Model Series 420 MTD-735-0249A
...
19
Flat Washer, .385 x .62 x .063 Model Series 420 MTD-736-0140
...
20
Bell Washer.340 ID x.872 OD MTD-736-0242
...
21
Saddle Washer MTD-736-0451
...
22
Lock Rod Model Series 420 MTD-947-04163
...
23
Chipper Chute Support Model Series 420 MTD-749-1004-0637
...
24
Chipper Chute Hinge Model Series 420 MTD-981-04032
...
25
Chute Flap Strip Model Series 420 MTD-781-0633
...
26
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
27
Tube Support MTD-749-04104-0637
...
28
FRAME ASSEMBLY Model Series 410 MTD-681-0184C-0638
...
28
FRAME ASSEMBLY(MTD RED) Model Series 420 MTD-681-0183B-0638
...
29
Hex Sems Screw, 3/8-16 x 1.25 MTD-710-0502A
...
30
SPECIAL WASHER MTD-736-0170
...
31
Push Cap, 5/8 MTD-726-0214
...
32
WHEEL ASSEMBLY (10 x 4 x 4) (GRAY) MTD-934-04009
...
33
Spacer, .64 x .88 x .38 MTD-950-0786
...
34
Axle, 22.47" MTD-738-0813
...
35
Elbow Fitting MTD-937-0195
...
36
Push Nut,.25ID x.50OD Model Series 420 MTD-726-0233
...
37
CHIPPER CHUTE ASSEMBLY (BLACK JACK) Model Series 410 MTD-681-0095-0691
...
38
Flange Lock Nut, 5/16-18 MTD-712-04063
...
39
Hex Cap Screw, 1/4-20 x 1.250 MTD-710-0809
...
xx
SHREDDER BAG (23.5 x 58) (WHITE) Not Shown MTD-664P04023A
...
xx
Safety Glasses Not Shown MTD-723-0400

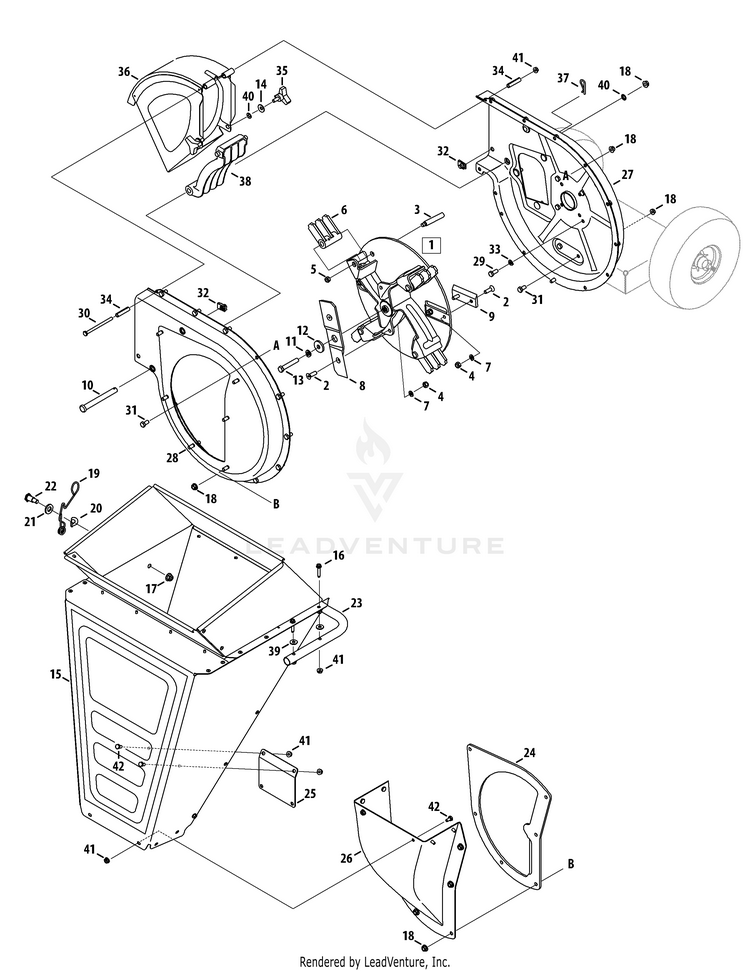

Impeller Assembly

...
...
1
Impeller Assembly Complete MTD-981-04094
...
2
Machine Screw, 5/16-24 x 1.0 MTD-710-1054
...
3
SHOULDER PIN MTD-738-04286A
...
4
Hex Top Lock Nut 5/16-24 MTD-712-0411
...
5
Nut, Jam Lock, 3/8-16 MTD-712-0266A
...
6
Flail Blade MTD-719-04308
...
7
Lock Washer, 5/16 MTD-936-0119
...
8
IMPELLER BLADE MTD-742-04050-0637
...
9
CHIPPER BLADE MTD-942-0544B
...
10
Clevis Pin,.50 x 4.62 MTD-911-0835
...
11
Lock Washer, 3/8 MTD-736-0217
...
12
Flat Washer,.406 x 1.25 MTD-736-0247
...
13
SCREW 3/8-24X2.25 GR8 MTD-710-1254
...
14
Bell Washer.340 ID x.872 OD MTD-736-0242
...
15
SHREDDER HOPPER ASSEMBLY (MTD RED) MTD-981-04011-0638
...
16
Hex Cap Screw, 1/4-20 x 1.250 MTD-710-0809
...
17
Flange Lock Nut, 3/8-16 Model Series 420 MTD-712-04065
...
18
Flange Lock Nut, 5/16-18 MTD-712-04063
...
19
Torsion Spring Model Series 420 MTD-932-04167
...
20
Spring Washer,.50 x 1.0 x.022 Model Series 420 MTD-736-0182
...
21
Flat Washer,.510 x 1.00 Model Series 420 MTD-736-0326
...
22
Shoulder Screw, 3/8-16,.50 x.685 Model Series 420 MTD-738-0430
...
23
Hopper Handle MTD-749-04103-0637
...
24
Shredder Plate MTD-781-04007-0638
...
25
Hopper Support Bracket MTD-781-04027-0638
...
26
Inlet Guide MTD-781-04033-0638
...
27
Inner Impeller Housing Assembly MTD-681-0117-0637
...
28
FLAIL HOUSING ASSEMBLY (OUTER) MTD-681-04002
...
29
Hex Cap Screw, 5/16-24 x.75 MTD-710-0157
...
30
Hex Cap Screw, 1/4-20 x 3.75 MTD-710-0825
...
31
Hex Cap Screw, 5/16-18 x.625 MTD-710-3025
...
32
One Mulch Plug Drill Guide MTD-726-0211
...
33
Lock Washer, 5/16 MTD-936-0119
...
34
Hinge Spacer,.265 x.380 x 1.66 MTD-950-0793
...
35
Knob Only, 5/16-18 MTD-720-0170
...
36
DISCHARGE CHUTE ASSEMBLY(POWDER BLACK) MTD-681-0094A-0637
...
37
Internal Cotter Pin MTD-714-0149B
...
38
Shredder Screen MTD-719-04070
...
39
Flat Washer,.28 x.74 x.063 MTD-736-0173
...
40
Speed Nut,.3125ID MTD-726-0201
...
41
Nut, Flange, Lock, 5/16-18 MTD-712-04064
...
42
TT Screw, 1/4-20 x.5 MTD-710-0599

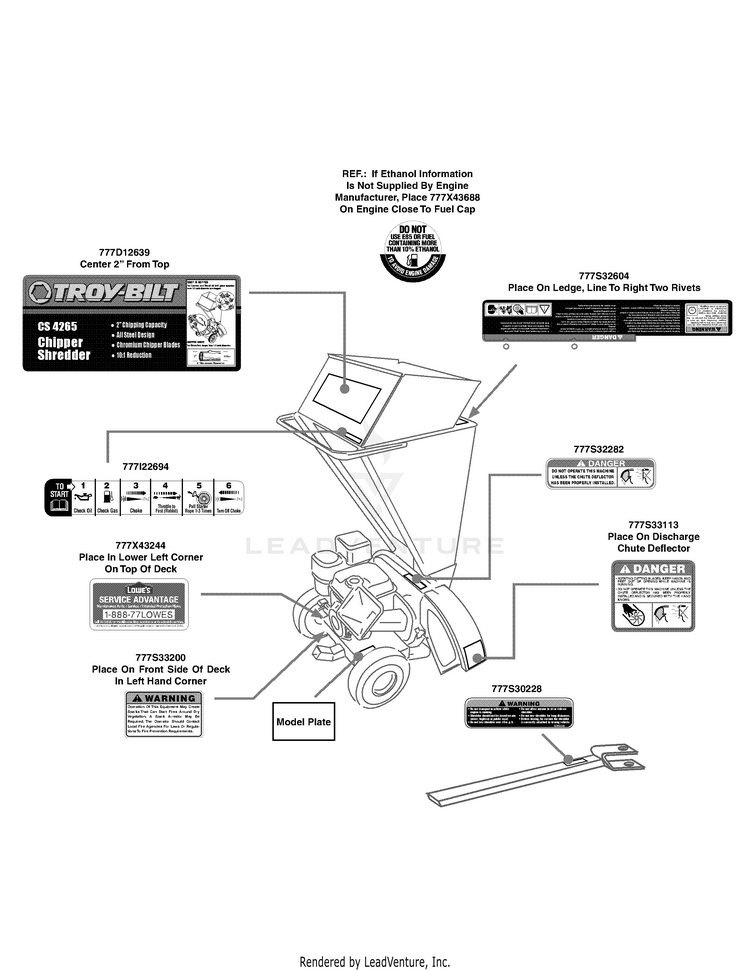

Label Map CS4265

...
...
777D12639
LABEL-CHIPPER SHREDDER TROY MTD-777D12639
...
777I22694
LABEL-START INSTRU MTD-777I22694
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777S33200
LABEL-WARNING SPARKS MTD-777S33200
...
777S30228
LABEL-TOW BAR MTD-777S30228
...
777S33113
LABEL-CHIPPER SHREDDER CHUTE MTD-777S33113
...
777S32282
LABEL-CHUTE MTD-777S32282
...
777S32604
LABEL:VERT/CS:HOPP MTD-777S32604
...
777X43688
LABEL-ETHANOL MTD-777X43688
