Troy-Bilt 23AAKAAX711 FLEX Aerator (2016) FLEX

Model: 23AAKAAX711 FLEX Aerator (2016)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Model Number MTD-23AAKAAX711
...
xx
Accessory Rack MTD-29A30002711
...
xx
Spikes MTD-742-05227
...
xx
Operator's Manual MTD-769-11016

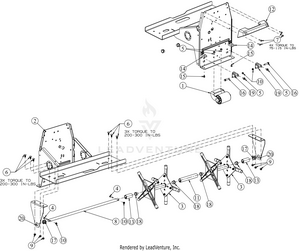

Aerator

...
...
1
ROLLER SHAFT .75 x 5.44 Not Shown MTD-711-06428
...
1
CAP Not Shown MTD-726-0341
...
1
DECK ROLLER Not Shown MTD-731-3305
...
1
ROLLER BRACKET Not Shown MTD-787-03348-0637
...
1
ROLLER BRACKET ASSEMBLY MTD-987-05144
...
2
AERATOR FRAME ASSEMBLY MTD-687-05185-0638
...
6
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
9
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
3
AERATOR DOUBLE WELD ASSEMBLY MTD-687-05197-0637
...
3
CARRIAGE BOLT 5/16-18 x .75 Not Shown MTD-710-0451
...
3
FLANGE LOCK NUT 5/16-18 Not Shown MTD-712-04063
...
3
AERATOR SPIKE Not Shown MTD-742-05227
...
4
HEX SCREW 1/4-20 x 1.25 MTD-710-0106
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
7
SCREW 1/4-20 x 1.0 MTD-710-05074
...
8
CORE AERATOR AXLE MTD-711-06594
...
10
FLANGE LOCK NUT MTD-712-04064
...
11
SPACER MTD-731-09486
...
12
HANDLE MTD-731-10490
...
13
SPACER - .75 x 1.25 x 2.4 MTD-731-11883
...
14
BUMPER PAD MTD-735-05069
...
15
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
16
SHOULDER SCREW MTD-938-1226
...
17
FLANGE BEARING MTD-941-0245
...
18
FLANGE BUSHING MTD-741-0493C
...
19
SUPPORT BRACKET MTD-787-03195-0637
...
20
AXLE SUPPORT BRACKET MTD-787-03557-0638

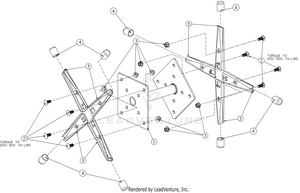

Aerator Spikes

...
...
1
AERATOR DOUBLE WELD ASSEMBLY MTD-687-05197-0637
...
2
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
3
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
4
CAP (Not Serviceable) MTD-NA
...
5
AERATOR SPIKE MTD-742-05227
...
...
...
