Troy-Bilt 23AAJAAX766 FLEX Dethatcher (2019) Dethatcher

Model: 23AAJAAX766 FLEX Dethatcher (2019)

Save
Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx

...
xx

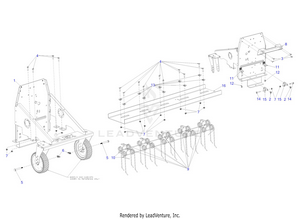

General Assembly

...
...
1
DETHATCHER FRAME ASSEMBLY MTD-687-05180-0638

...
2
SCREW 5/16-18 x .750 MTD-710-04484

...
3
SCREW 1/4-20 x 1.0 MTD-710-05074

...
4
SCREW 1/4-20 X1.00 GR5 MTD-710-0597

...
5
CASTER AXLE MTD-911-1146

...
6

...
7
FLANGE LOCK NUT MTD-712-04064

...

...
9
DETHATCHER SPRING MTD-732-05402A

...
10
DETHATCHER RETAINING WIRE MTD-732-05404

...
11
BUMPER PAD MTD-735-05069

...
12
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502

...
13
SHOULDER SPACER MTD-938-0958

...
14
SHOULDER SCREW MTD-938-1226

...
15
SUPPORT BRACKET MTD-787-03195-0637

...
16
DETHATCHER TRAY BRACKET MTD-787-03509-0638

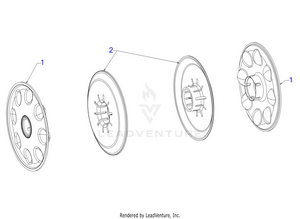

Hubcaps

...
...

...
2
DUST COVER 7" MTD-731-09479

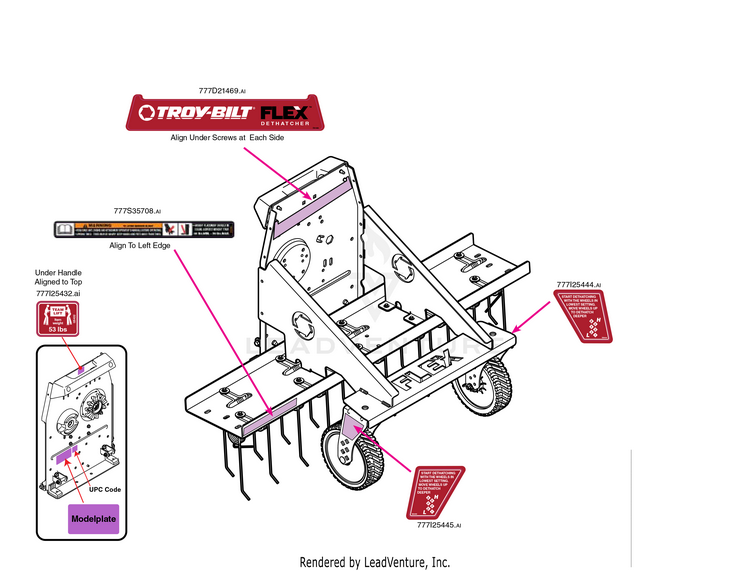

Label Map

...
...
xx
LBL:FLEX:DETHATCHER         MTD-777D21469

...
xx
LBL:DETHATCHER:WGHT:53LBS   MTD-777I25432

...
xx
LBL:FLX:WHL ASSY:CASTER:H/L MTD-777I25444

...
xx
LBL:FLX:WHL ASSY:CASTER:H/L MTD-777I25445

...
xx
LBL:FLEX:DETHATCHER:WRNG    MTD-777S35708

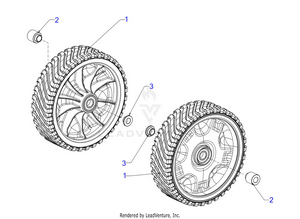

Wheels

...
...
1
WHEEL ASSEMBLY (7 x 2) MTD-634-04606

...
2
CASTER HUB MTD-750-06036A

...
3
CASTER HUB MTD-750-06065
...
...
...
