Troy-Bilt 23AAFAAX711 FLEX Chipper Shredder (2017) FLEX

Model: 23AAFAAX711 FLEX Chipper Shredder (2017)

Back To Assemblies

Save Part Not Listed?
product name

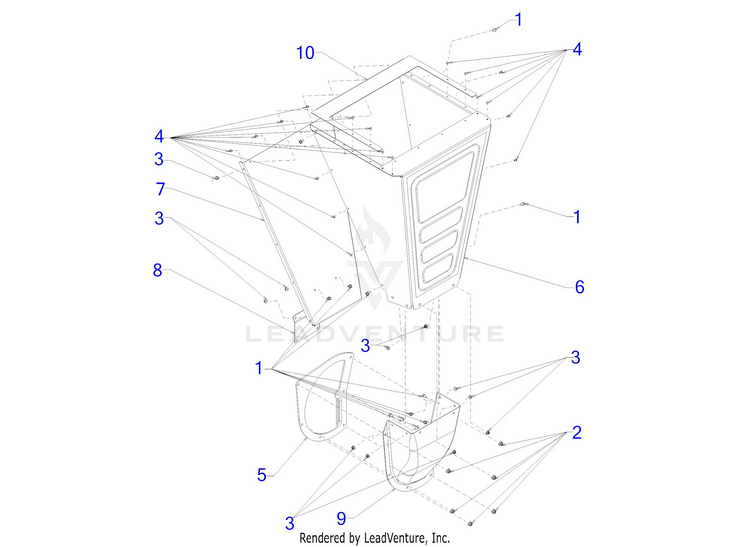

Hopper

...
...
1
SCREW 1/4-20 X.500 MTD-710-0599
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
FULL TUBULAR RIVET MTD-728-04016
...
5
SHREDDER PLATE MTD-781-04007-0638
...
6
HOPPER FRONT PANEL MTD-781-04021-0638
...
7
HOPPER BACK PANEL MTD-781-04022-0638
...
8
HOPPER BRACKET SUPPORT MTD-781-04027-0638
...
9
INLET GUIDE MTD-781-04033-0638
...
10
HOPPER TOP PANEL (MTD RED) MTD-787-03584-0638
Schematic Image Zoomed
