Troy-Bilt 23AAFAAX711 FLEX Chipper Shredder (2017) FLEX

Model: 23AAFAAX711 FLEX Chipper Shredder (2017)

Back To Assemblies

Save Part Not Listed?
product name

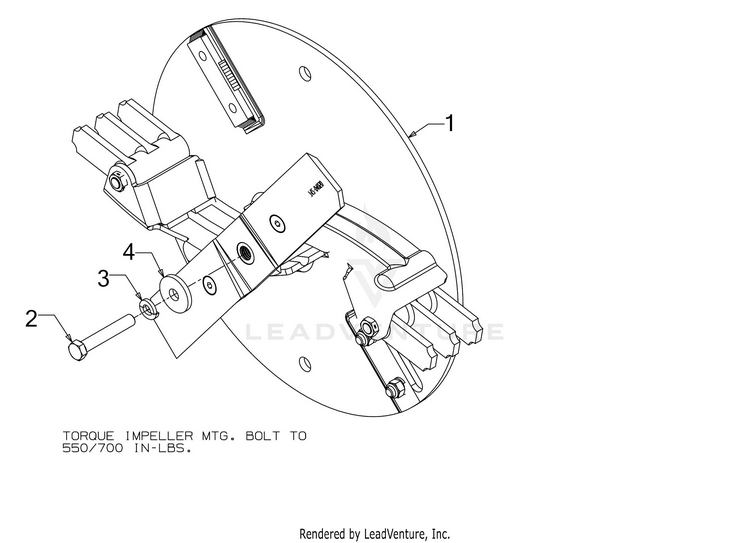

Impeller Assembly

...
...
1
IMPELLER ASSEMBLY MTD-981-05068
...
1
IMPELLER BLADE (Not Shown) MTD-742-04050-0637
...
1
CHIPPER BLADE (Not Shown) MTD-942-0544B
...
1
FLAIL BLADE (Not Shown) MTD-719-04308
...
1
SHOULDER PIN (Not Shown) MTD-738-04286A
...
1
Hex Top Lock Nut 5/16-24 (Not Shown) MTD-712-0411
...
1
JAM LOCK NUT (Not Shown) MTD-712-0266A
...
1
SCREW 5/16-24 x 1 (Not Shown) MTD-710-1054
...
1
LOCK WASHER 5/16 (Not Shown) MTD-936-0119
...
2
SCREW 3/8-24X2.25 GR8 MTD-710-1254
...
3
Lock Washer, 3/8 MTD-736-0217
...
4
FLAT WASHER MTD-736-0247
