Troy-Bilt 23AAFAAX711 FLEX Chipper Shredder (2017) FLEX

Model: 23AAFAAX711 FLEX Chipper Shredder (2017)

Back To Assemblies

Save Part Not Listed?
product name

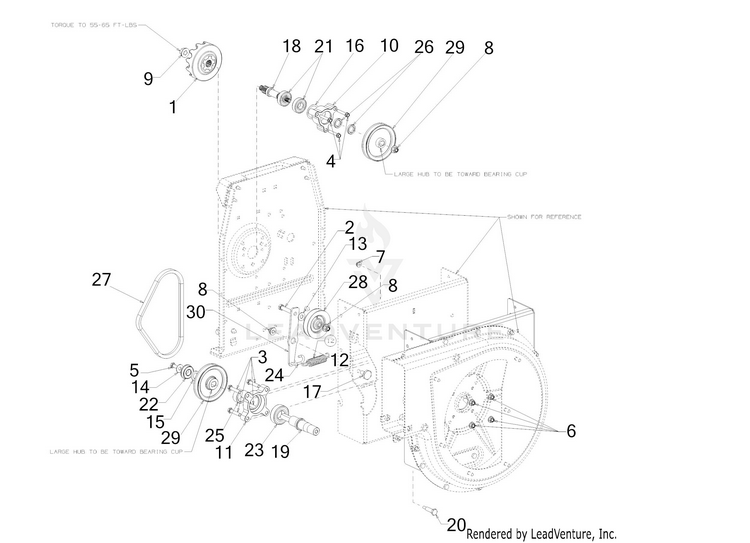

Drive

...
...
1
DOG CLUTCH ASSEMBLY MTD-931-05304
...
1
DOG CLUTCH (Not Shown) MTD-931-05304
...
1
DOG CLUTCH BUMPER (Not Shown) MTD-735-05109
...
2
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
3
SCREW 5/16-18 x 1.50 GR5 MTD-710-0805A
...
4
SCREW 1/4-20 X1.625 MTD-710-1325
...
5
SCREW 5/16-18 x .750 MTD-710-1880
...
6
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
7
FLANGE LOCK NUT MTD-712-04064
...
8
NUT MTD-712-04065
...
9
NUT MTD-712-04150
...
10
BEARING CUP MTD-718-04261
...
11
BEARING HOUSING MTD-718-05424
...
12
EXTENSION SPRING MTD-732-04323B
...
13
Fl-Wash. .385" I.D. MTD-736-0300
...
14
FLAT WASHER MTD-736-0371
...
15
FLAT WASHER .632X1.00X.16 MTD-736-04296
...
16
SHIM WASHER MTD-736-04516
...
17
SHIELD SCREW MTD-738-0322A
...
18
DRIVE SPINDLE SHAFT MTD-738-05184
...
19
IMPELLER SPINDLE MTD-738-05185
...
20
SHOULDER SCREW MTD-938-0572
...
21
BALL BEARING MTD-941-0600
...
22
GROOVE BALL BEARING MTD-741-0145
...
23
BALL BEARING MTD-941-0301
...
24
EXTENSION SPRING HOOK MTD-747-06513
...
25
SLEEVE SPACER 25MM x 1.375 x 44 MTD-750-04438A
...
26
SPACER MTD-950-0997
...
27
V-BELT 1/2 x 25.5 MTD-954-05147
...
28
V-IDLER PULLEY A x 3.06 OD MTD-756-04325
...
29
DRIVE PULLEY MTD-756-05220
...
30
ILDER BRACKET MTD-787-03638A
