Troy-Bilt 23AAFAAX711 FLEX Chipper Shredder (2017) FLEX

Model: 23AAFAAX711 FLEX Chipper Shredder (2017)

Back To Assemblies

Save Part Not Listed?
product name

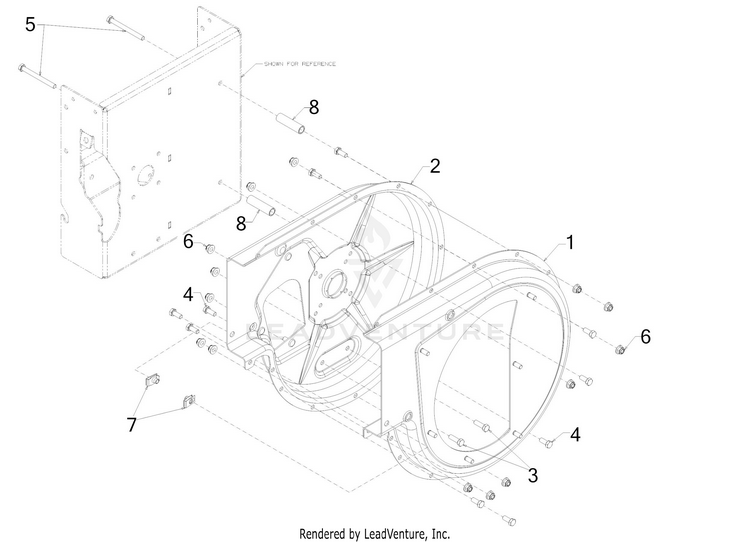

Impeller Housing

...
...
1
FLAIL HOUSING ASSEMBLY (OUTER) MTD-681-04002
...
1
CLINCH STUD 5/16-18 x .75 (Not Shown) MTD-710-1307
...
2
INNER FLAIL HOUSING MTD-681-05063
...
2
CLINCH STUD 5/16-18 x .75 (Not Shown) MTD-710-1307
...
3
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
SCREW 5/16-18 x 3.25 GR5 MTD-710-3056
...
6
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
7
One Mulch Plug Drill Guide MTD-726-0211
...
8
SPACER .459 x .625 x 2.31 MTD-750-06610
