Troy-Bilt 23AAFAAX711 FLEX Chipper Shredder (2017) FLEX

Model: 23AAFAAX711 FLEX Chipper Shredder (2017)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

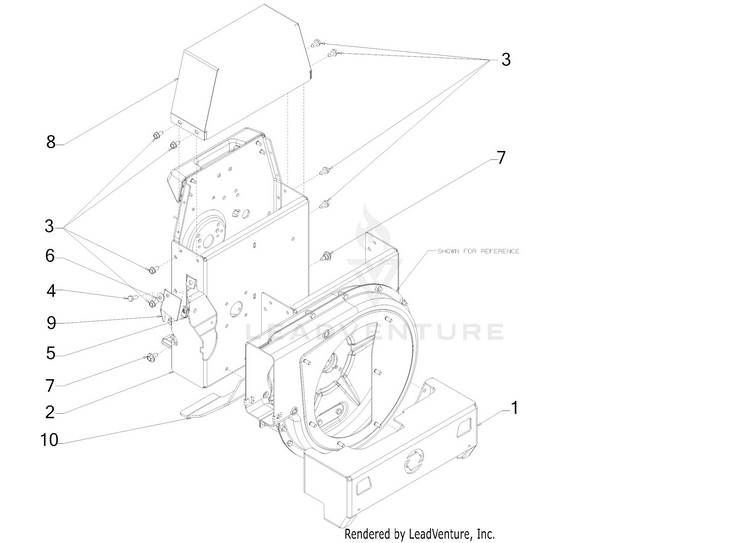

Frame

...
...
1
WHEEL FRAME WELDMENT (MTD RED) MTD-687-05211A-0638
...
2
FRAME WELDMENT ASSEMBLY (MTD RED) MTD-687-05212A-0638
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
One Mulch Plug Drill Guide MTD-726-0211
...
6
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
7
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
8
FRAME MOUNTING COVER BRACKET (MTD RED) MTD-787-03524-0638
...
9
PULL COVER BRACKET (MTD RED) MTD-787-03583-0638
...
10
SPACER BRACKET MTD-787-03637-0637
Schematic Image Zoomed
