product name

Troy-Bilt 23AADAAA711 FLEX Power Washer (2016) FLEX

Model: 23AADAAA711 FLEX Power Washer (2016)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Accessory Rack MTD-29A30002711
...
xx
Nozzle Fitting Assembly MTD-687-05118
...
xx
Extension Tube MTD-737-05045
...
xx
Hose MTD-737-05046
...
xx
Control Handle MTD-737-05054
...
xx
Soap Inlet Tube MTD-750-06338
...
xx
Operator's Manual MTD-769-10248

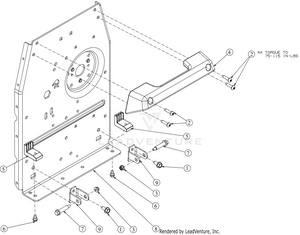

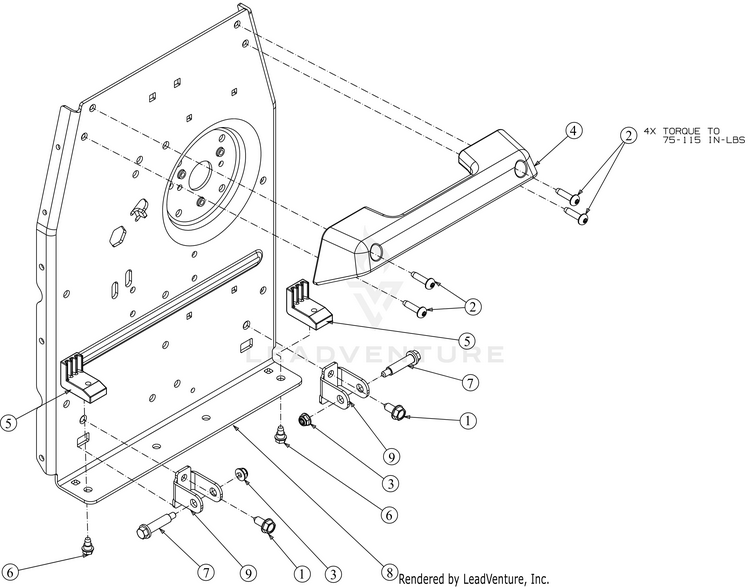

Frame Mount Bracket

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 1/4-20 x 1.0 MTD-710-05074
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
HANDLE MTD-731-10490
...
5
BUMPER PAD MTD-735-05103
...
6
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
7
SHOULDER SCREW MTD-938-1226
...
8
FRAME MOUNT BRACKET MTD-787-03177D-0638
...
9
SUPPORT BRACKET MTD-787-03195-0637

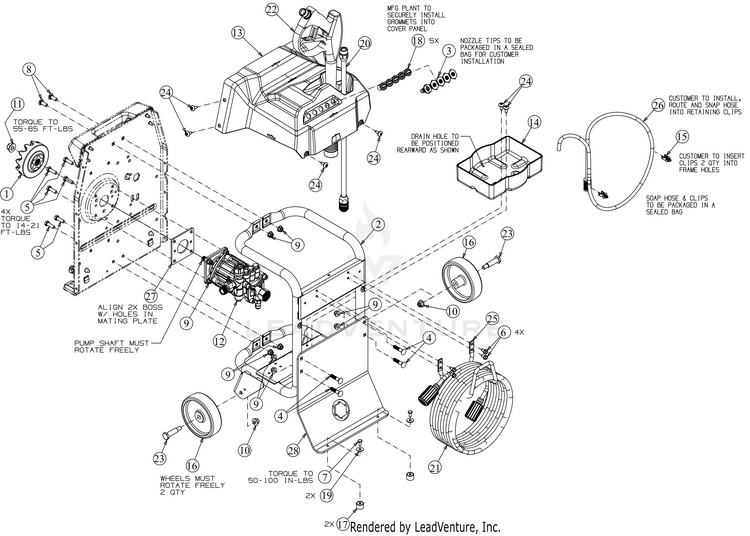

General Assembly

...
...
1
DOG CLUTCH BUMPER MTD-735-05109
...
1
DOG CLUTCH MTD-931-05304
...
1
DOG CLUTCH ASSEMBLY MTD-931-05304
...
2
FRAME ASSEMBLY MTD-687-05107A-0638
...
3
NOZZLE FITTING ASSEMBLY MTD-687-05118
...
4
CARRIAGE BOLT 5/16-18 x 1.50 MTD-710-0262
...
5
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
6
SCREW 1/4-20 X.500 MTD-710-0599
...
7
SCREW M6-1 x 12 MTD-710-1691
...
8
BOLT 5/16-18X .875 GR1 MTD-710-3105
...
9
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
10
NUT MTD-712-04065
...
11
NUT MTD-712-04150
...
12
PRESSURE WASHER PUMP MTD-718P05394
...
13
POWER WASH COVER MTD-731-10738
...
14
SOAP TRAY MTD-731-10765A
...
15
WIRE CLIP MTD-731-11232
...
16
PLASTIC WHEEL 5X1.38 MTD-734-0973
...
17
BUMPER MTD-735-04121
...
18
GROMMET MTD-735-05097A
...
19
SPRING WASHER BELL MTD-736-0270
...
20
EXTENSION TUBE MTD-737-05045
...
21
ATTACHMENT HOSE .25 x 40FT MTD-737-05046
...
22
CONTROL HANDLE MTD-737-05054
...
23
SHOULDER SCREW MTD-938-0373
...
24
TORX SHOULDER SCREW 1/4-20 MTD-738-04549A
...
25
HOSE HANGER ROD MTD-747-06453-0637
...
26
INLET SOAP TUBE MTD-750-06338
...
27
PUMP PLATE MTD-787-03282
...
28
SUPPORT PLATE MTD-787-03410A-0638
...
...
...
