Troy-Bilt 23AACAAX711 FLEX Leaf Blower (2015) FLEX

Model: 23AACAAX711 FLEX Leaf Blower (2015)

Save
 Part Not Listed?Part Not Listed?
product name

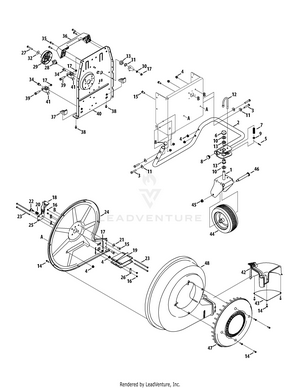

FLEX Blower Attachment-Blower Housing

...
...
1
Caster Wheel Bracket Assembly MTD-681-04085-0638
...
2
Lower Frame Assembly MTD-681-05031-0638
...
3
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
4
Flange Lock Nut, 5/16-18 MTD-712-04063
...
5
Hairpin Clip MTD-714-0104
...
6
Push Cap, 5/8 MTD-726-0214
...
7
Compression Spring, .531 x 1.75 Lg. MTD-932-0306A
...
8
End Plug MTD-735-0246A
...
9
Flat Washer, .330 x .630 x .064 MTD-936-0264
...
10
Flat Washer, .640 x 1.120 x .125 MTD-736-0366
...
11
Saddle Washer MTD-736-0451
...
12
Lock Pin MTD-747-0924
...
13
Flange Bearing, .631 ID MTD-741-0685
...
14
Hex Screw, #12-16 x .75 MTD-710-04373A
...
15
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
16
Hex Lock Nut, #8-32 MTD-712-04035
...
17
Flange Lock Nut, 1/4-20 MTD-712-04064
...
18
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
19
Louver Blower Plate MTD-731-05644
...
20
Compr. Sprng., .515 x .641 x .95 MTD-932-3042
...
21
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
22
Shoulder Screw, .437 x .50 x 1/4-20 MTD-738-04222
...
23
Shoulder Screw, .18 x 4.8 x 8-32 MTD-738-04223
...
24
Blower Back Plate MTD-781-04165A
...
25
BLOWER LEVER (POWDER BLACK) MTD-781-04181B-0637
...
26
Louver Guide Plate MTD-781-04212-0637
...
27
Hex Cap Screw, 1/4-20 x 1.75 MTD-710-0136
...
28
Clutch Link Shaft MTD-711-06319
...
29
Idler Clutch MTD-731-10493A
...
30
SPRING WASHER BELL MTD-736-0270
...
31
Wave Washer, .65 ID x .855 x .010 MTD-736-04353
...
32
Flat Washer, .265 x 1.0 x .030 MTD-736-3092
...
33
Hex Flange Bearing 5/8 PM MTD-741-04237B
...
34
SCREW 5/16-18 x .750 MTD-710-04484
...
35
Self-tapping Screw, 1/4-20 x 1.00 MTD-710-05074
...
36
Rear Handle MTD-731-10490
...
37
Bumper Pad MTD-735-05103
...
38
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
39
Shoulder Screw,, 1/4-20 x .375 x 1.355 MTD-938-1226
...
40
FRAME MOUNT BRACKET MTD-787-03177D-0638
...
41
Support Bracket MTD-787-03195-0637
...
42
Chute Assembly MTD-631-04253
...
43
Chute Plate MTD-781-04175-0638
...
44
Complete Wheel, 8 x 3 MTD-934-04497A
...
45
Flange Lock Nut, 3/8-16 MTD-712-04065
...
46
Shoulder Screw, 3/8-16 x .625 x 3.94 MTD-738-04290
...
47
Blower Cover MTD-731-05664
...
48
Blower Housing MTD-731-05592

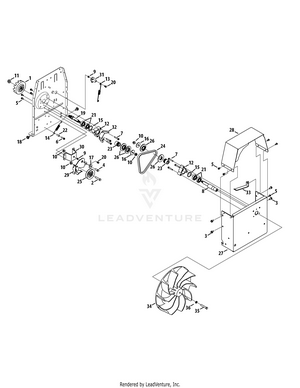

FLEX Blower Attachment-Drive Attachment

...
...
1
Clutch Assembly MTD-931-05304
...
2
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
5
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
6
Self-tapping Screw, 1/4-20 x 1.00 MTD-710-0788
...
7
Self-tapping Screw, 1/4-20 x 1.625 MTD-710-1325
...
8
Spindle Shaft MTD-711-06384A
...
9
Hex Lock Nut, 1/4-20 MTD-712-0291
...
10
Flange Lock Nut, 3/8-16 MTD-712-04065
...
11
Flange Lock Nut, 1/2-13 MTD-712-04150
...
12
Bearing Cup MTD-718-04261
...
13
Extension Spring, .52 OD x 6.1 MTD-732-05361
...
14
Extension Spring, .500 Dia. x 4.233 MTD-732-05322
...
15
Washer, 1.25 x 1.57 x .01 MTD-736-04516
...
16
Flat Washer, .407 x .812 x .135 MTD-736-3039
...
17
Shoulder Spacer, .625 x .169 MTD-938-0347
...
18
Shoulder Screw, .43 x .29, 5/16-18 MTD-738-04091A
...
19
DRIVE SPINDLE MTD-738-05104A
...
20
Shoulder Screw MTD-738-1225
...
21
Ball Bearing, 17 x 40 x 12 MTD-941-0600
...
22
Spacer, .260 x .375 x .75 MTD-750-05369
...
23
Spacer, .670 ID x 1.185 OD MTD-750-06280
...
24
V-Belt MTD-954-04123
...
25
Idler Pulley, V-Type x 3.06 MTD-756-04325
...
26
Pulley Half, 4L-V x 2.30 OD MTD-756-04353
...
27
Blower Frame MTD-781-05060-0637
...
28
Blower Top Cover Bracket MTD-781-05061-0637
...
29
Blower Drive Idler Bracket MTD-781-05062B
...
30
Idler Mounting Bracket MTD-781-05063A-0637
...
31
ENGAGEMENT CABLE BRACKET MTD-781-05096A
...
32
Drive Input Keeper Bracket MTD-781-05072-0637
...
33
Drive Output Keeper Bracket MTD-781-05075-0637
...
34
Blower Impeller Assembly MTD-631-04213
...
35
Hex Cap Screw, 3/8-24 x 2.25 MTD-710-1254
...
36
Lock Washer, 3/8 MTD-736-0217

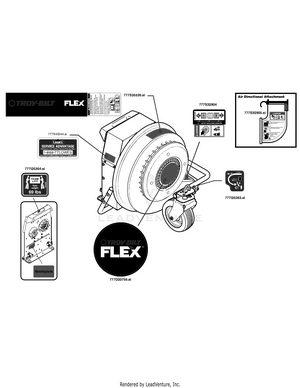

Label Map 23AACAAX711

...
...
777D20756
LABEL-BLOWER IMPELLER HSG FLEX MTD-777D20756
...
777I25364
LABEL-MOWER BLOWER WGHT 96LBS FLEX MTD-777I25364
...
777I25363
LBL:MWR:WHL ASSY:CASTER:LOCK MTD-777I25363
...
777S35539
LABEL-JET SWEEP BLOWER HSG FLEX MTD-777S35539
...
777S32905
LABEL-BLOWER CHUTE MTD-777S32905
...
777S32904
LABEL-LOUVER LEVER MTD-777S32904
...
777X43244
LABEL-LOWE'S SERVI MTD-777X43244
...
...
...
