Troy-Bilt 23AABA6X711 FLEX Snow Thrower (2017) FLEX

Model: 23AABA6X711 FLEX Snow Thrower (2017)

Back To Assemblies

Save Part Not Listed?
product name

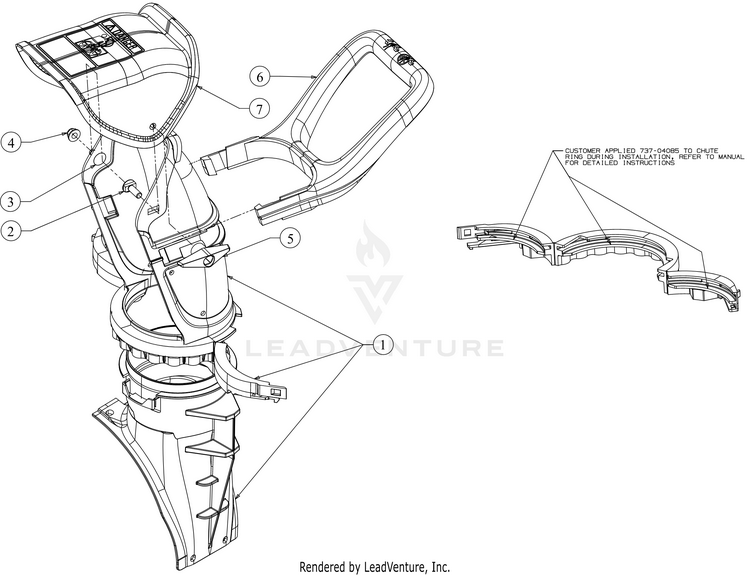

Chute

...
...
1
CHUTE ASSEMBLY MTD-984-05103
...
1
LOWER CHUTE Not Shown MTD-931-04127
...
1
CHUTE LOWER RING Not Shown MTD-931-04353
...
1
SPRING Not Shown MTD-932-04111
...
1
CHUTE-ADAPTOR Not Shown MTD-731-10679
...
2
CARRIAGE BOLT 5/16-18 x 1 MTD-710-04071
...
3
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
5
Knob MTD-720-0284
...
5
Lock Nut, 5/16-18 Not Shown MTD-712-0429
...
5
STAR KNOB 5/16 Not Shown MTD-720-04072A
...
6
CHUTE HANDLE MTD-731-04388A
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
LITHIUM GREASE MTD-937-04085
