Troy-Bilt 23AAAA8X711 FLEX Mower (2016) FLEX

Model: 23AAAA8X711 FLEX Mower (2016)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Accessory Rack MTD-29A30002711
...
xx
Operator's Manual MTD-769-10252A
...
xx
14.20" BLADE (MULCH) MTD-742-05130-0637
...
xx
Cub Cadet 28" BLADE SET Retail Packaged Part MTD-490-100-C133
...
xx
Genuine Factory Parts 28" BLADE SET Retail Packaged Part MTD-490-100-M133
...
xx
Belt (Deck) MTD-954-05103

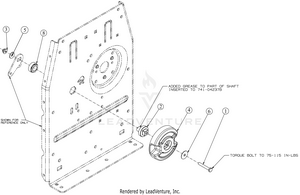

Clutch Assembly

...
...
1
HEX SCREW 1/4-20 x 1.75 MTD-710-0136
...
2
LINK CLUTCH SHAFT MTD-711-06533
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
IDLER LUG CLUTCH MTD-731-11463
...
5
SPRING WASHER BELL MTD-736-0270
...
6
FLAT WASHER MTD-736-3092
...
7
GREASE (NOT SERVICEABLE) MTD-NA
...
8
HEX FLANGE BEARING MTD-741-04237B

Frame Mount Bracket

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 1/4-20 x 1.0 MTD-710-05074
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
HANDLE MTD-731-10490
...
5
BUMPER PAD MTD-735-05069
...
6
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
7
SHOULDER SCREW MTD-938-1226
...
8
FRAME MOUNT BRACKET MTD-787-03177D-0638
...
9
SUPPORT BRACKET MTD-787-03195-0637

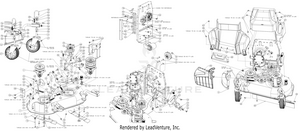

General Assembly

...
...
1
DECK SPINDLE HOUSING (W/O FTG) Not Shown MTD-719-07293-M
...
1
FLANGE NUT 5/8-18 Not Shown MTD-712-05134
...
1
BLADE SPINDLE SHAFT STAR 6.11 LG Not Shown MTD-738-1186A
...
1
SPACER- .792 x 1.060 x 1.860 Not Shown MTD-750-04936
...
1
SPACER .792 x 1.060 x 1.191 Not Shown MTD-750-06153
...
1
SPACER Not Shown MTD-750-06365
...
1
V-TYPE PULLEY 5.10 DIA Not Shown MTD-756-05086
...
1
SHIELD-BRG DECK Not Shown MTD-783-08435
...
1
SPINDLE ASSEMBLY MTD-918-07028
...
1
BALL BEARING Not Shown MTD-941-0919B
...
2
DECK SPINDLE HOUSING (W/O FTG) Not Shown MTD-719-07293-M
...
2
FLANGE NUT 5/8-18 Not Shown MTD-712-05134
...
2
SPACER- .792 x 1.060 x 1.860 Not Shown MTD-750-04936
...
2
SPACER Not Shown MTD-750-06365
...
2
SHIELD-BRG DECK Not Shown MTD-783-08435
...
2
BALL BEARING Not Shown MTD-941-0919B
...
35
FLANGE NUT 5/8-18 MTD-712-05134
...
2
SPACER :.795 x 1.062 x 1.015 Not Shown MTD-750-06414
...
2
SPINDLE ASSEMBLY DOUBLE PULLEY Not Shown MTD-756-05165
...
2
Spindle Assembly, 5.08 Dia. MTD-918-07088A
...
3
ANGLE GEARBOX MTD-918-07117
...
4
DOG CLUTCH ASSEMBLY MTD-931-05304
...
5
DRIVE PULLEY 6.03 DIA MTD-956-05005
...
6
DECK BRACKET ASSEMBLY MTD-961-05007A
...
7
28" DECK ASSEMBLY MTD-687-05091A
...
8
DECK LIFT ASSEMBLY MTD-687-05111A
...
9
MULCH PLUG ASSEMBLY MTD-687-05133C
...
33
NUT MTD-712-04065
...
10
CARRIAGE BOLT 3/8-16 x 1.75 GR5 Not Shown MTD-710-05376
...
10
NUT Not Shown MTD-712-04065
...
10
V-IDLER PULLEY A x 3.06 OD Not Shown MTD-756-04325
...
10
IDLER BRACKET Not Shown MTD-787-03421
...
10
PULLEY BRACKET ASSEMBLY MTD-987-05143
...
11
ROLLER SHAFT .75 x 5.44 Not Shown MTD-711-06428
...
11
CAP Not Shown MTD-726-0341
...
11
DECK ROLLER Not Shown MTD-731-3305
...
11
ROLLER BRACKET Not Shown MTD-787-03348-0637
...
11
ROLLER BRACKET ASSEMBLY MTD-987-05144
...
12
BRAKE WELD ASSEMBLY MTD-687-05146
...
13
CASTER BRACKET ASSEMBLY (LH) MTD-687-05216-0638
...
14
CASTER BRACKET ASSEMBLY (RH) MTD-687-05217-0638
...
15
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
16
SCREW 5/16-18 x .750 MTD-710-04484
...
17
SCREW 1/4-20 x .75 GR5 MTD-710-04666
...
18
SCREW 10-16 x .625 MTD-710-04669
...
19
SCREW 1/4-20 x .50 MTD-710-05073
...
20
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
21
SCREW 5/16-24 x .750 GR5 MTD-710-05339A
...
22
SCREW 1/4-20 X.500 MTD-710-0599
...
23
SCREW 5/16-18 x 1.00 MTD-710-0602
...
24
BOLT 3/8-16X2.25 GR5 MTD-710-06072
...
25
SCREW 1/4-10 x .750 MTD-710-06147
...
26
SCREW 3/8-16 x 1.25 GR5 MTD-710-0723
...
27
CASTER AXLE MTD-911-1146
...
28
Hex Lock Nut, 1/4-20 MTD-712-0291
...
29
HEX NUT MTD-712-0375
...
30
WING NUT MTD-712-0397A
...
31
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
32
FLANGE LOCK NUT MTD-712-04064
...
34
NUT MTD-712-04150
...
36
Hairpin Clip MTD-714-0104
...
37
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
38
HANDLE GRIP MTD-720-0311
...
39
VINYL CAP MTD-720-05010
...
40
WATER NOZZLE MTD-921-04041
...
41
PUSH CAP MTD-726-0214
...
42
CABLE RETAINER CLIP MTD-726-3055
...
43
DECK WASH NOZZLE MTD-731-07487
...
44
CHUTE DEFLECTOR MTD-731-10510A
...
45
TRAILSHIELD 23.00 MTD-731-10534A
...
46
LOWER COVER DECK 28" MTD-731-10948
...
47
UPPER COVER DECK 28" MTD-731-10949
...
48
LOWER COVER MTD-731-11373
...
49
COMPRESSION SPRING MTD-932-0306A
...
50
EXTENSION SPRING MTD-932-0429A
...
51
DECK HEIGHT LEVER MTD-732-04418C
...
52
EXTENSION SPRING MTD-732-05322
...
53
EXTENSION SPRING MTD-732-05369
...
54
END PLUG MTD-735-0246A
...
55
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
56
FLAT WASHER MTD-736-0366
...
57
FLAT WASHER MTD-736-04426
...
58
HUB CAP WASHER .406 x 1.92 x .060 MTD-736-3040
...
59
GREASE (NOT SERVICEABLE) MTD-NA
...
60
GREASE FITTING MTD-937-3000
...
61
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
62
SHOULDER SPACER MTD-738-04162C
...
63
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
64
SHOULDER SCREW MTD-938-0481A
...
65
Shoulder Screw .375 X .380 X 1/4-20 MTD-738-0974
...
66
SHOULDER SCREW .50 MTD-738-1014
...
67
SHOULDER SCREW .37 MTD-738-1023A
...
68
FLANGE BEARING MTD-941-0225
...
69
BALL BEARING MTD-741-04430A
...
70
BEARING:FLANGE .631 ID MTD-741-0685
...
71
14.20" BLADE (MULCH) MTD-742-05130-0637
...
71
Cub Cadet 28" BLADE SET Retail Packaged Part MTD-490-100-C133
...
71
Genuine Factory Parts 28" BLADE SET Retail Packaged Part MTD-490-100-M133
...
72
Clutch Cable MTD-946-05176A
...
73
ROD HOOK MTD-747-06506
...
74
LOCK PIN MTD-747-0924
...
75
DECK BELT A SEC x 43.10 MTD-954-05103
...
76
IDLER PULLEY MTD-756-05117
...
77
PIVOT LEVER BRACKET (POWDER BLACK) MTD-787-06323-0637
...
78
DECK CABLE BRACKET MTD-787-03175B
...
79
DECK CABLE BRACKET MTD-787-03181
...
80
GRASSBAG BRACKET MTD-787-03232B-0637
...
81
LIFT LINK BRACKET MTD-787-03249A-0637
...
82
LIFT BRACKET MTD-787-03252A-0637
...
83
BRACKET MTD-787-03338
...
84
KEEPER BRACKET MTD-787-03382B-0637
...
85
DRIVE ENGAGEMENT BRACKET MTD-787-03422
...
86
BELT KEEPER BRACKET MTD-787-03424-0637
...
87
HEIGHT ADJUSTMENT BRACKET MTD-787-03425-0638
...
88
KEEPER BRACKET MTD-787-03428A-0637
...
89
KEEPER BRACKET MTD-787-03429A-0637
...
90
GEAR BOX SPACER MTD-787-03431

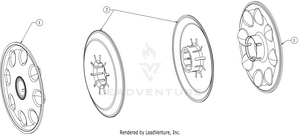

Hubcaps

...
...
1
HUBCAP MTD-731-07197
...
1
HUBCAP MTD-931-05305A
...
2
DUST COVER 7" MTD-731-09479

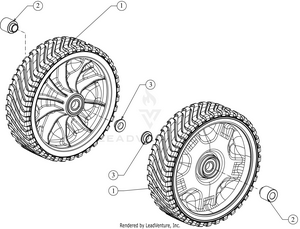

Wheels

...
...
1
WHEEL ASSEMBLY (7 x 2) MTD-634-04606
...
1
BALL BEARING MTD-741-04430A
...
2
CASTER HUB MTD-750-06036A
...
3
CASTER HUB MTD-750-06065
...
...
...
