Troy-Bilt 23AAAA8X711 FLEX Mower (2015) FLEX

Model: 23AAAA8X711 FLEX Mower (2015)

Save
 Part Not Listed?Part Not Listed?
product name

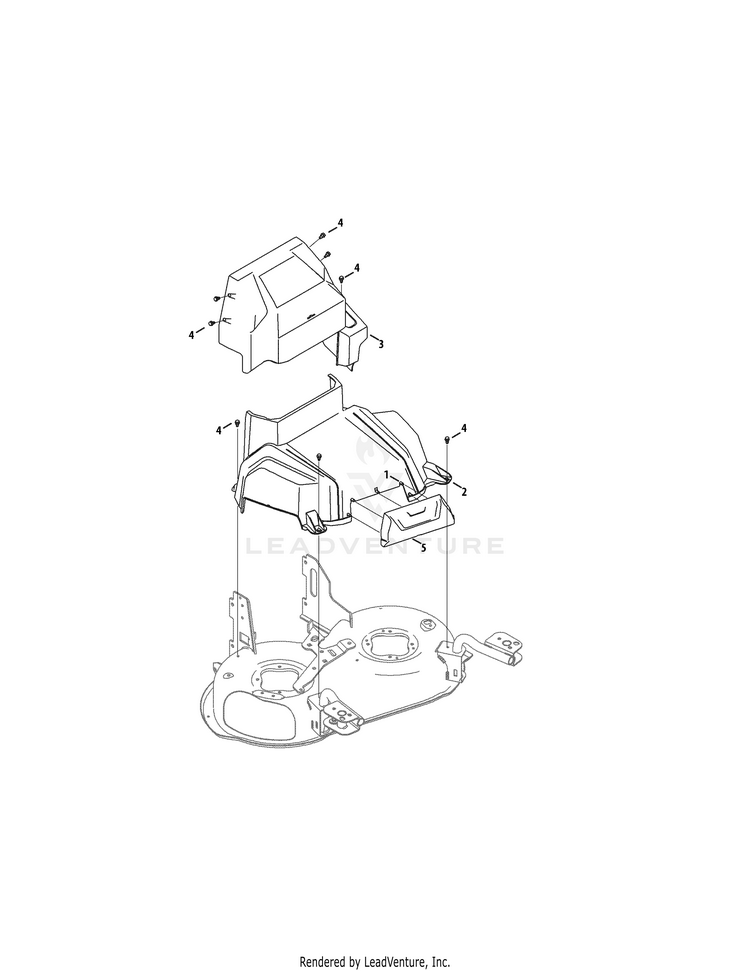

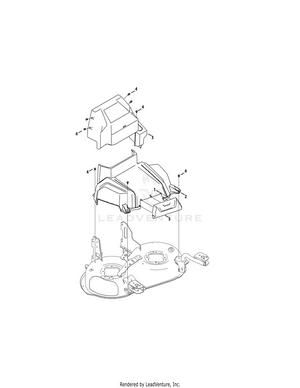

FLEX Mower Attachment-Deck Covers

...
...
1
Screw, 1/4-10 x .75 MTD-710-06147
...
2
Deck Cover, Lower MTD-731-10948
...
3
Deck Cover, Upper MTD-731-10949
...
4
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
5
Lower Deck Cover MTD-731-11373

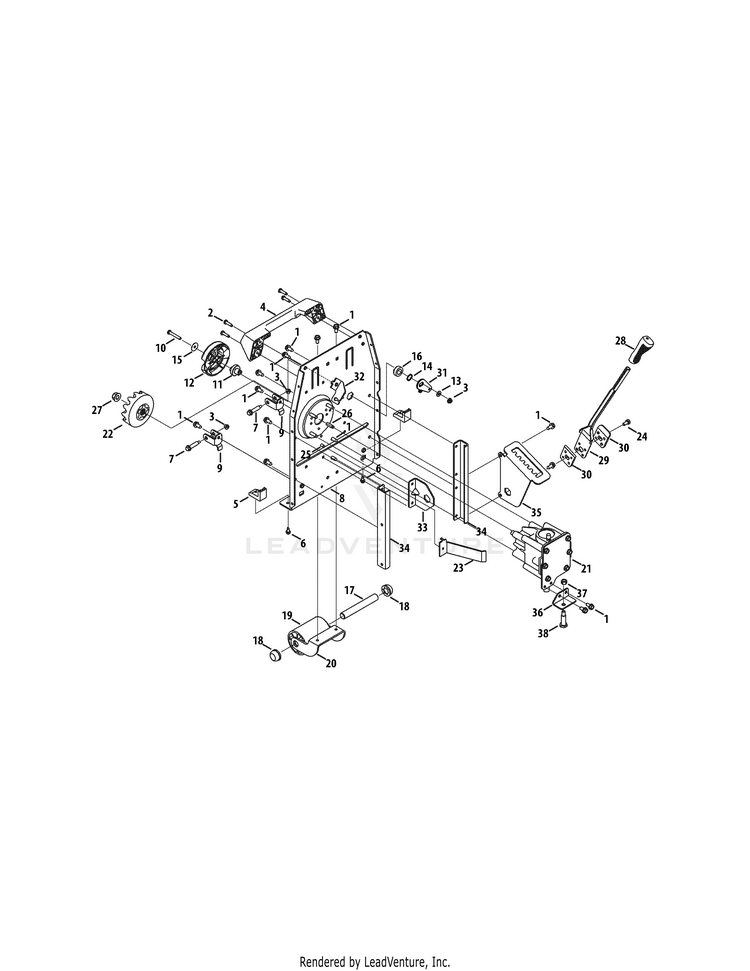

FLEX Mower Attachment-Drive Attachment

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Self-tapping Screw, 1/4-20 x 1.00 MTD-710-05074
...
3
Flange Lock Nut, 1/4-20 MTD-712-04064
...
4
Rear Handle MTD-731-10490
...
5
Bumper Pad MTD-735-05069
...
6
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
7
Shoulder Screw,, 1/4-20 x .375 x 1.355 MTD-938-1226
...
8
FRAME MOUNT BRACKET MTD-787-03177D-0638
...
9
Support Bracket MTD-787-03195-0637
...
10
Hex Cap Screw, 1/4-20 x 1.75 MTD-710-0136
...
11
Clutch Link Shaft MTD-711-06319
...
12
Idler Clutch MTD-731-10493A
...
13
SPRING WASHER BELL MTD-736-0270
...
14
Wave Washer, .65 ID x .855 x .010 MTD-736-04353
...
15
Flat Washer, .265 x 1.0 x .030 MTD-736-3092
...
16
Hex Flange Bearing 5/8 PM MTD-741-04237B
...
17
Roller Shaft, .75 x 5.440 MTD-711-06428
...
18
Push Cap, 3/4 MTD-726-0341
...
19
Deck Roller MTD-731-3305
...
20
Roller Bracket MTD-787-03348-0637
...
21
Gearbox MTD-918-07117
...
22
Clutch Assembly MTD-931-05304
...
23
Keeper Bracket MTD-787-03382B
...
24
Hex Cap Screw, 5/16-24 x .750 MTD-710-05339A
...
25
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
26
Self-Tapping Screw, 5/16-18 x 1.00 MTD-710-0602
...
27
Flange Lock Nut, 1/2-13 MTD-712-04150
...
28
Grip Handle, 1/2 MTD-720-0311
...
29
DECK HEIGHT LEVER MTD-732-04418C
...
30
PIVOT LEVER BRACKET (POWDER BLACK) MTD-787-06323-0637
...
31
Deck Engagement Bracket MTD-787-03175B
...
32
Deck Cable Bracket MTD-787-03181
...
33
Shift Lift Bracket MTD-787-03252A-0637
...
34
Deck Channel Bracket MTD-787-03338
...
35
Height Adjustment Bracket MTD-787-03425
...
36
Keeper Bracket MTD-787-03429A
...
37
Hex Lock Nut, 3/8-16, Centerlock MTD-712-0375
...
38
Shoulder Screw, .500 x 1.25 x 3/8-16 MTD-738-1014

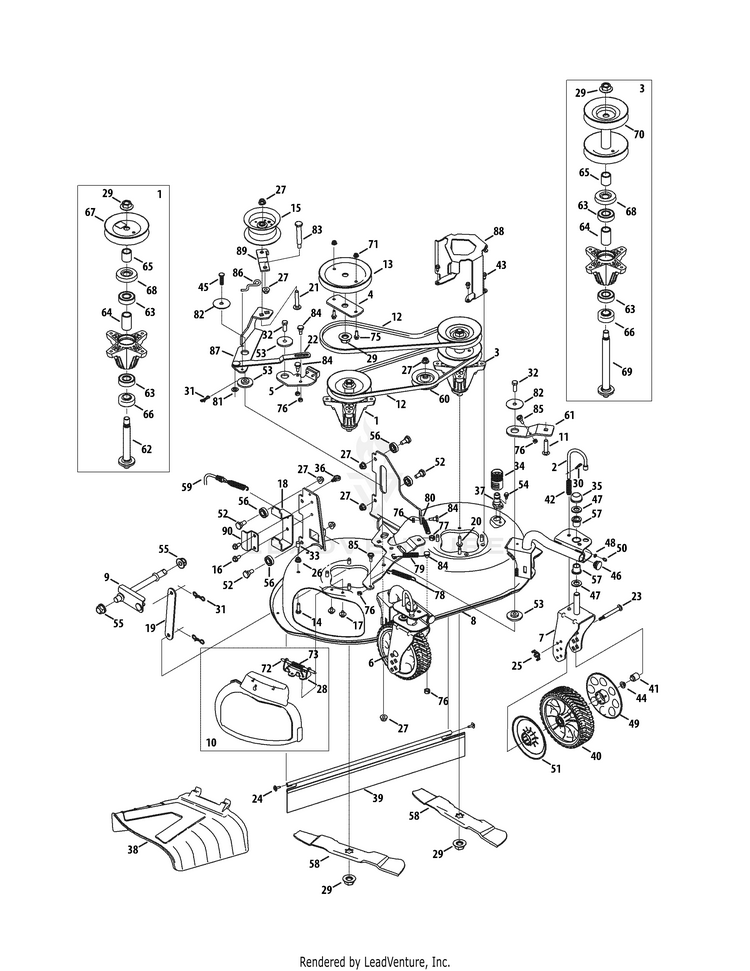

FLEX Mower Attachment-Mower Deck

...
...
1
Spindle Assembly, 5.08 Dia. MTD-918-07028
...
2
Lock Pin MTD-747-0924
...
3
Spindle Assembly, 5.08 Dia. MTD-918-07088A
...
4
Spacer, .79 x 1.25 x .175 MTD-787-03431
...
5
Deck Bracket Assembly MTD-961-05007A
...
6
CASTER BRACKET (RH) MTD RED MTD-682-9024A-0638
...
7
CASTER BRACKET (LH) MTD RED MTD-682-9026A-0638
...
8
Deck MTD-687-05091A-0638
...
9
Deck Lift Assembly MTD-687-05111A
...
10
MULCH PLUG ASSEMBLY MTD-687-05133C
...
11
Carriage Bolt, 3/8-16 x 1.75 MTD-710-05376
...
12
Belt, A-Section, 43.10 MTD-954-05103
...
13
DRIVE PULLEY 6.03 DIA MTD-956-05005
...
14
Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0376
...
15
Idler Pulley, 3.125 OD MTD-756-05117
...
16
SCREW 5/16-18 x .750 MTD-710-04484
...
17
Screw, 1/4-20 x .500 MTD-710-05073
...
18
GRASSBAG BRACKET MTD-787-03232B-0637
...
19
Lift Link Bracket MTD-787-03249A-0637
...
20
Self-Tapping Screw, 5/16-18 x 1.00 MTD-710-0602
...
21
Carriage Bolt, 3/8-16 x 2.25 MTD-710-06072
...
22
Brake weld Assembly MTD-687-05146
...
23
Caster Axle MTD-911-1146
...
24
Screw, #10-16 x .625" MTD-710-04669
...
25
Wing Nut, 1/4-20 MTD-712-0397A
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
Flange Lock Nut, 3/8-16 MTD-712-04065
...
28
Chute Bracket MTD-NA
...
29
Hex Flange Nut, 5/8-18 MTD-712-05134
...
30
Hairpin Clip MTD-714-0104
...
31
Bow-Tie Cotter Pin MTD-714-04040
...
32
Hex Cap Screw, 3/8-16 x 1.00 MTD-710-0514
...
33
Cap, .290 x .500 MTD-720-05010
...
34
Water Nozzle Adapter MTD-921-04041
...
35
Push Cap, 5/8 MTD-726-0214
...
36
Cable Retainer Clip MTD-726-3055
...
37
Deck Wash Nozzle MTD-731-07487
...
38
CHUTE DEFLECTOR MTD-731-10510A
...
39
Trailshield MTD-731-10534A
...
40
Front Wheel, 7 x 2 MTD-634-04606
...
41
CASTER HUB MTD-750-06036A
...
42
Compression Spring, .531 x 1.75 Lg. MTD-932-0306A
...
43
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
44
Caster Hub, Short MTD-750-06065
...
45
Hex Screw, 3/8-16, 1.25, Gr5 MTD-710-0723
...
46
End Plug MTD-735-0246A
...
47
Flat Washer, .640 x 1.12 x .125 MTD-736-0366
...
48
Flat Washer, .200 x .370 x .060 MTD-736-04426
...
49
Hubcap, 7" MTD-931-05305A
...
50
Grease Fitting, 3/16 MTD-937-3000
...
51
Dust Cover, 7" MTD-731-09479
...
52
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
53
Shoulder Spacer, .884 x .190 MTD-738-04162C
...
54
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
55
Hex Flange Bearing MTD-941-0225
...
56
Ball Bearing, 50 x 1.125 x .312 MTD-741-04430A
...
57
Flange Bearing, .631 ID MTD-741-0685
...
58
14.20" BLADE (MULCH) MTD-742-05130-0637
...
58
Cub Cadet 28" BLADE SET Retail Packaged Part MTD-490-100-C133
...
58
Genuine Factory Parts 28" BLADE SET Retail Packaged Part MTD-490-100-M133
...
59
Clutch Cable MTD-946-05176A
...
60
Idler Pulley, V-Type x 3.06 MTD-756-04325
...
61
Idler Bracket MTD-787-03421
...
62
Spindle Shaft, 6.11 Long MTD-738-1186A
...
63
Ball Bearing MTD-941-0919B
...
64
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
65
Spacer, .795 x 1.062 x 1.015 MTD-750-06414
...
66
Spacer, .79 x 1.82 x .79 MTD-750-06365
...
67
Deck Pulley MTD-756-05086
...
68
Bearing Shield MTD-783-08435
...
69
Spindle Shaft, 8.27 Long MTD-NA
...
70
Pulley Spindle Assembly, 5.08 Dia. MTD-756-05165
...
71
Flange Lock Nut, 1/4-20 MTD-712-04064
...
72
Hinge Pin MTD-747-0710A
...
73
Torsion Spring MTD-732-1014C
...
75
Hex Flange Screw, 1/4-20 x .75 MTD-710-04666
...
76
Hex Lock Nut, 1/4-20 MTD-712-0291
...
77
Hex Lock Nut, 3/8-16, Centerlock MTD-712-0375
...
78
Extension Spring, .5 x 3.97 MTD-932-0429A
...
79
Extension Spring, .500 Dia. x 4.233 MTD-732-05322
...
80
Extension Spring, .500 Dia. x 3.445 MTD-732-05369
...
81
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
82
Flat Washer, .406 x 1.92 x .060 MTD-736-3040
...
83
Shoulder Screw, .5 x 2.62, 3/8-16 MTD-938-0481A
...
84
Shoulder Screw .375 X .380 X 1/4-20 MTD-738-0974
...
85
Shoulder Screw, .375 x .280, 1/4-20 MTD-738-1023A
...
86
Spring Hook Rod MTD-747-06506
...
87
Drive Bracket MTD-787-03422
...
88
Keeper Bracket MTD-787-03424
...
89
Keeper Bracket MTD-787-03428A
...
90
Retainer Bracket MTD-787-03467

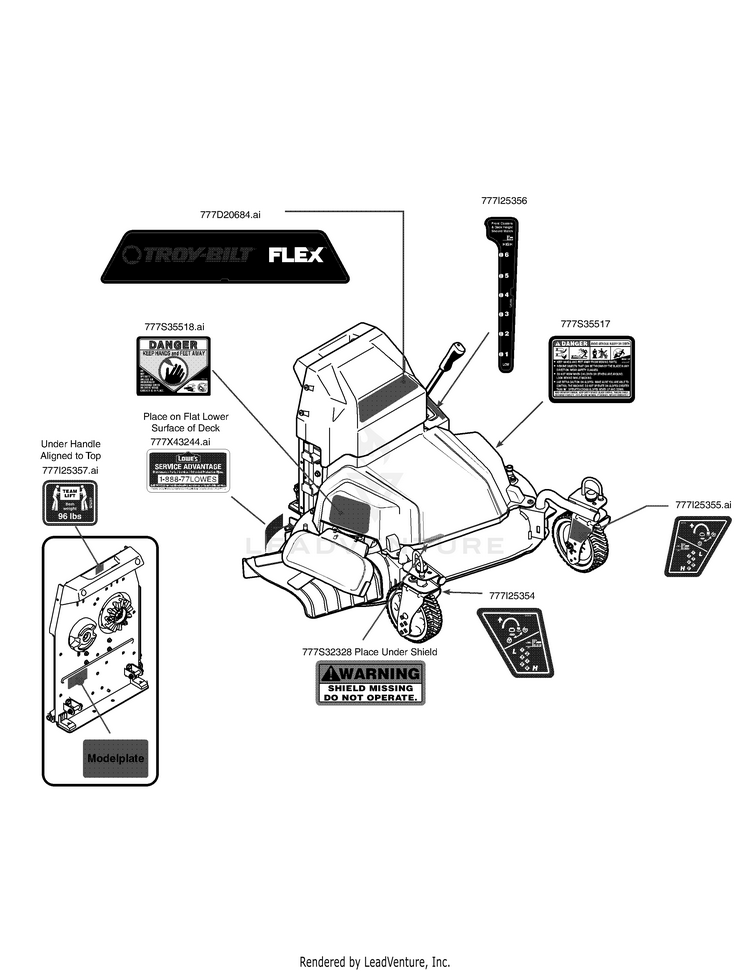

Label Map 23AAAA8X711

...
...
777D20684
LABEL:MOWER DECK TOP MTD-777D20829
...
777I25354
LABEL-MOWER CASTER WHL ASY FLEX MTD-777I25354
...
777I25355
LABEL-MOWER CASTER WHL ASM FLEX MTD-777I25355
...
777I25356
LABEL:MOWER DECK HEIGHT ADJ MTD-777I25376
...
777I25357
LABEL-MOWER DECK COVER WGHT FLEX MTD-777I25357
...
777S32328
DECAL-WARNING 50' MTD-777S32328
...
777S35517
LBL:MWR:DECK CVR:DNGR MTD-777S35517
...
777S35518
LBL:MWR:DECK CVR:DNGR MTD-777S35518
...
777X43244
LABEL-LOWE'S SERVI MTD-777X43244
