Troy-Bilt 23A-1AXA711 FLEX Unit (2015) FLEX

Model: 23A-1AXA711 FLEX Unit (2015)

Back To Assemblies

Save Part Not Listed?
product name

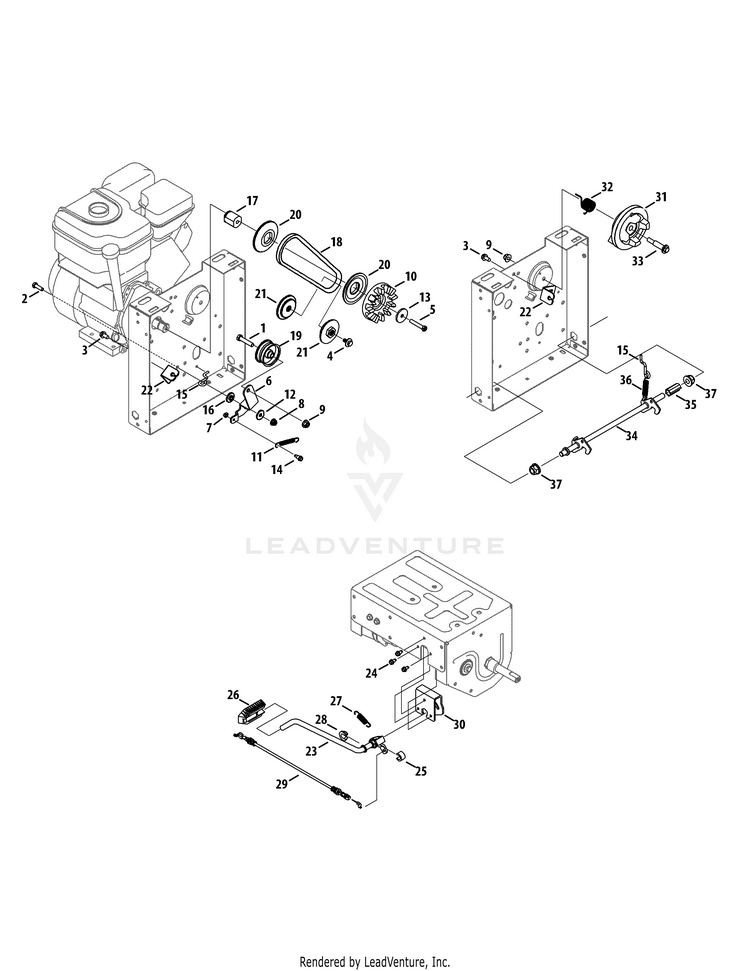

FLEX Base Unit-Engine Drive

...
...
1
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
2
Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0376
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Hex Cap Screw, 5/16-24 x .750 MTD-710-05339A
...
5
SCREW 5/16-24 x 1.88 GR8 MTD-710-06303
...
6
IDLER BRACKET MTD-787-03345A
...
7
Hex Lock Nut, 1/4-20 MTD-712-0291
...
8
Flange Lock Nut, 5/16-18 MTD-712-04063
...
9
Flange Lock Nut, 3/8-16 MTD-712-04065
...
10
Clutch MTD-717-05249
...
11
Extension Spring, 2.675 MTD-732-05150A
...
12
Flat Washer, 1.0 OD x .331 ID MTD-736-04117
...
13
Flat Washer, .340 x 1.50 x .150 MTD-736-0505
...
14
Shoulder Screw MTD-738-1225
...
15
ROD HOOK MTD-747-06556
...
16
Shoulder Spacer MTD-748-0234
...
17
SPACER MTD-750-06352
...
18
V-Belt MTD-954-05070
...
19
Idler Pulley, 2.46 OD MTD-756-0117
...
20
HALF PULLEY 3.4 DIA MTD-756-05103
...
21
HALF PULLEY 2.6 DIA MTD-756-05118
...
22
PTO Cable Bracket MTD-787-03297-0637
...
23
Lever Rod Assembly MTD-647-05051B-0638
...
24
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
25
Spacer, .500 ID x .500 Lg MTD-731-05470
...
26
COVER-KICKSTAND NLAUD MTD-731-11136A
...
27
Extension Spring, .50 OD x 2.142 MTD-732-05259
...
28
Hex Flange Bearing, .500 ID MTD-741-04136B
...
29
Control Cable, 12.75" MTD-946-05194A
...
30
KICKSTAND BRACKET MTD-787-03277B
...
31
Lug Actuator MTD-731-10483A
...
32
Torsion Spring, RH MTD-732-05272
...
33
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
34
Lock Latch Assembly MTD-687-05104A
...
35
SPACER-SNAP NLAUD MTD-731-10603
...
36
Extension Spring, .500 Dia x 2.733 Lg MTD-732-04580
...
37
Flange Bearing, .50 ID MTD-741-04453A
