Troy-Bilt 23A-1AXA711 FLEX Unit (2015) FLEX

Model: 23A-1AXA711 FLEX Unit (2015)

Back To Assemblies

Save Part Not Listed?
product name

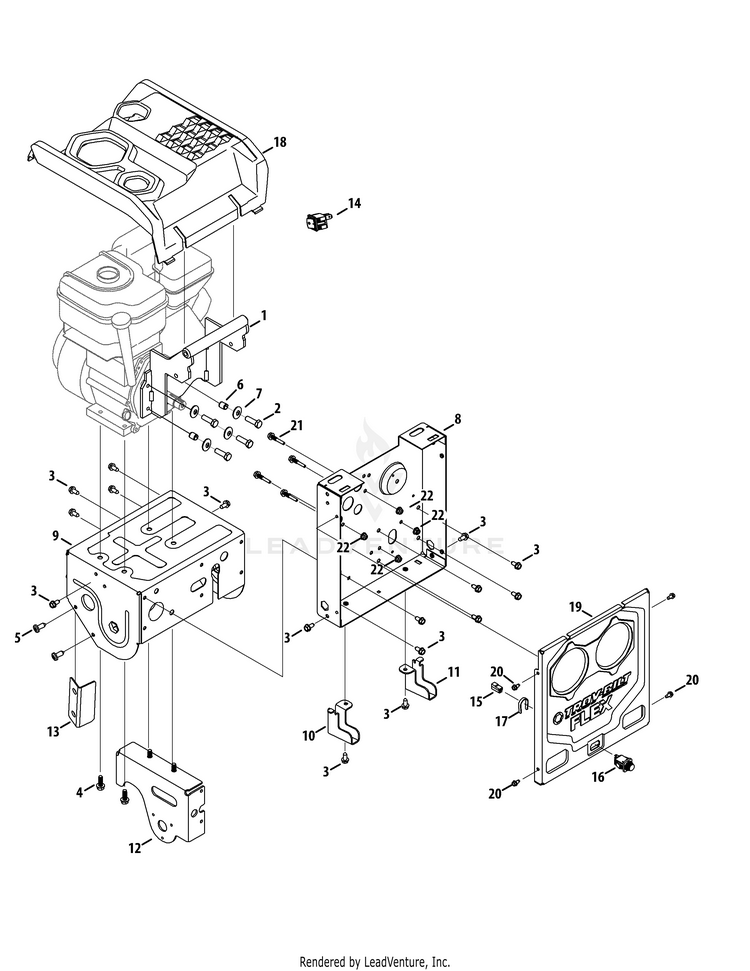

FLEX Base Unit-Drive Housing

...
...
1
UPPER CATCHER (POWDER BLACK) MTD-687-05116-0637
...
2
Hex Cap Screw, 5/16-24 x 1.00 MTD-710-0117A
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Hex Washer Screw, 3/8-16 x 1.00 MTD-710-04683C
...
5
Self Tapping Screw, 5/16-18 x .750 MTD-710-05424
...
6
DOWEL MTD-715-05037
...
7
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
8
DRIVE HOUSING FRAME (MTD RED) MTD-787-03230B-0638
...
9
LOWER FRAME (MTD RED) MTD-787-03258A-0638
...
10
Bracket MTD-787-03354A-0637
...
11
Bracket, LH MTD-787-03356A-0637
...
12
SUPPORT BRACKET SHAFT MTD-787-03360-0637
...
13
LOWER FRAME COVER (POWDER BLACK) MTD-787-03365-0637
...
14
Switch, ON/OFF MTD-725-05280
...
15
Accessory Harness MTD-725-06287
...
16
Switch, N.C. MTD-725-06291A
...
16
SPACER PLATE MTD-787-03418
...
17
Clip MTD-783-06448
...
18
TOP COVER MTD-731-10709
...
19
FRONT COVER MTD-787-03276
...
20
FRONT COVER (POWDER BLACK) MTD-787-03276-0637
...
21
Keeper Rod, .25 OD x 1.60 Lg MTD-711-06112
...
22
Flange Lock Nut, 5/16-18 MTD-712-04063
