Troy-Bilt 23A-1AXA711 FLEX Unit (2015) FLEX

Model: 23A-1AXA711 FLEX Unit (2015)

Back To Assemblies

Save Part Not Listed?
product name

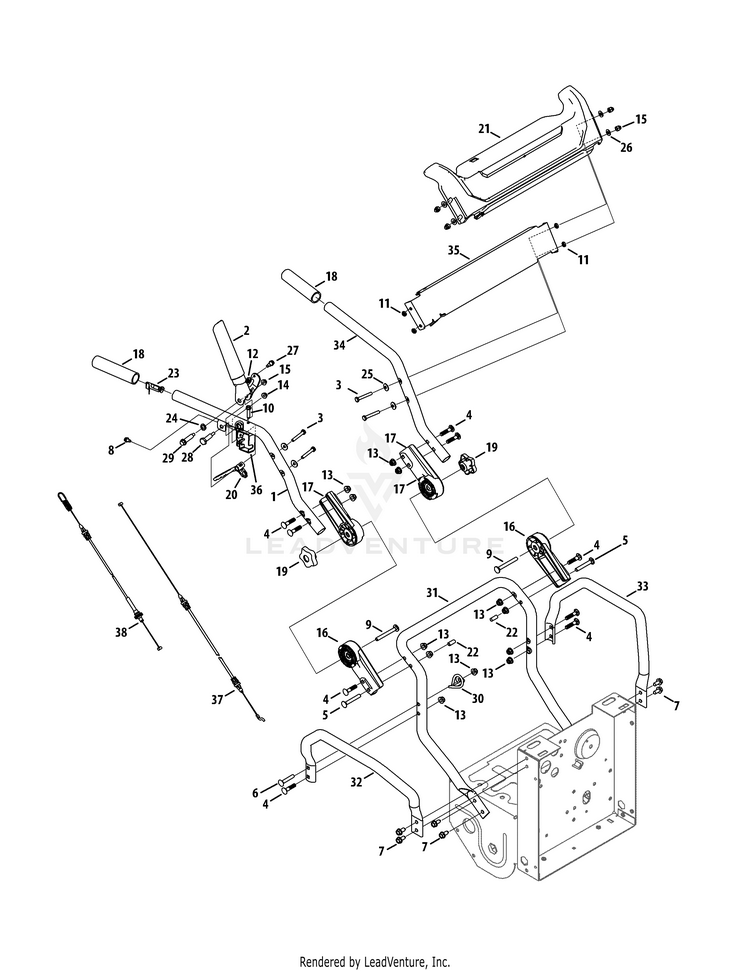

FLEX Base Unit-Handles

...
...
1
UPPER HANDLE ASSEMBLY (RH)(MTD RED) MTD-649-05060A-0638
...
2
LEVER ASSEMBLY(RH) MTD-687-05136A
...
3
Hex Cap Screw, 1/4-20 x 1.75 MTD-710-0136
...
4
Carriage Bolt, 5/16-18 x 1.50 MTD-710-0262
...
5
Carriage Screw, 5/16-18 x 2.25 MTD-710-0572
...
6
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
7
Self Tapping Screw, 5/16-18 x .750 MTD-710-05424
...
8
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
9
Carriage Bolt, 5/16-18 x 2.75 MTD-710-06075
...
10
Self-tapping Screw, 1/4-20 x 1.25 MTD-710-3288
...
11
Jam Nut, 1/4-20 MTD-912-0298
...
12
Nut, 1/4-28, Lock MTD-712-0392
...
13
Flange Lock Nut, 5/16-18 MTD-712-04063
...
14
Flange Lock Nut, 1/4-20 MTD-712-04064
...
15
Cap Lock Nut, 1/4-20 MTD-712-0442
...
16
Lower Handle Adjustment MTD-719-05180
...
17
UPPER ADJUST HANDLE MTD-719-05195A
...
18
Grip, 1.0 x 5.0 MTD-720-0274
...
19
Star Knob, 5/16-18 MTD-720-05028
...
20
Drive Lever MTD-731-11124A
...
21
HANDLE COVER MTD-731-11125
...
22
Cap MTD-NA
...
23
SPRING MTD-732-05328
...
24
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
25
SPRING WASHER BELL MTD-736-0270
...
26
Washer, Flat, .25 x .630 x .0515 MTD-736-0463
...
27
SHOULDER SCREW MTD-738-04425
...
28
Shoulder Screw, .374 x 1.16 MTD-938-0572
...
29
Shoulder Screw MTD-738-1226
...
30
Rope Guide MTD-747-06516A
...
31
LOWER HANDLE (MTD RED) MTD-749-05271A-0638
...
32
CART FRAME TUBE (RH)(MTD RED) MTD-749-05327-0638
...
33
CART FRAME TUBE (LH)(MTD RED) MTD-749-05328-0638
...
34
UPPER HANDLE (LH) (MTD RED) MTD-749-05404-0638
...
35
HANDLE PANEL MTD-787-03375B-0637
...
36
Cable Support Bracket MTD-787-03443-0638
...
37
Engagement Cable MTD-946-05219
...
38
Drive Cable MTD-946-05220
