Troy-Bilt 21B-643B066 Super Bronco CRT (2007) Roto-Tiller

Model: 21B-643B066 CRT Roto-Tiller (2007)

Back To Assemblies

Save Part Not Listed?
product name

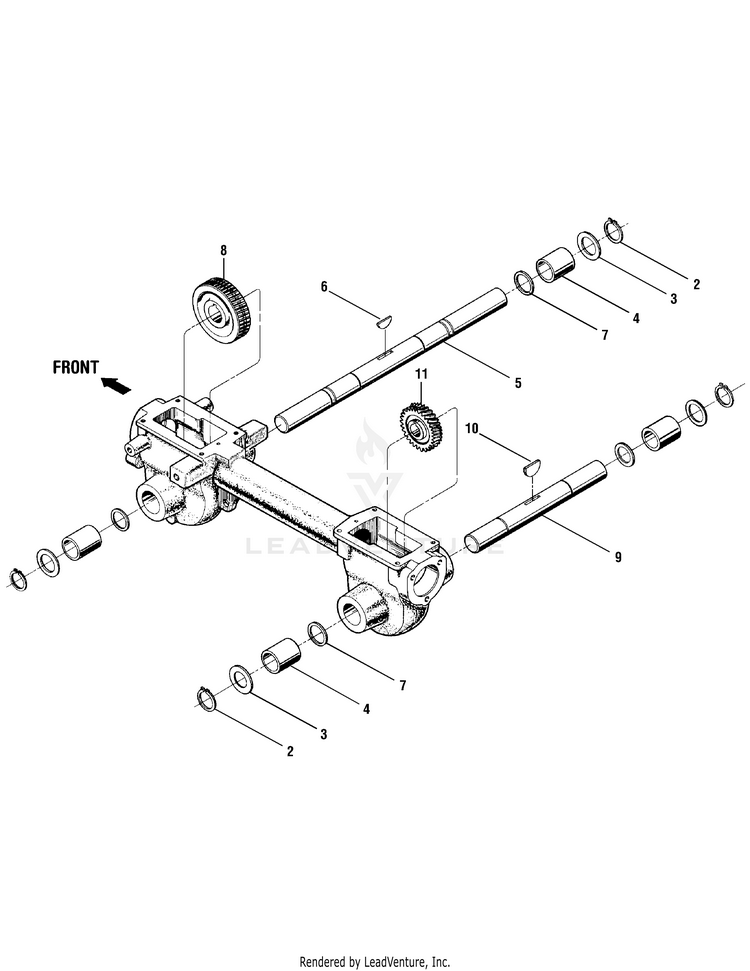

Transmission

...
...
2
Retaining Ring MTD-716-04104
...
3
Washer, 1.375 x 1.015 x .062 Use as required to obtain between .005" and .030" allowable end-play MTD-736-04309
...
3
Washer, 1.375 x 1.015 x .03 Use as required to obtain between .005" and .030" allowable end-play MTD-736-04260
...
3
Washer, 1.375 x 1.015 x .015 Use as required to obtain between .005" and .030" allowable end-play MTD-736-04259
...
3
Washer, 1.375 x 1.015 x .01 Use as required to obtain between .005" and .030" allowable end-play MTD-736-04258
...
3
Flat Washer, 1.375 x 1.015 x .005 Use as required to obtain between .005" and .030" allowable end-play MTD-736-04257
...
4
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
5
WHEEL SHAFT TUFFY Bronco Model MTD-911-04512
...
5
KIT-SERVICE WHEEL SHAFT 711-04092 Super Bronco Model MTD-753-05578
...
5
WHEEL SHAFT BRONCO Pro-Line Model MTD-911-04486
...
6
Key, .25 x 1.062 MTD-714-04059
...
7
Flat Washer, 1/234 x 1.015 x .062 MTD-736-04310
...
8
RH Gear Worm, 61T MTD-917-04380
...
9
TILLER TINE SHAFT MTD-911-04078
...
10
Woodruff Key MTD-GW-1104
...
11
LH Gear Worm, 30T MTD-917-04381
