Troy-Bilt 21B-643B066 Super Bronco CRT (2007) Roto-Tiller

Model: 21B-643B066 CRT Roto-Tiller (2007)

Back To Assemblies


product name

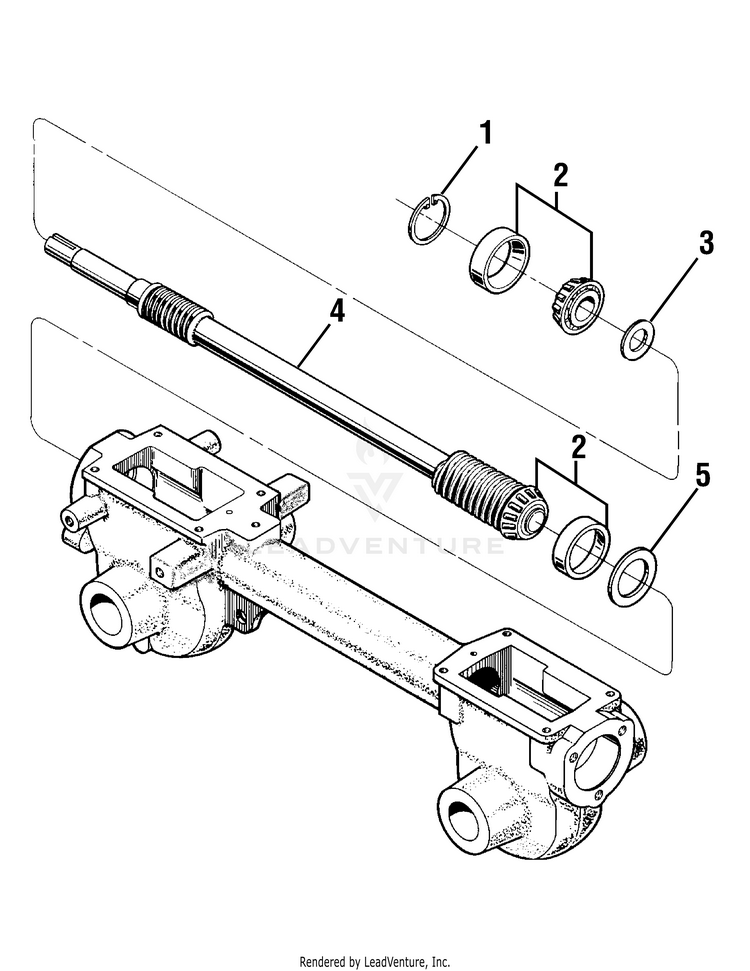

Drive Shaft

...
...
1
Retaining Ring, Int MTD-716-04102

...
2
Bearing, Tapered Roller (with race) MTD-941-0107

...
3
Flat Washer, 1.25 x .75 x .06 MTD-736-04304

...
4
DRIVE SHAFT MTD-911-04110

...
5
Washer, Flat, 1.50 x 1.75 x .010 Use as required to obtain between .005" and .015" allowable end-play MTD-736-04308

...
5
Washer, Flat, 1.50 x 1.75 x .03 Use as required to obtain between .005" and .015" allowable end-play MTD-736-04307

...
5
Washer, Flat, 1.50 x 1.75 x .005 Use as required to obtain between .005" and .015" allowable end-play MTD-736-04306

...
5
Washer, Flat, 1.50 x 1.75 x .062 Use as required to obtain between .005" and .015" allowable end-play MTD-736-04305

...
xx
Shim Set Incl. The following shims: two #1224-1, two #1224-2 & one #1224-4 MTD-GW-1325C
Schematic Image Zoomed
