Troy-Bilt 21AE683F766 8hp Elec (2006) Roto-Tiller

Model: 21AE683F766 8HP Elec Roto-Tiller (2006)

Back To Assemblies

Save Part Not Listed?
product name

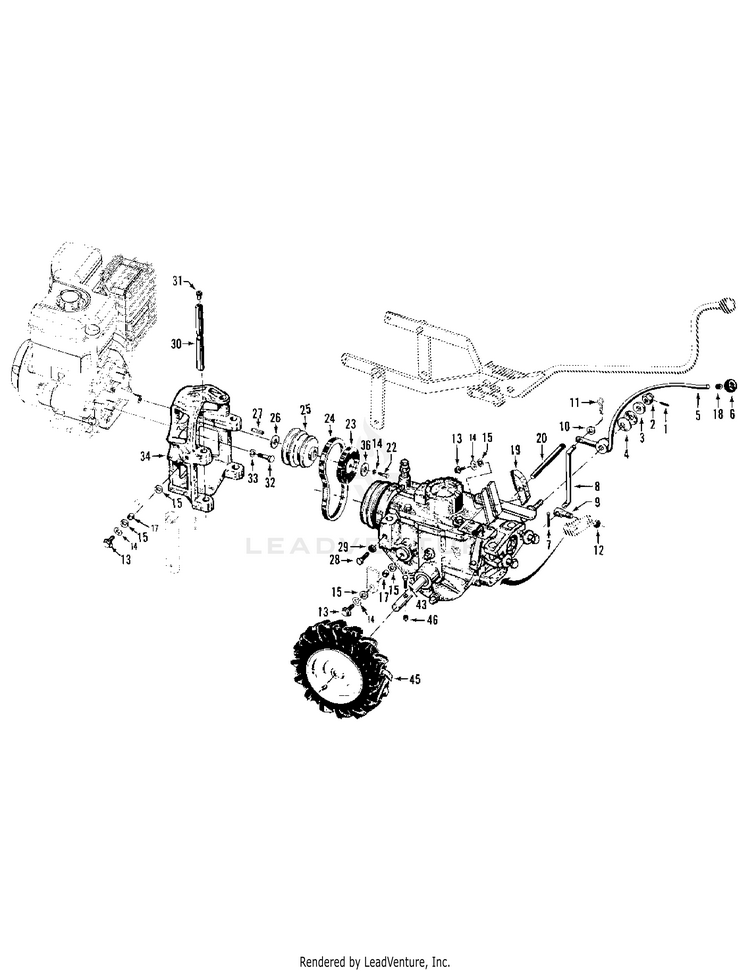

Wheel Speed Lever, Belt Drive System, Engines, Wheels

...
...
1
Pin-spring, 1/8" (Wheel Speed Lever 1-18) MTD-GW-9362
...
2
HEX NUT 1/2-20 MTD-GW-9838
...
3
Washer-shoulder, 1/2" MTD-GW-9934
...
4
Washer-disc spring MTD-GW-9932
...
5
Lever-wheel speed shift MTD-GW-2628
...
6
Knob-wheel speed shift lever MTD-1902240
...
7
Pin-cotter, 3/32" x 1" MTD-GW-9317
...
8
Connecting rod, wheel speed shift lever (Incl Ref.7 & Ref. 9 MTD-GW-1515
...
9
Swivel-connecting rod MTD-GW-1033
...
10
FLAT WASHER MTD-736-0275
...
11
Pin-hair cotter MTD-714-04048
...
12
Hex Lock Nut, 5/16-18 MTD-912-0158
...
13
Bolt-flanged hex hd, 3/8-16, x 1" MTD-710-0514
...
14
Lockwasher-spring lock, 3/8" MTD-736-0169
...
15
Washer-flat, 3/8", SAE MTD-736-3050
...
17
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug MTD-GW-1113-1099
...
18
Ring-retaining (tolerance ring) MTD-GW-9120
...
19
BELT ADJUSTMENT BLOCK (Belt Drive System 19-27) MTD-GW-2102A
...
20
Rod- belt adjust., 7" with measuring gauge MTD-GW-2100
...
21
LABEL-FREE HAND HE MTD-777I20942
...
22
Bolt-hex hd., 3/8-24 x 1-1/2" MTD-710-0459A
...
23
Disc-reverse MTD-756-04171
...
24
Belt-forward drive (no substitute due to extra strength required) MTD-GW-9245
...
25
Pulley-engine power take off MTD-619-04124
...
26
Shim-engine pulley, 1/16" As Req'd MTD-736-04192
...
26
Shim-as above, 1/32" As Req'd MTD-736-04187
...
27
Key-engine pulley, 3 /16" sq. x 2-1/2" MTD-GW-9303
...
28
Bolt-hexhd., 5/16-18 x 1", Grade 5 (Engines and Engine Mount 27-36) MTD-710-0376
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
BAR- engine mounting MTD-GW-1034A
...
31
Plug-thread protector, red plastic MTD-GW-9147
...
32
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting MTD-710-0672
...
33
LOCK WASHER 5/16 MTD-936-0119
...
34
Motor Mount MTD-719-04222-0637
...
36
Washer, flat, .406 x 1.0 x .105 MTD-736-3052
...
36
LABEL-HOT SURFACE MTD-777S30647
...
43
Screw, Hex, 1/4-20 x 1-1/2" J (Wheel Assemblies 43-46) MTD-710-0606
...
45
WHEEL ASSEMBLY (16 X 4.6 X 8) MTD-934-04231
...
46
Nut, Hex Flange,1/4-20 MTD-712-04064
