Troy-Bilt 21AE683F766 8hp Elec (2006) Roto-Tiller

Model: 21AE683F766 8HP Elec Roto-Tiller (2006)

Back To Assemblies

Save Part Not Listed?
product name

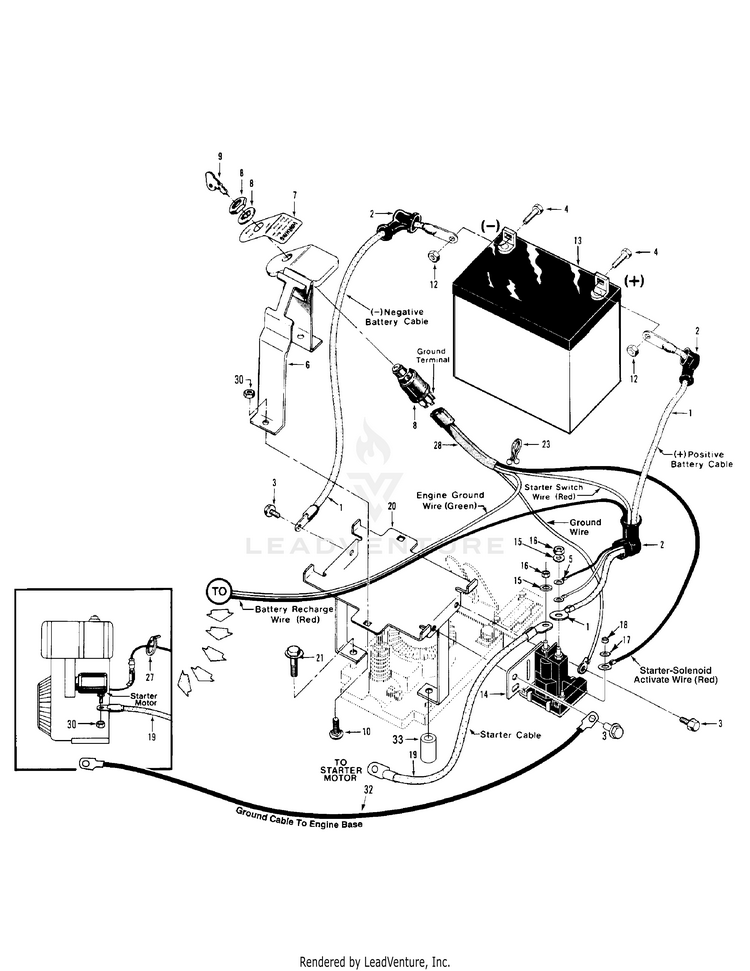

Electric Start System

...
...
1
Cable-battery, positive and negative terminals MTD-GW-96515
...
2
BOOT-BATTERY CABLE MTD-GW-97020
...
3
Screw-TT, 1/4-2 x 2 MTD-710-0599
...
4
SCREW-FLANGE MTD-1186309
...
5
WIRE ASSEMBLY-RECHARGI MTD-1901894
...
6
KEYSWITCH W/DECAL MTD-1900873
...
7
Decal-ignition switch instructions MTD-777S30648
...
8
Ignition Switch MTD-925-0267B
...
9
Key MTD-925-0201
...
10
Bolt-carriage, 1/4-20 x 1-1/4" MTD-1186073
...
11
Lockwasher-spring lock, 1/4" MTD-936-0329
...
12
HEX NUT MTD-712-3006
...
13
BATTERY MTD-925-1707D
...
14
Solenoid (Incl. Nuts and Washers for Cables and Wires) MTD-GW-96514099
...
15
LOCK WASHER 5/16 MTD-936-0119
...
16
NUT-5/16X 24 MTD-912-3057
...
17
EXTERNAL WASHER #10 MTD-936-0147
...
18
Nut-hex, #10-32, MTD-GW-9853
...
19
Cable-solenoid to starter motor MTD-GW-96510
...
20
BRKT-BATTERY OPC PNT MTD-GW-2571
...
21
HH Cap Screw, 3/8-16 x 2.75" MTD-710-3022
...
23
TIE-TWIST LOCK MTD-GW-9265
...
27
Tie-plastic MTD-725-0157
...
28
Wire Harness & Connecting Terminal Assembly MTD-725-04346
...
30
Locknut-hex, 1/4-20 MTD-1186389
...
32
Cable-ground, solenoid to engine block MTD-1901202
...
33
Spacer MTD-750-0748
