Troy-Bilt 21AE682L766 Big Red (2010) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2010)

Back To Assemblies

Save Part Not Listed?
product name

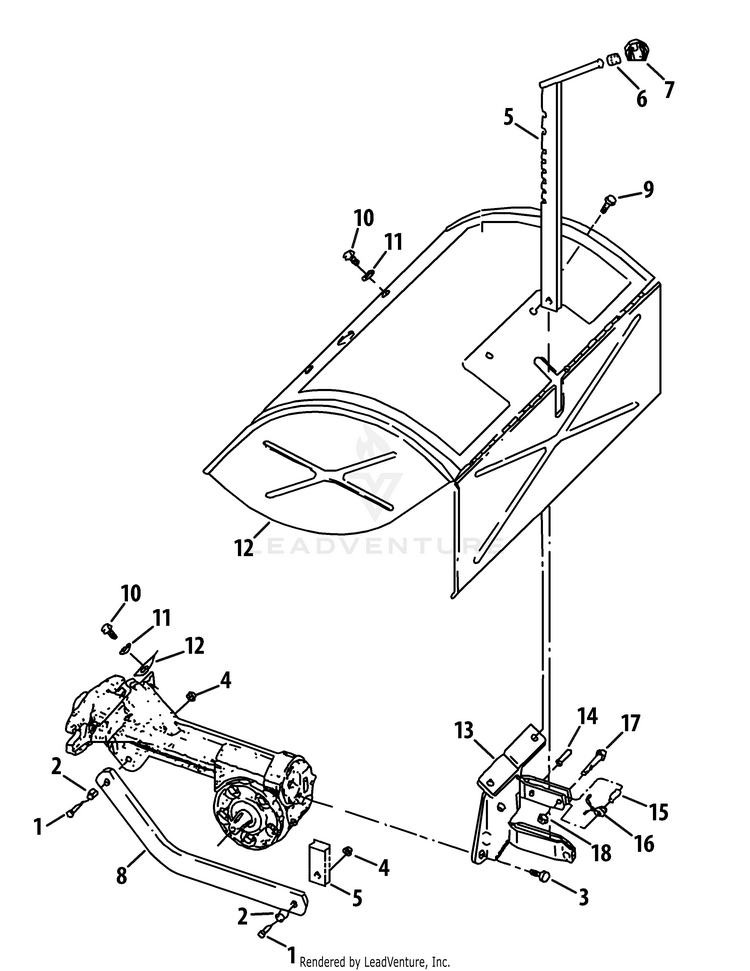

Depth Regulator & Tine Shield

...
...
1
Hex Bolt, 3/8"-16 x 1-1/4" MTD-710-3005
...
2
Bushing Spacer, .5 x .375 x .3 MTD-GW-1113-1099
...
3
Hex Flange Bolt, 5/16"-18 x .625 MTD-710-04049
...
4
Flangelock Nut, 3/8"-16 MTD-712-04065
...
5
Depth Regulator MTD-1900864
...
6
Retaining Ring MTD-GW-9120
...
7
Depth Regulator Knob MTD-GW-9119
...
8
Depth Regulator Bar Drag MTD-1900867001
...
9
Thread-forming Screw, 1/4"-20 x 1/2" MTD-710-0599
...
10
Hex Flange Bolt, 5/16"-18 MTD-710-04043
...
11
Washer, 1.12 x .34 x .06 MTD-GW-9929
...
12
Hood MTD-1904563
...
13
Hood Bracket MTD-GW-2525
...
14
Roll Pin (Spirol), 1/4" x 1" MTD-715-04034
...
15
Split Spacer MTD-750-04556
...
16
Spring MTD-732-04320
...
17
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
18
Locknut, 1/4"-20 MTD-712-04064
