Troy-Bilt 21AE682L766 Big Red (2010) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2010)

Back To Assemblies

Save Part Not Listed?
product name

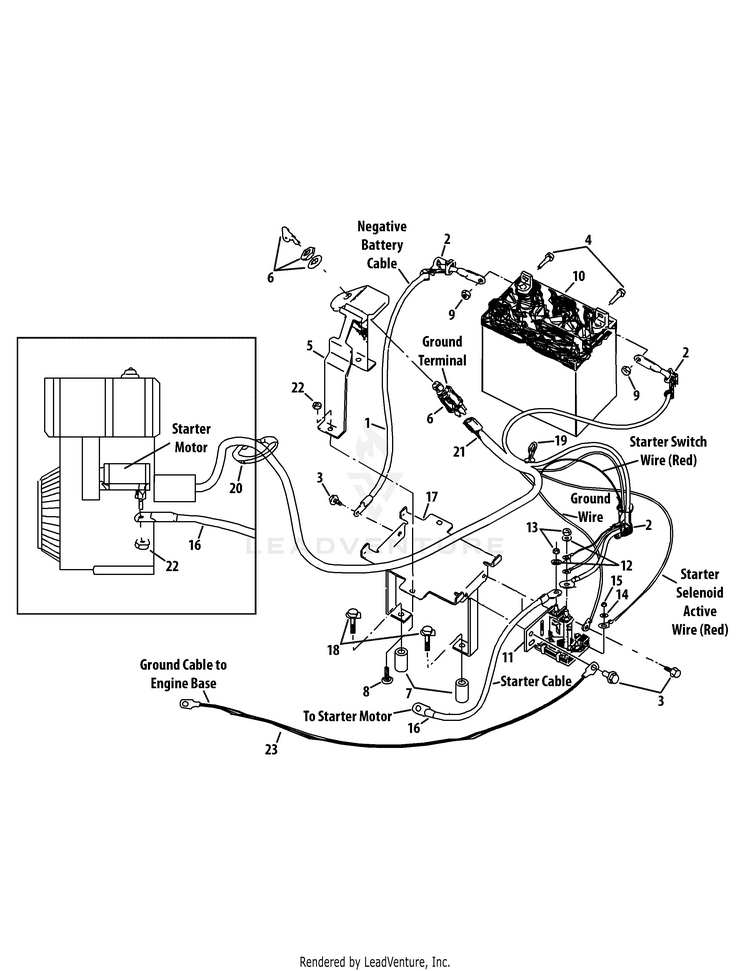

Electric Start System

...
...
1
Battery Cable MTD-GW-96515
...
2
BOOT-BATTERY CABLE MTD-GW-97020
...
3
TT-Screw, 1/4"-2 x 1/2" MTD-710-0599
...
4
SCREW-FLANGE MTD-1186309
...
5
Battery Hold-down Clamp w/ Att. Key Switch Plate MTD-1900873
...
6
Key Switch (Incl. 2 Keys) MTD-925-0267B
...
6
Ignition Key Not shown MTD-925-0201
...
7
Spacer MTD-750-0748
...
8
Carriage Bolt, 1/4"-20 x 1-1/4" MTD-1186073
...
9
HEX NUT MTD-712-3006
...
10
BATTERY MTD-925-1707D
...
11
Starter Solenoid MTD-GW-96514099
...
12
Lockwasher, 5/16" MTD-936-0119
...
13
NUT-5/16X 24 MTD-912-3057
...
14
EXTERNAL WASHER #10 MTD-936-0147
...
15
Hex Nut, #10-32 MTD-GW-9853
...
16
Battery Cable MTD-GW-96510
...
17
Battery Bracket MTD-GW-2571
...
18
Hex Head Screw, 3/8"-16 x 2.75" MTD-710-3022
...
19
TIE-TWIST LOCK MTD-GW-9265
...
20
Plastic Tie MTD-725-0157
...
21
Wire Harness & Connecting Terminal Assembly MTD-725-04346
...
22
Flangelock Nut, 1/4"-20 MTD-1186389
...
23
Ground Cable MTD-1901202
