Troy-Bilt 21AE682L766 Big Red (2010) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2010)

Back To Assemblies

Save Part Not Listed?
product name

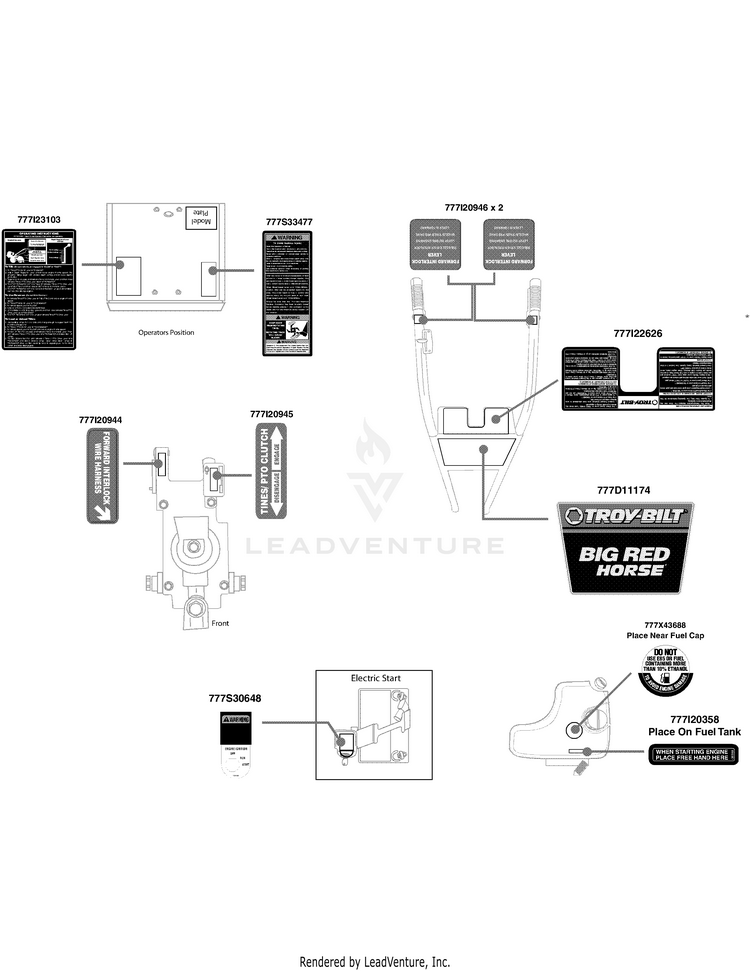

Label Map Big Red Horse

...
...
777I23103
LABEL-TILLER 600 TINE SHIELD MTD-777I23103
...
777S33477
LABEL-TLR/680:TN/SHLD:WRNG MTD-777S33477
...
777I20944
LABEL-FORWARD INTR MTD-777I20944
...
777I20945
LABEL-TINES/PTO CLUTCH TBILT TILLER MTD-777I20945
...
777S30648
LABEL-ENGINE IGNIT MTD-777S30648
...
777I20358
LBL-PLACE HAND HERE MTD-777I20358
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D11174
LABEL-TILLER HANDLE BIG RED MTD-777D11174
...
777I22626
LABEL:TILLER HANDLE 680 MTD-777I22626
...
777I20946
LABEL-FORWARD INTRLK TBILT TILLER MTD-777I20946
