Troy-Bilt 21AE682L766 Big Red (2009) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2009)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Seal - Oil MTD-921-04035

Washer - Flat 1.50 X MTD-736-04306

Bearing - Cup MTD-941-04299

Bearing - Cone MTD-941-04298

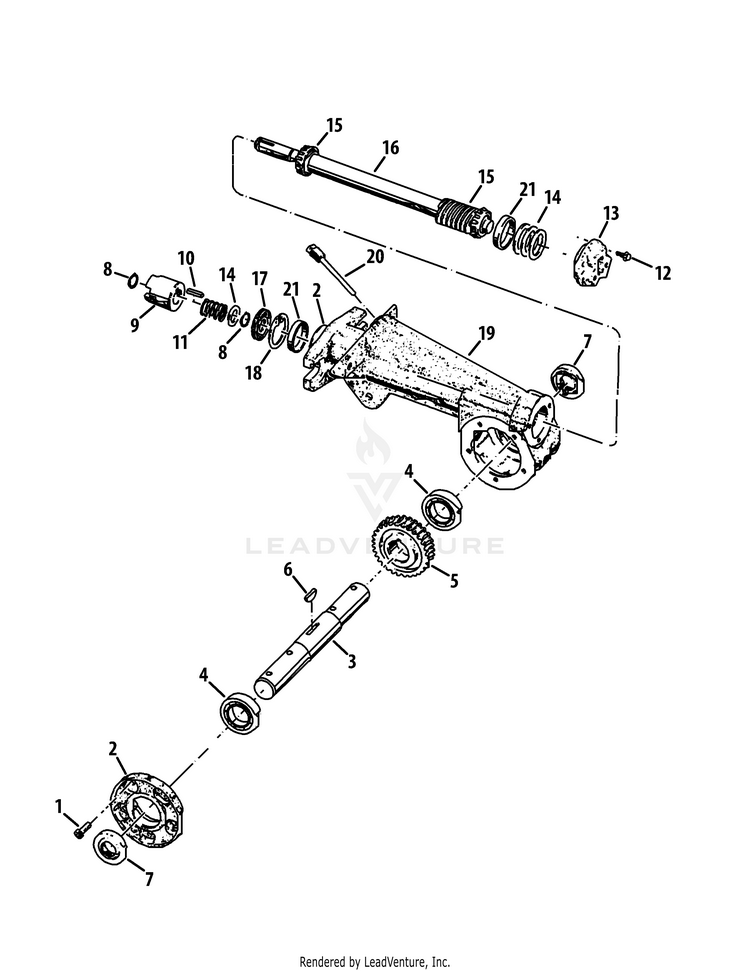

Tiller Shaft Assembly

Self-Sealing Screw, 1/4"-20 x 5/8" These Screws have a special Sealing design and cannot be reused. Replaces with new hardware. MTD-1915068

Tiller Housing Cover MTD-GW-20873

Tine Shaft MTD-911-04082

Ball Bearing MTD-941-3037

Worm Gear MTD-1901976

Woodruff Key MTD-GW-1104

Oil Seal MTD-921-04035

Retaining Ring-external MTD-716-0101

Dog Clutch MTD-718-04614

Key, 3/16 sq. x 1 MTD-GW-9301

COMPRESSION SPRING .766 ID x 1.50 TILR MTD-732-04022

Self-Sealing Screw, 1/4"-20 x 7/8" These Screws have a psecial Sealing design and cannot be reused. Replaces with new hardware. MTD-1915069

Cap MTD-718-04406

Flat Washer, 1.75 x 1.5 x .062 Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft. MTD-736-04305

Flat Washer, 1.75 x 1.5 x .005 Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft. MTD-736-04306

Flat Washer, 1.75 x 1.5 x .03 Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft. MTD-736-04307

Flat Washer, 1.75 x 1.5 x .01 Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft. MTD-736-04308
