Troy-Bilt 21AE682L766 Big Red (2009) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2009)

Back To Assemblies

Save Part Not Listed?
product name

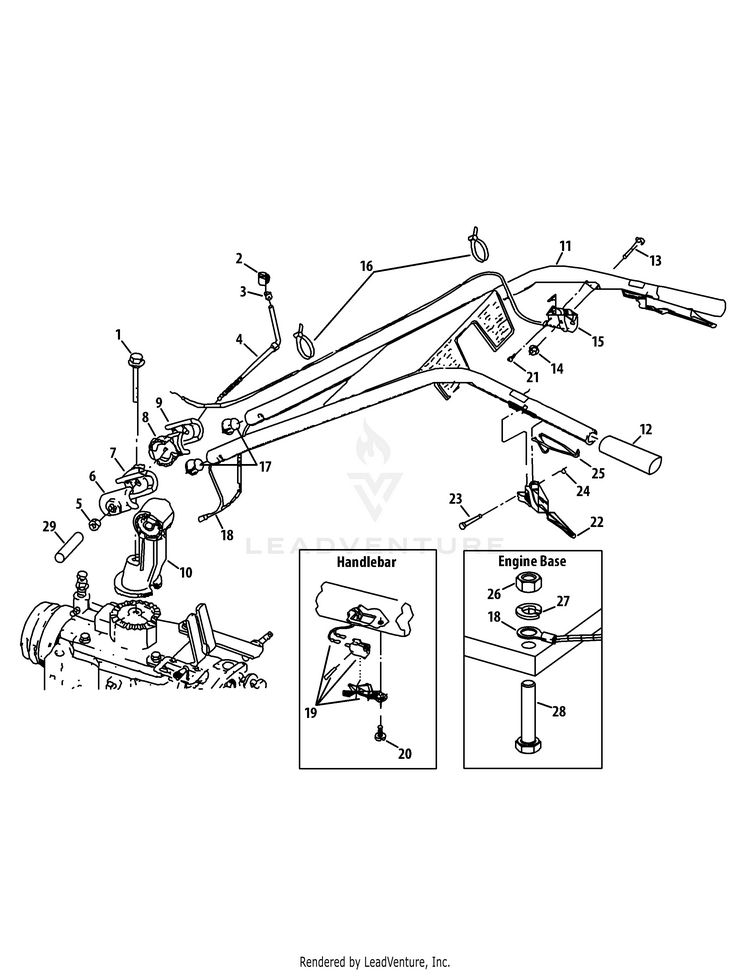

Handle Assembly

...
...
1
Hex Bolt, 1/2-13 x 3-1/2 MTD-GW-9548
...
2
Handlebar Height Adjustment Knob MTD-GW-9119
...
3
Retaining Ring MTD-GW-9120
...
4
Handlebar Height Adjustment Stud MTD-GW-1881
...
5
HEX NUT MTD-712-0206
...
6
Handlebar Hgt, Adj. Clamp (LT) MTD-1900854010
...
7
Handlebar Hgt. Adj. Ratchet (LT) MTD-1900856010
...
8
Handlebar Hgt. Adj. Ratchet (RT) MTD-1900857010
...
9
Handlebar Hgt. Adj. Clamp (RT) MTD-1900855010
...
10
Handlebar Mounting Base MTD-1900858010
...
11
Handlebars MTD-649-04020-0638
...
12
Handlebars Grip MTD-720-04083
...
13
SCREW-CARRIAGE MTD-1918111
...
14
Hex Nut, 1.4h-20 MTD-1186389
...
15
Clutch Cable - FWD MTD-1909286P
...
16
Plastic Tie MTD-725-0157
...
17
Wire Harness Retainer Plug MTD-GW-9219
...
18
Handlebar Wire Harness Assembly MTD-725-04367
...
19
Switch Assembly MTD-625-04097
...
20
Pan Head Screw, #10-16 x 1/2 MTD-710-0779A
...
21
SCREW:10-32X.5 MTD-1964
...
22
Operator Presence Control Lever MTD-786-04003-0638
...
23
Pivot Pin MTD-GW-9199
...
24
Retaining Ring MTD-GW-9514
...
25
Return Spring MTD-732-04864A
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
Washer, 5/16 MTD-936-0119
...
28
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
29
Plug Cap MTD-1901835
