Troy-Bilt 21AE682L766 Big Red (2005) Roto-Tiller

Model: 21AE682L766 Big Red Roto-Tiller (2005)

Back To Assemblies


product name

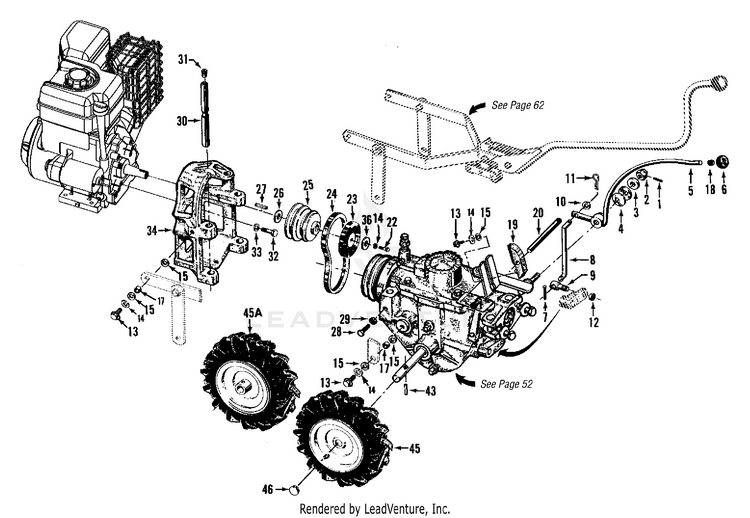

Wheel Speed Lever, Belt Drive System, Engines, Wheels

...
...
xx
WHEEL SPEED LEVER MTD-NA

...
1
Pin-spring, 1/8" MTD-GW-9362

...
2
HEX NUT 1/2-20 MTD-GW-9838

...
3
Washer-shoulder, 1/2" MTD-GW-9934

...
4
Washer-disc spring MTD-GW-9932

...
5
LEVER - wheel speed shift MTD-GW-2628

...
6
Knob-wheel speed shift lever MTD-1902240

...
7
Pin-cotter, 3/32" x 1" MTD-GW-9317

...
8
Connecting rod, wheel speed -shift lever (Incl. Ref. 7 & Ref. 9) MTD-GW-1515

...
9
Swivel-connecting rod MTD-GW-1033

...
10
FLAT WASHER MTD-736-0275

...
11
PIN - hair cotter MTD-714-04048

...
12
Hex Lock Nut, 5/16-18 MTD-912-0158

...
13
Bolt-flanged hex hd., 3/8-16 x 1" MTD-710-0514

...
14
Lockwasher-spring lock, 3/8" MTD-736-0169

...
15
Washer-flat, 3/8", S.A.E. MTD-736-3050

...
17
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug MTD-GW-1113-1099

...
18
Ring-retaining (tolerance ring) MTD-GW-9120

...
xx
BELT DRIVE SYSTEM MTD-NA

...
19
BELT ADJUSTMENT BLOCK MTD-GW-2102A

...
20
Rod- belt adjust., 7" with measuring gauge MTD-GW-2100

...
21
LABEL-FREE HAND HE MTD-777I20942

...
22
Screw, 3/8-24 x 1.75 MTD-710-0539

...
23
DISC ONLY-reverse, rubber rimmed MTD-756-04171

...
24
Belt-forward drive (No substitute due to extra strength required) MTD-GW-9245

...
25
PULLEY- engine P.T.O. (Power Take Off) MTD-619-04124

...
26
SHIM - engine pulley, 1/16" thick MTD-736-04187

...
26
SHIM - same as above, 1/32" thick MTD-736-04192

...
27
Key-engine pulley, 3/16"sq. x 2-1/2" MTD-GW-9303

...
xx
ENGINES AND ENGINE MOUNT MTD-NA

...
28
Bolt-hex hd., 5/16-18 x 1", Grade 5 MTD-710-0376

...
29
HEX NUT 5/16-18 MTD-712-3010

...
30
BAR- engine mounting MTD-GW-1034A

...
31
Plug-thread protector, red plastic MTD-GW-9147

...
32
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting MTD-710-0672

...
33
LOCK WASHER 5/16 MTD-936-0119

...
34

...
36
Washer, flat, .406 x 1.0 x .105 MTD-736-3052

...
xx
LABEL-HOT SURFACE MTD-777S30647

...
xx
WHEEL & TIRE ASSEMBLIES MTD-NA

...
43
SPRING PIN .312X1. MTD-1915072

...
45
WHEEL ASSEMBLY- Left-Hand bar tread, left side, 4:80 x 8" tubeless tire with valve stem, on one-piece steel wheel For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward. MTD-1915056

...
45A
WHEEL ASSEMBLY- Right-Hand bar tread. Same as above but for right side of tiller For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward. MTD-1915057

...
46
HUB CAP MTD-1902020
