Troy-Bilt 21AE666M766 Pony (2005) Roto-Tiller

Model: 21AE666M766 Pony Roto-Tiller (2005)

Back To Assemblies

Save Part Not Listed?
product name

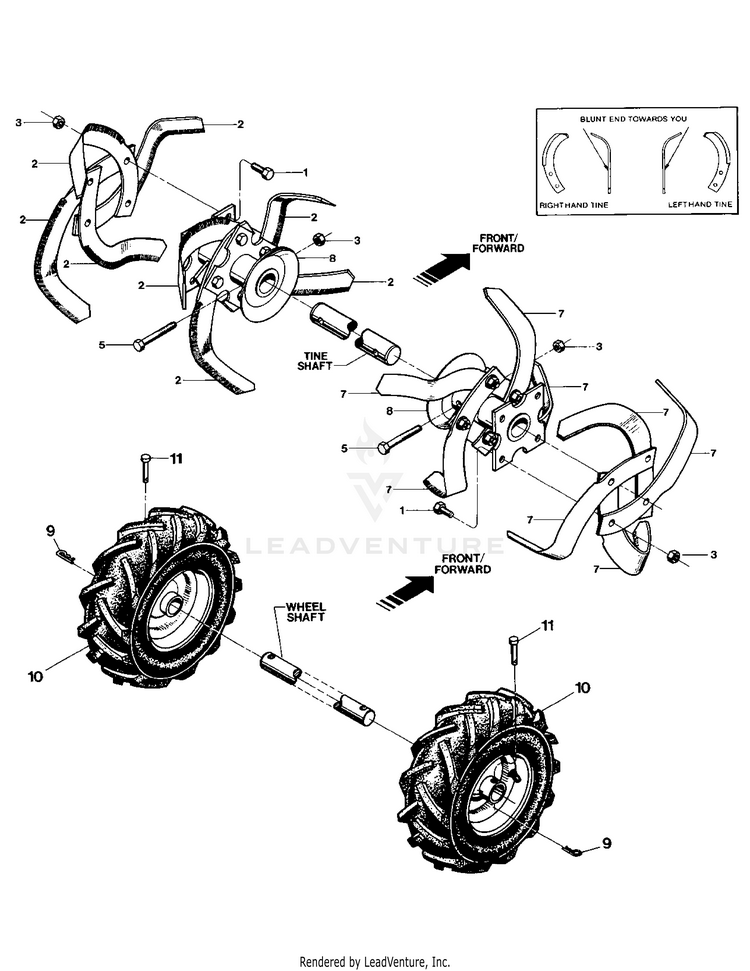

Bolo Tines, Wheels

...
...
1
Hex Hd. Screw, 3/8-16 x 1 GRADE 5 MTD-710-0514
...
2
Tines - LH MTD-742-04223-0637
...
3
Hex Locknut, 3/8-16 MTD-712-3000
...
5
Hex Hd. Screw, 3/8-16 x 2, Grade 8 MTD-710-3096
...
7
Tines - RH MTD-742-04224-0637
...
8
Tine Holder MTD-686-04067-0638
...
9
PIN - hair cotter MTD-714-04048
...
10
WHEEL MTD-1917487
...
11
Clevis Pin MTD-711-04126
...
xx
CAST IRON TINE HOLDER KIT (Incl. eight ea. right hand and left hand tines, and sixteen ea. Refs. 1 and 3) MTD-1901118A
...
xx
TINE-HARD FACED LT (see Note) MTD-GW-2475-1001
...
xx
TINE-FACES RT (see Note) MTD-GW-2475-2001
...
xx
TINE-KITCUSTOM TIL MTD-GW-10802
