Troy-Bilt 21AE666M063 7 hp Roto-Tiller (2003)

Model: 21AE666M063 7 HP Roto-Tiller (2003)

Back To Assemblies

Save Part Not Listed?
product name

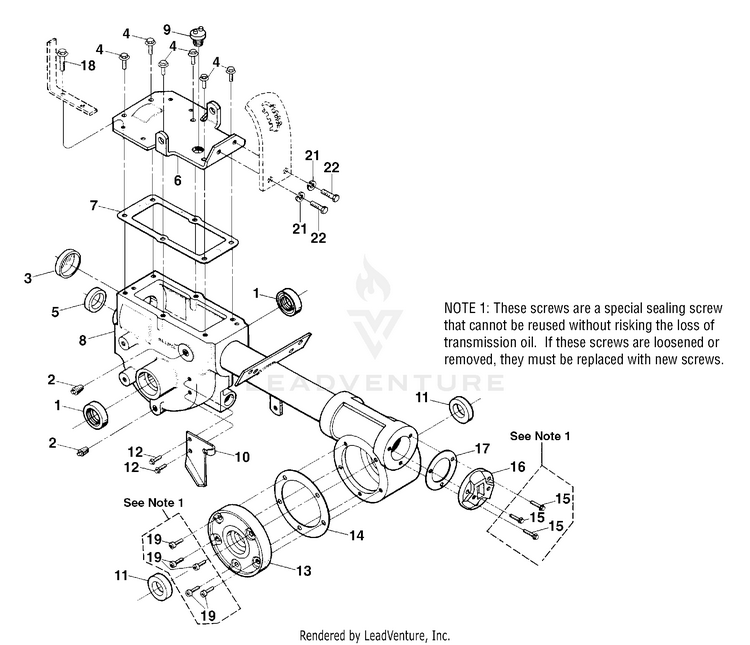

Transmission

...
...
1
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
2
Pipe Plug, 1/4, MTD-1105620
...
3
Seal, Transmission Bore MTD-721-04001
...
4
SCREW 5/16-18 Specify GRADE 5 if ordering part locally. MTD-710-04043
...
5
Oil Seal, .750 x 125 MTD-921-04044
...
6
COVER-TRANS MTD-1916193001
...
7
TRANSMISSION COVER GASKET MTD-GW-20694P
...
8
TRANSMISSION HOUSING MTD-919-04010
...
9
Plug MTD-GW-9467
...
10
PLATE-DRIVE CABLE MTD-1916198001
...
11
Oil Seal, .984 x 1.75 MTD-921-04035
...
12
Flange Screw, 5/16-18,.625, Gr5 Specify GRADE 5 if ordering part locally. MTD-710-04049
...
13
Tiller Housing Cover, left side MTD-GW-20873
...
14
TILLER COVER GASKET A/R MTD-GW-1129-1099
...
15
SEALING KIT A/R MTD-1915089
...
16
Rear Bearing Cover MTD-718-04406
...
17
BEARING COVER GASKET A/R MTD-GW-1124-2099
...
18
SCREW 5/16-18 x 1.00 Specify GRADE 5 if ordering part locally. MTD-710-0602
...
19
SEALING KIT A/R MTD-1915087
...
21
Lockwasher, 3/8 MTD-736-0169
...
22
Hex Hd. Screw, 3/8-16 x 3/4 Specify GRADE 5 if ordering part locally. MTD-710-0216
