Troy-Bilt 21AE663E066 6.5hp Elec (2007) Roto-Tiller

Model: 21AE663E066 6.5HP Elec Roto-Tiller (2007)

Back To Assemblies

Save Part Not Listed?
product name

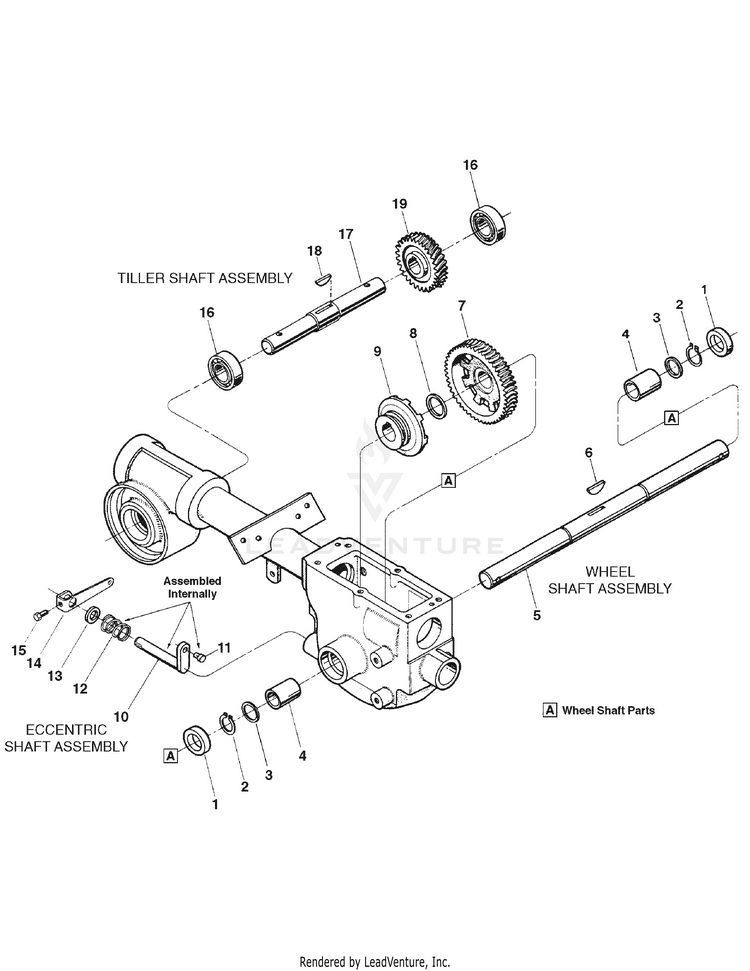

Wheel & Tiller Shaft Assemblies

...
...
1
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
2
Retaining Ring MTD-716-04104
...
3
Washer, 1.375 x 1.015 x .062 As Required MTD-736-04309
...
3
Washer, 1.375 x 1.015 x .03 As Required MTD-736-04260
...
3
Washer, 1.375 x 1.015 x .015 As Required MTD-736-04259
...
3
Washer, 1.375 x 1.015 x .01 As Required MTD-736-04258
...
4
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
5
Wheel Shaft MTD-911-04482
...
6
Hi-Pro Key, 1/4 x 1-5/16 MTD-GW-9373
...
7
Wheel Drive Worm Gear (cast-iron) MTD-GW-20914
...
8
Shim (between key and gear), 1.016 I.D. x 1.468 O.D. x.062 Thick MTD-GW-9935
...
9
Wheel Drive Clutch (cast-iron) MTD-GW-20712
...
10
Eccentric Shaft MTD-611-04002
...
11
PIN MTD-738-04448
...
12
Spring MTD-GW-9055
...
13
Oil Seal, .625 x 1.0 MTD-921-04034
...
14
Eccentric Shaft Lever MTD-786-04001
...
15
Hex Hd. Screw, 1/4-20 x 1/2 Specify Grade 5 if oredering part locally. MTD-710-3013
...
16
PTO SHAFT BALL BEARING MTD-941-3037
...
17
Tiller Shaft MTD-GW-20896
...
18
Woodruff Key, 1/4 x 1-1/4 MTD-GW-1104
...
19
Tiller Drive Worm Gear (bronze) MTD-GW-20913
