Troy-Bilt 21AE662H066 Elec (2010) Roto-Tiller

Model: 21AE662H066 Elec Roto-Tiller (2010)

Back To Assemblies

Save Part Not Listed?
product name

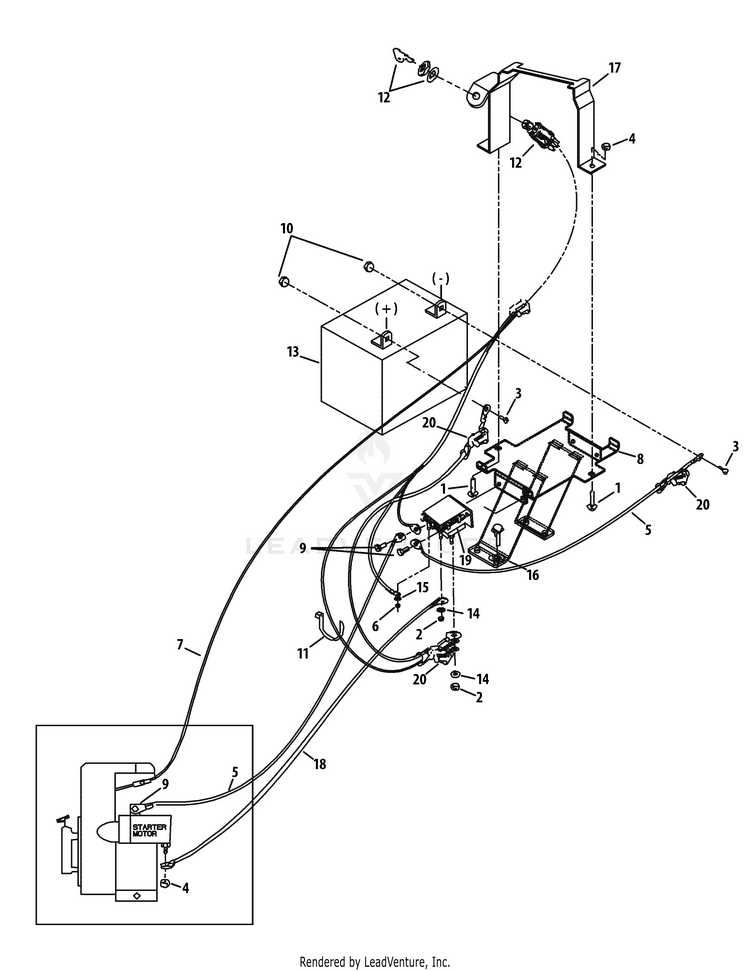

Electric Start

...
...
1
Carriage Screw 1/4-20 x 1.25 MTD-1186073
...
2
NUT-5/16X 24 MTD-912-3057
...
3
SCREW-FLANGE MTD-1186309
...
4
Hex Locknut 1/4-20 MTD-1186389
...
5
Cable (Ground Wire) MTD-1901202
...
6
Hexlock Washer Nut, 10-32 MTD-GW-9853
...
7
Electric Start Harness MTD-725-04346
...
8
BATTERY BRACKET ASSEMBLY (MTD RED) MTD-686-04024-0638
...
9
Self-tapping Screw 1/4-20 x .5 MTD-710-0599
...
10
HEX NUT MTD-712-3006
...
11
Cable Tie MTD-725-0157
...
12
Ignition Switch MTD-925-0267B
...
13
BATTERY MTD-925-1707D
...
14
Lock Washer 5/16 MTD-936-0119
...
15
EXTERNAL WASHER #10 MTD-936-0147
...
16
External Lock Washer 5/16 MTD-736-0607
...
17
Keyswitch Clamp MTD-1900873
...
18
Cable (Solenoid to Starter Motor) MTD-GW-96510
...
19
Solenoid (Incl. Nuts and Washers for Cables and Wires) MTD-GW-96514099
...
20
BOOT-BATTERY CABLE MTD-GW-97020
