Troy-Bilt 21A-683F766 8hp (2007) Roto-Tiller

Model: 21A-683F766 8HP Roto-Tiller (2007)

Back To Assemblies

Save Part Not Listed?
product name

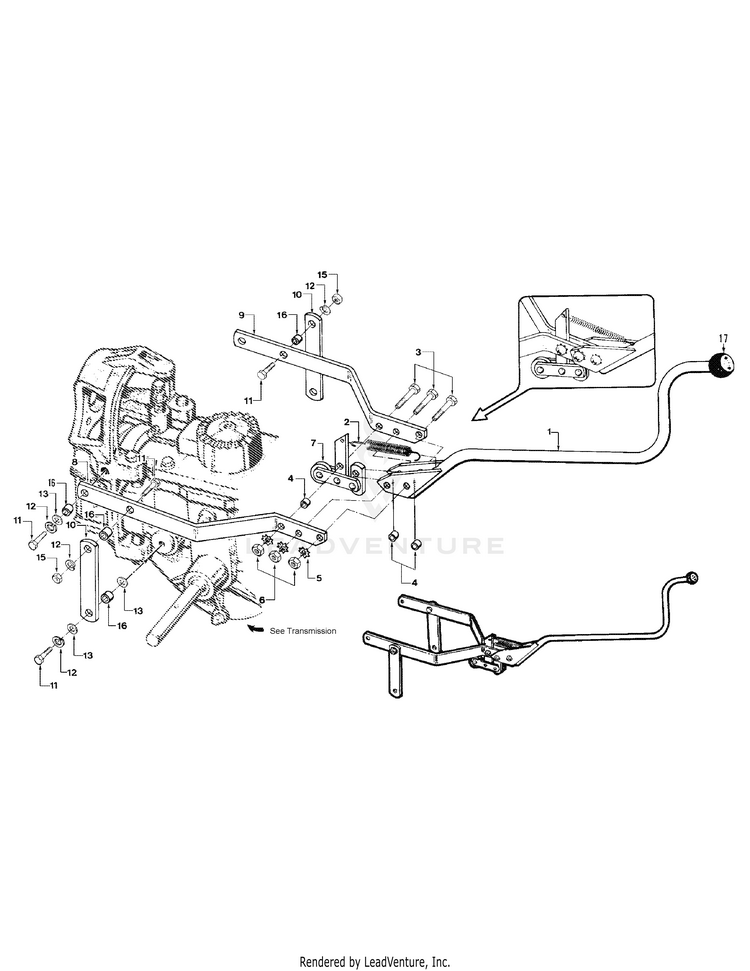

PTO Drive Assembly

...
...
1
FORWARD/REVERSE LEVER ASSEMBLY (Incl. Ref 17) MTD-647-04006
...
2
Spring-clutch pawl MTD-1908156
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
Bushing-3/8" MTD-GW-2447
...
5
External L-Washer 5/16 . MTD-736-0607
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Roller Assembly MTD-686-04006
...
8
YOKE-LH RED MTD-1900468010
...
9
YOKE-RH RED MTD-1900469010
...
10
Yoke Pivot Link MTD-1900860001
...
11
Bolt-hex hd., 3/8-16 x 1" MTD-710-0514
...
12
Lockwasher, spring lock, 3/8" MTD-736-0169
...
13
Washer flat, 3/8", S.A.E. MTD-736-3050
...
15
HEX NUT 3/8-16 GR5 MTD-712-3017
...
16
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug MTD-GW-1113-1099
...
17
Shift Control Knob MTD-GW-2595099
