Troy-Bilt 21A-683F766 8hp (2007) Roto-Tiller

Model: 21A-683F766 8HP Roto-Tiller (2007)

Back To Assemblies

Save Part Not Listed?
product name

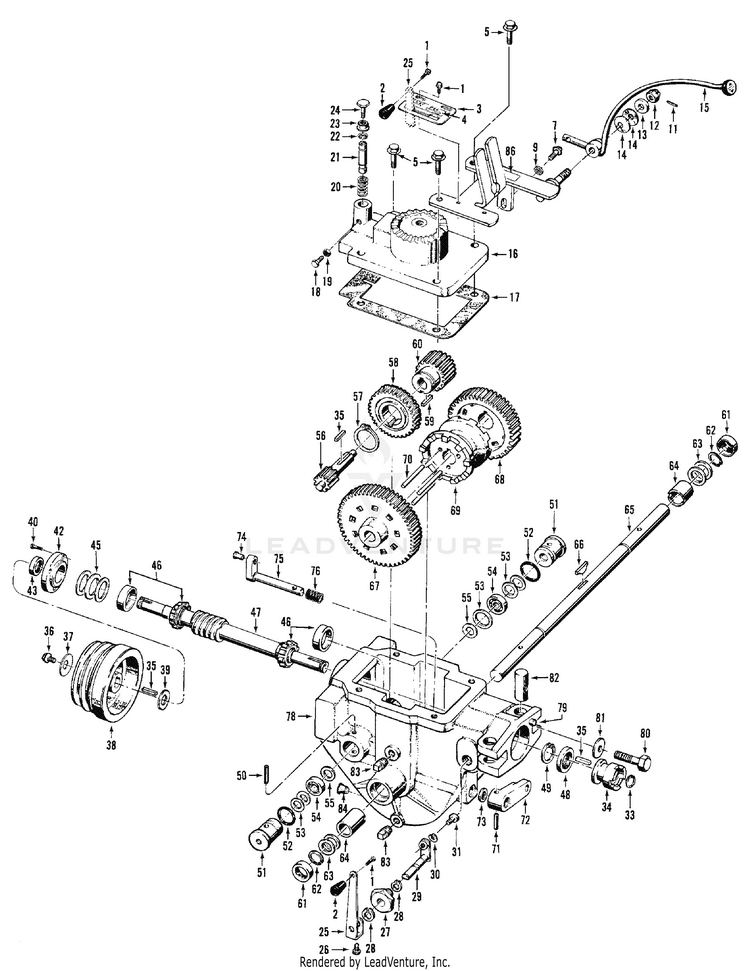

Power Unit Transmission Assembly

...
...
1
HEX SCREW #10-32 MTD-710-04454
...
2
Knob-tines/PTO clutch lever, tapered, plastic MTD-GW-9463
...
3
Detent Plate-tines/PTO clutch lever MTD-GW-2263
...
4
Decal-operating instructions, detent plate MTD-777I20945
...
5
Bolt-flanged hex hd., 3/8-16 x 1-1/2" MTD-1186349
...
7
SCREW 5/16-18 MTD-710-04043
...
9
FLAT WASHER MTD-736-0275
...
11
Pin-spring, 1/8" MTD-GW-9362
...
12
HEX NUT 1/2-20 MTD-GW-9838
...
13
Washer-shoulder, 1/2" MTD-GW-9934
...
14
Washer-disc spring MTD-GW-9932
...
15
LEVER - wheel speed shift MTD-GW-2628
...
16
Power Unit Transmission Cover MTD-719-04015P
...
17
Gasket-transmission cover MTD-GW-1123
...
18
Bolt-hex hd., 5/16-18 x 1", Grade 5, (remove with care) MTD-710-0376
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Spring-neutral plunger remove with care MTD-1901439
...
21
Plunger-neutral ( remove with care) MTD-GW-1035
...
22
Clip Ring-retains neutral pluger MTD-1901440
...
23
Nut-hex, flange locknut, 3/8" -16 MTD-1186393
...
24
Bolt-hex hd., 3/8-16 x 1-1/2", threaded full length MTD-1902004
...
25
Lever-eccentric, tines/PTO clutch MTD-786-04002
...
26
Bolt-hex hd., 1/4-20 x 1/2" MTD-710-3013
...
27
Bushing-tines/PTO clutch lever eccentric shaft MTD-741-04008
...
28
Retaining Ring-(snap ring), external MTD-GW-9516
...
29
Eccentric-shaft, tines/PTO clutch lever MTD-GW-2461
...
30
Lockwasher-hi-collar, 1/4" MTD-GW-9911
...
31
Screw, 1/4-20 x.375 MTD-710-04354
...
33
Retaining Ring-external MTD-716-0101
...
34
Dog Clutch MTD-718-04615
...
35
Key-3/16 sq x 1" MTD-GW-9301
...
36
HEX SCREW 5/16-24 x .75 MTD-710-0157
...
37
Washer, 396 x 1140 x 095, B&S MTD-736-04193
...
38
Pulley-transmission drive, cast iron MTD-GW-2107
...
39
Washer-flat, hardened shoulder 1-1/4" MTD-GW-50027
...
40
Bolt-hex hd., 1/4-20 x 3/4", front bearing cap MTD-1186310
...
42
Cap-front bearing MTD-718-04007
...
43
Oil Seal, .750 x 125 MTD-921-04044
...
45
Washer, Flat, 1.50 x 1.75 x .010 As Required MTD-736-04308
...
45
Washer, Flat, 1.50 x 1.75 x .03 As Required MTD-736-04307
...
45
Washer, Flat, 1.50 x 1.75 x .005 As Required MTD-736-04306
...
45
Washer, Flat, 1.50 x 1.75 x .062 As Required MTD-736-04305
...
46
Bearing, Tapered Roller (with race) MTD-941-0107
...
47
Shaft-main drive, power unit MTD-GW-2655
...
48
Oil Seal, .75 x 1.783 MTD-921-04030
...
49
Retaining Ring, Int MTD-716-04102
...
50
Pin-roll (spirol), 1/4 x 2" MTD-715-0121
...
51
Plug-retaining, pinion bearing MTD-718-04006
...
52
O-Ring-retaining plug MTD-GW-9604
...
53
Washer, 1.00 x 1.50 x .03, SS (on right side only one GW-1132-1 shim is also used between bearing and washer, Ref. 54 &55) As Required MTD-736-04386
...
53
Flat Washer, 1/234 x 1.015 x .062 As Required MTD-736-04310
...
53
Shim-same as Gw-1132-1, .010" As Required MTD-GW-1132-3
...
54
Bearing-ball, pinion shaft MTD-GW-9404
...
55
FLAT WASHER .510 x .995 MTD-736-0272
...
56
Stem Pinion-slow speed gear & shaft MTD-GW-1222
...
57
External Retaining Ring, 1.387 ID MTD-716-04119
...
58
Worm Gear-bronze, wheel drive MTD-GW-2656
...
59
Key-3/16" x 5/8" MTD-GW-9300
...
60
Gear-fast speed pinion MTD-GW-1233
...
61
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
62
Retaining Ring MTD-716-04104
...
63
Washer, 1.375 x 1.015 x .062 As Required MTD-736-04309
...
63
Washer, 1.375 x 1.015 x .03 As Required MTD-736-04260
...
63
Washer, 1.375 x 1.015 x .015 As Required MTD-736-04259
...
63
Washer, 1.375 x 1.015 x .01 As Required MTD-736-04258
...
63
Flat Washer, 1.375 x 1.015 x .005 As Required MTD-736-04257
...
64
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
65
KIT-SERVICE WHEEL SHAFT 611-04025 MTD-753-05574
...
66
Key-Hi Pro, 1/4" x 1-3/4" MTD-714-04014
...
67
Gear-slow spee, wheel drive MTD-GW-1223
...
68
Gear-fast speed, wheel drive MTD-GW-1232
...
69
Dog Clutch-wheel drive MTD-GW-1237
...
70
Pin-clutch guide, 1/4" diameter MTD-GW-1112
...
71
SPRING PIN .188X1. MTD-1911372
...
72
Wheel Speed Shifting Lever MTD-619-04000-0637
...
73
Oil Seal, .625 x 1.0 MTD-921-04034
...
74
PIN MTD-738-04448
...
75
Eccentric Shaft-wheel speed shifting MTD-611-04003
...
76
Spring-eccentric shift MTD-GW-1441
...
78
HOUSING-POWER UNIT TRA MTD-GW-2109099
...
79
Pin-alignment MTD-GW-9359
...
80
HEX HEAD CAP SCREW MTD-1100067
...
81
Washer-disc spring (concave), domed side faces bolt head MTD-GW-9928
...
82
Post-with threaded hole for Ref. No. 80 MTD-GW-2126
...
83
Plug-pipe, 1/4" MTD-1105620
...
84
Plug-red plastic, thread protector MTD-GW-9122
...
86
LABEL-FORWARD INTR MTD-777I20944
...
xx
POWER TRANSMISSION ASSEMBLY Does NOT include Ref. 35-39. Does NOT include Shift Lever and Bracket Assemblies, Ref. 3, 4, 10, 15, 95, 86, etc. MTD-918-04372
