Troy-Bilt 21A-683F766 8hp (2007) Roto-Tiller

Model: 21A-683F766 8HP Roto-Tiller (2007)

Back To Assemblies

Save Part Not Listed?
product name

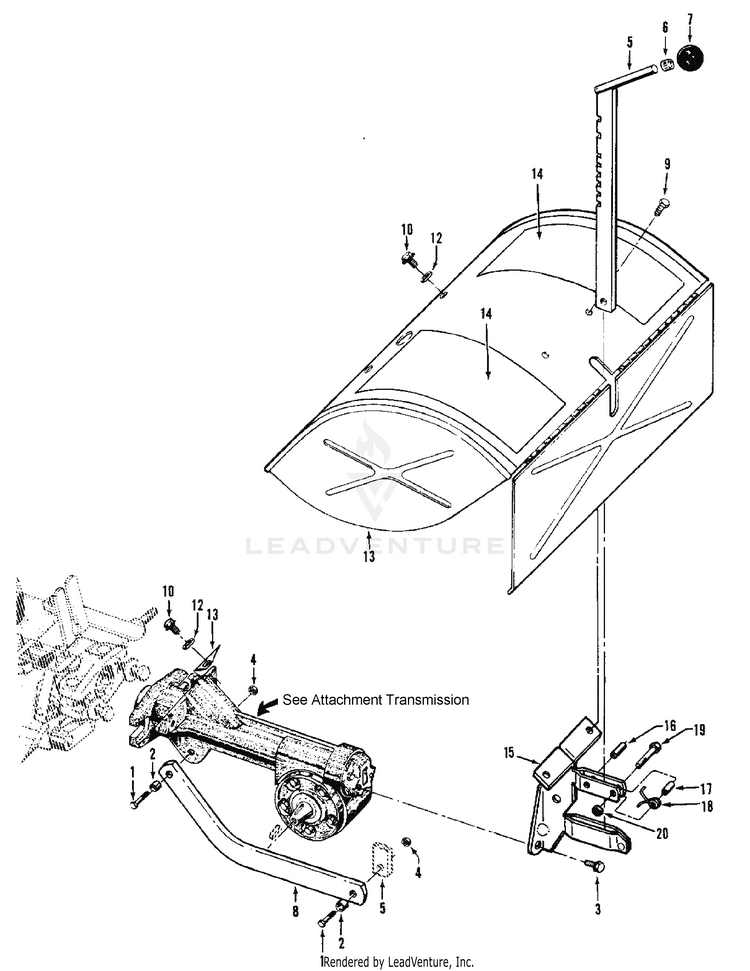

Tine Hood

...
...
1
Bolt-hex hd., 3/8-16 x 1-1/4" MTD-710-3005
...
2
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug MTD-GW-1113-1099
...
3
Bolt-flanged hex, 5/16-18 x 5/8" MTD-710-04049
...
4
Nut-hex, 3/8"-16 MTD-712-04065
...
5
Bar-depth regulator MTD-1900864
...
6
Ring-retaining MTD-GW-9120
...
7
Knob-depth regulator MTD-GW-9119
...
8
Depth Regulator Bar Drag MTD-1900867001
...
9
Screw-thread-forming,1/4-20 x 1/2" MTD-710-0599
...
10
Bolt-flanged hex hd.,5/16-18 x 3/4" MTD-710-04043
...
12
Washer-flat, 5/16" MTD-GW-9929
...
13
Hood MTD-1904563
...
14
Decal-hood, operating inst. (LH) MTD-777I22027
...
14
Decal-hood, operating inst. (RH) MTD-777S32049
...
15
Bracket MTD-GW-2525
...
16
Pin-roll (spirol) 1/4" x 1" MTD-715-04034
...
17
Spacer, Spilt MTD-750-04556
...
18
Spring MTD-732-04320
...
19
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
20
Locknut-1/4"-20 MTD-712-04064
