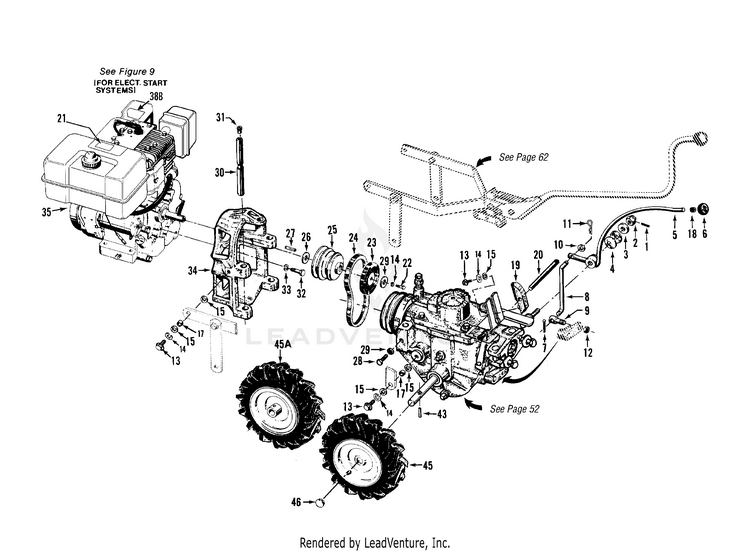

1

Pin-spring, 1/8" WHEEL SPEED LEVER MTD-GW-9362

2

HEX NUT 1/2-20 WHEEL SPEED LEVER MTD-GW-9838

3

Washer-shoulder, 1/2" WHEEL SPEED LEVER MTD-GW-9934

4

Washer-disc spring WHEEL SPEED LEVER MTD-GW-9932

5

Lever-wheel speed shift WHEEL SPEED LEVER MTD-GW-2628

6

Knob-wheel speed shift lever WHEEL SPEED LEVER MTD-1902240

7

Pin-cotter, 3/32" x 1" WHEEL SPEED LEVER MTD-GW-9317

8

Rod-connecting rod, wheel speed shift lever WHEEL SPEED LEVER MTD-GW-1231

9

Swivel-connecting rod WHEEL SPEED LEVER MTD-GW-1033

10

FLAT WASHER WHEEL SPEED LEVER MTD-736-0275

11

PIN - hair cotter WHEEL SPEED LEVER MTD-714-04048

12

Hex Lock Nut, 5/16-18 WHEEL SPEED LEVER MTD-912-0158

13

Bolt-flanged hex hd., 3/8-16 x 1" WHEEL SPEED LEVER MTD-710-0514

14

Lockwasher-spring lock, 3/8" WHEEL SPEED LEVER MTD-736-0169

15

Washer-flat, 3/8", S.A.E. WHEEL SPEED LEVER MTD-736-3050

17

BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug WHEEL SPEED LEVER MTD-GW-1113-1099

18

Ring-retaining (tolerance ring) WHEEL SPEED LEVER MTD-GW-9120

19

Block-belt adjustment, 3-7/8" BELT DRIVE SYSTEM MTD-GW-1920

20

Rod-belt adjust., 7" with measuring gauge BELT DRIVE SYSTEM MTD-GW-2100

21

LABEL-FREE HAND HE BELT DRIVE SYSTEM MTD-777I20942

22

Screw, 3/8-24 x 1.75 BELT DRIVE SYSTEM MTD-710-0539

23

DISC ONLY-reverse, rubber rimmed BELT DRIVE SYSTEM MTD-756-04171

24

Belt-forward drive (no substitute due to extra strength required) BELT DRIVE SYSTEM MTD-GW-9245

25

PULLEY- engine P.T.O. (Power Take Off) BELT DRIVE SYSTEM MTD-619-04124

26

SHIM - engine pulley, 1/16" thick BELT DRIVE SYSTEM MTD-736-04187

26

SHIM - same as above, 1/32" thick BELT DRIVE SYSTEM MTD-736-04192

27

Key-engine pulley, 3/16"sq. x 2-1/2" BELT DRIVE SYSTEM MTD-GW-9303

28

Bolt-hex hd., 5/16-18 x 1", Grade 5 ENGINES AND ENGINE MOUNT MTD-710-0376

29

HEX NUT 5/16-18 ENGINES AND ENGINE MOUNT MTD-712-3010

30

Bar-engine mounting ENGINES AND ENGINE MOUNT MTD-GW-1034A

31

Plug-thread protector, red plastic ENGINES AND ENGINE MOUNT MTD-GW-9147

32

BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting ENGINES AND ENGINE MOUNT MTD-710-0672

33

LOCK WASHER 5/16 ENGINES AND ENGINE MOUNT MTD-936-0119

34

Motor Mount ENGINES AND ENGINE MOUNT MTD-719-04222-0637

35

Briggs & Stratton Engine-Recoil or electric start. (Electric start requires key switch starting system.) ENGINES AND ENGINE MOUNT Contact an authorized engine dealer, Troy-Bilt dealer or the Factory for replacement engine information. Contact an authorized engine dealer for engine service or parts. Refer to the engine nameplate for engine model and type information. MTD-NA

?36

Washer, flat, .406 x 1.0 x .105 ENGINES AND ENGINE MOUNT MTD-736-3052

38B

LABEL-HOT SURFACE ENGINES AND ENGINE MOUNT MTD-777S30647

xx

LABEL-WARN FIRE/HO ENGINES AND ENGINE MOUNT MTD-777S30650

43

SPRING PIN .312X1. WHEEL & TIRE ASSEMBLIES MTD-1915072

45

WHEEL ASSEMBLY- WHEEL & TIRE ASSEMBLIES For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward. MTD-1915056

45A

WHEEL ASSEMBLY- WHEEL & TIRE ASSEMBLIES For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward. MTD-1915057
