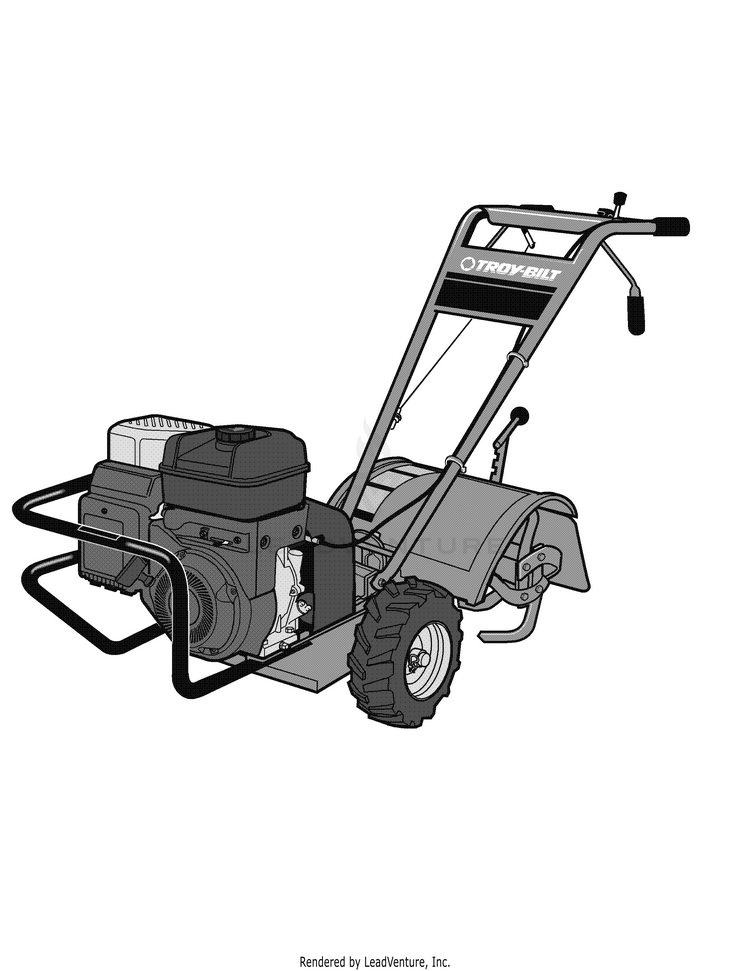

Troy-Bilt 21A-663M266 195cc (2008) Roto-Tiller

Model: 21A-663M266 195cc Roto-Tiller (2008)

Save Part Not Listed?
product name

.Quick Reference 663

...
...
xx
SPARK PLUG RN46 MTD-RN4C
...
xx
FILTER-POLY AIR CL MTD-TC-36634
...
xx
Air Filter MTD-TC-36046
...
xx
Forward Clutch Belt (FWD) MTD-954-04094
...
xx
Reverse Clutch Belt (REV) MTD-954-04095
...
xx
Forward Clutch Control Cable (FWD) MTD-946-04027
...
xx
Reverse Clutch Control Cable (REV) MTD-1916784P
...
xx
Tines - LH (LH) MTD-742-04223-0637
...
xx
Tines - RH (RH) MTD-742-04224-0637
...
xx
Tines Inner (LH) MTD-NA
...
xx
Tines Inner (RH) MTD-NA
...
xx
Rim MTD-NA
...
xx
Tire MTD-734-04163A
...
xx
WHEEL ASSEMBLY (13 x 5 x 6) (SBD GRAY) MTD-634P06425
...
xx
Foam Grip MTD-720-0274
...
xx
Shift Control MTD-GW-9057
...
xx
Handle Knob MTD-GW-9119

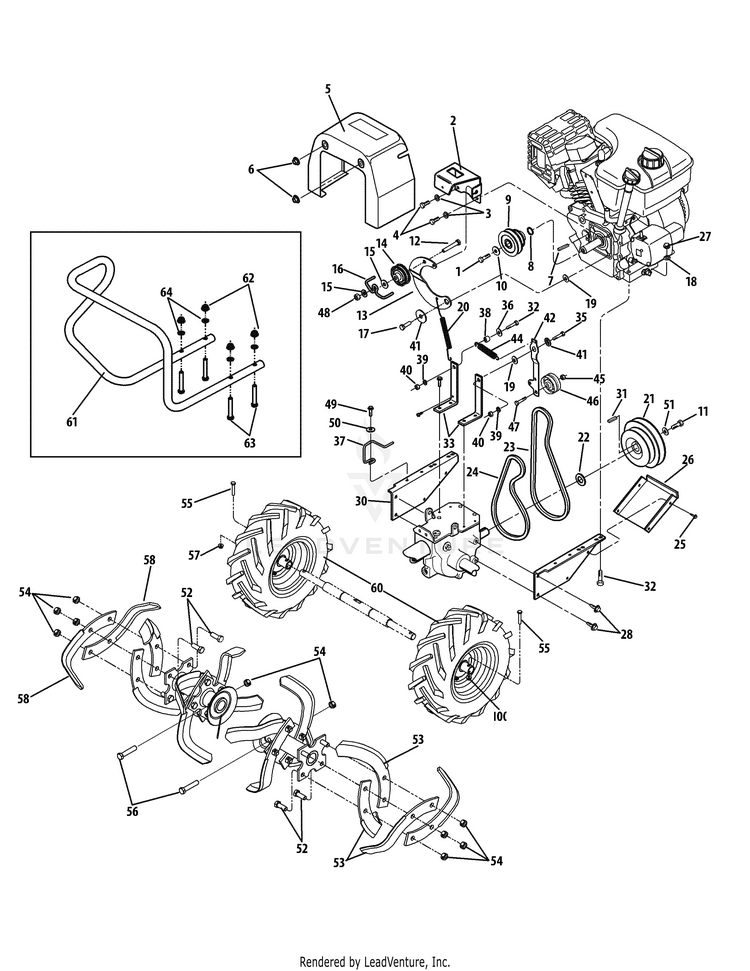

Drive System

...
...
1
Hex Screw, 3/8 -24 x 2.25 Model 662 MTD-710-0331
...
1
Screw, 3/8 -24 x 1.75 Model 663 MTD-710-0539
...
1
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting Model 665 MTD-710-0672
...
2
BELT COVER BRACKET MTD-786-04070-0637
...
3
LOCK WASHER 5/16 MTD-936-0119
...
4
HEX SCREW 5/16-24 x .50 MTD-710-0107
...
5
Cover MTD-731-05290
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
Key, 3/16-2 Model 662 MTD-714-0139
...
7
SQUARE KEY Model 663 MTD-914-04029
...
7
KEY-SQ 3/16X1.50 Model 665 MTD-714-0133
...
8
Shim MTD-736-04187
...
9
Engine Pulley Model 662 & Model 665 MTD-619-04130
...
9
ENGINE PULLEY Model 663 MTD-919-04015
...
10
Belle. Washer, .344 x 1.0 x .063 Model 662 & Model 663 MTD-736-0452
...
10
Belle. Washer .827 x .331 x .098 Model 665 MTD-736-04193
...
11
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting MTD-710-0672
...
12
Hex Head Screw, 5/16-18 x 2 MTD-710-3103
...
13
Reverse Idler Arm MTD-786-04276
...
14
Reverse Idler Pulley MTD-756-04169
...
15
Flat Washer, 5/16 MTD-736-0159
...
16
Wire Formed Belt Guide MTD-732-04081
...
17
Hex Head Screw, 5/16-24 x 1 MTD-710-0888
...
18
Speed Nut, .3125 MTD-726-0201
...
19
Flat Washer, 1-1/8 MTD-736-3078
...
20
Reverse Return Spring MTD-732-04077
...
21
Transmission Pulley MTD-619-04123
...
22
Support Washer MTD-736-04079
...
23
Reverse Clutch Belt MTD-954-04095
...
24
Forward Clutch Belt MTD-954-04094
...
25
SCREW-HW M10-32X.5 MTD-1900396
...
26
Belts/Pulleys Guard MTD-786-04080-0638
...
27
Hex Flange Nut, 5/16-18 MTD-712-04063
...
28
Hex Flange Screw, 5/16-18 x 3/4 MTD-710-04043
...
29
ENGINE SUPPORT (LH) MTD-786-04066
...
30
ENGINE SUPPORT (RH) MTD-786-04067-0637
...
31
KEY-SQ 3/16X1.50 MTD-714-0133
...
32
Hex Head Screw, 5/16-18 x 2-1/4 MTD-710-0395
...
33
BRACKET-BELT COVER MTD-1918774001
...
34
SCREW 5/16-18 x .750 MTD-710-1260A
...
35
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
36
FLAT WASHER MTD-736-0275
...
37
Belt Guide MTD-732-04082
...
38
Pivot Bushing MTD-750-04160
...
39
LOCK WASHER 5/16 MTD-936-0119
...
40
HEX NUT 5/16-18 MTD-712-3010
...
41
Forward Idler Pivot Spacer MTD-748-04087A
...
42
Forward Tiller Direction Idler Arm MTD-786-04275-0637
...
43
Self-tapping Screw, #10-24 MTD-710-04460
...
44
FORWARD RETURN SPRING MTD-732-04078
...
45
Hex Locknut, 5/16-18 MTD-712-3000
...
46
Forward Idler Pulley MTD-756-04170
...
47
Screw, 3/8-16 x 1-3/4 MTD-710-0347
...
48
Hex Lock Nut, 5/16-18 MTD-912-0158
...
49
SCR-FLANGE 1/4-20X3/4 GR5 MTD-1754128
...
50
Flat Washer, 1/4 MTD-736-0463
...
51
Belleville Washer, .827 x .331 x .098 MTD-736-04193
...
52
Hex Head Screw, 3/8-16 x 1 MTD-710-0514
...
53
Tines - LH MTD-742-04223-0637
...
54
Hex Locknut, 3/8-16 MTD-712-3000
...
55
Hex Head Screw, 1/4-20 x 1.5 MTD-710-0606
...
56
Hex Head Screw, 3/8 -16 x 2 MTD-710-3096
...
57
Flange Hex Locknut, 1/4-20 MTD-712-04064
...
58
Tines - RH MTD-742-04224-0637
...
59
Tine Holder MTD-686-04067
...
60
Wheel Assembly, 13 x 5 x 6 MTD-NA
...
60
Rim Assembly not shown MTD-634-04218
...
60
TUBELESS VALVE not shown MTD-934-0255
...
60
Tire not shown MTD-734-04163A
...
61
Bumper MTD-749-04193-0637
...
62
Hex Lock Nut, 5/16-18 MTD-712-04063
...
63
Hex Screw, 5/16-18 x 2-1/4 MTD-710-0395
...
64
Speed Nut, .3125 MTD-726-0201

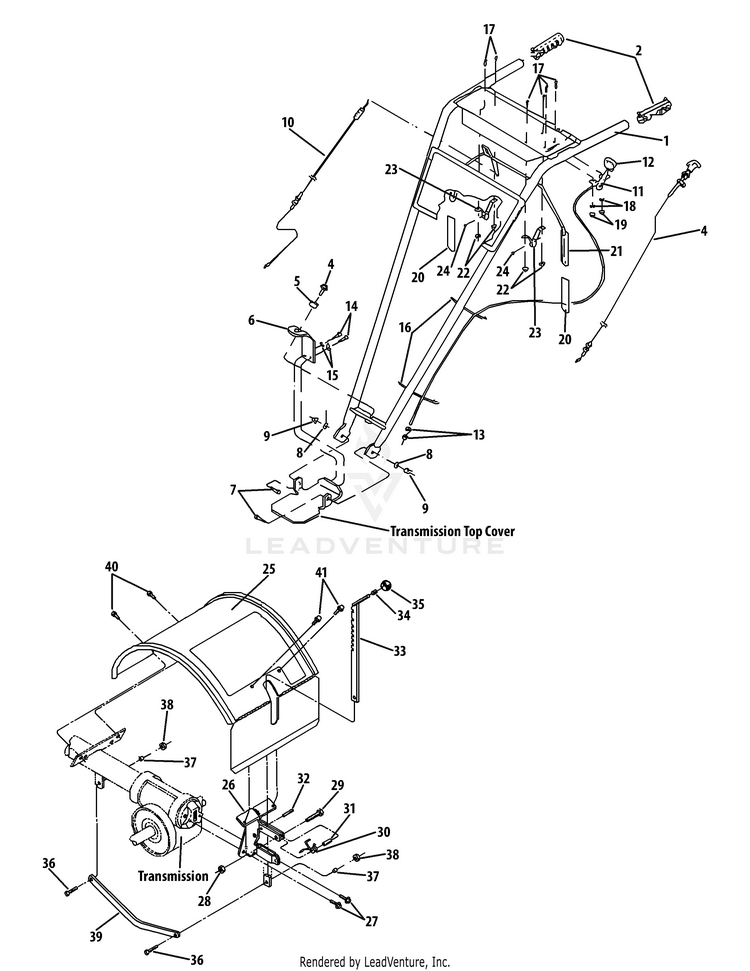

Handle & Tine Shield

...
...
1
HANDLE BAR WITH DECALS MTD-1918811P
...
2
Grip MTD-720-0274
...
3
Reverse Clutch Control Cable MTD-1916784P
...
4
Hex Flange Screw, 3/8-16 MTD-710-04042
...
5
Keyed Washer MTD-736-04445
...
6
PLATE-HANDLEBAR ADJUST MTD-1900475010
...
7
Hex Hd. Screw, 3/8 -16 x 1 MTD-710-0514
...
8
Plain Washer, 3/8 MTD-736-3050
...
9
Hex Locknut, 3/8 -16 MTD-712-3000
...
10
Forward Clutch Control Cable MTD-946-04027
...
11
Wheel Gear Control & Cable Ass MTD-GW-9442P
...
12
Wheel Gear Control Lever Knob MTD-GW-9057
...
13
NUT-5/16X 24 MTD-912-3057
...
14
Self-tapping Screw 3/8-16 x 0.75" MTD-710-0623
...
15
Lockwasher,3/8 MTD-736-0169
...
16
Cable Ties MTD-725-0157
...
17
Round Head Screw, #10-32 x 1/2 MTD-1114748
...
18
WASHER-LK MTD-1100240
...
19
Hex Nut, #10-32 MTD-1186208
...
20
Grip MTD-GW-9390
...
21
Bail, Forward Clutch Control MTD-1918840
...
22
Sems Nut MTD-GW-9853
...
23
Bail Support Bracket MTD-GW-20806
...
24
Self-tapping Screw, 1/4-20 x 1/2 MTD-710-0599
...
25
TINE SHIELD ASSEMBLY (MTD RED) MTD-686-04078-0638
...
26
Depth Regulator MTD-GW-2525
...
27
Hex Flange Screw, 5/16-18 x 5/8 MTD-710-04049
...
28
Hex Locknut, 1/4-20 MTD-712-04064
...
29
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
30
Spring MTD-732-04320
...
31
Spacer MTD-750-04556
...
32
Roll Pin (spiral),1/4 x 1 MTD-715-04034
...
33
Depth Regulator MTD-1900864
...
34
Retaining Ring MTD-GW-9120
...
35
Depth Regulator Knob MTD-GW-9119
...
36
Hex Head Screw, 3/8-16 x 1-1/4 MTD-710-3005
...
37
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug MTD-GW-1113-1099
...
38
Hex Nut, 3/8 -16 MTD-712-04065
...
39
DRAG BAR MTD-1916185001
...
40
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
41
Self-tapping Screw , 1/4-20 x 1/2 MTD-710-0599

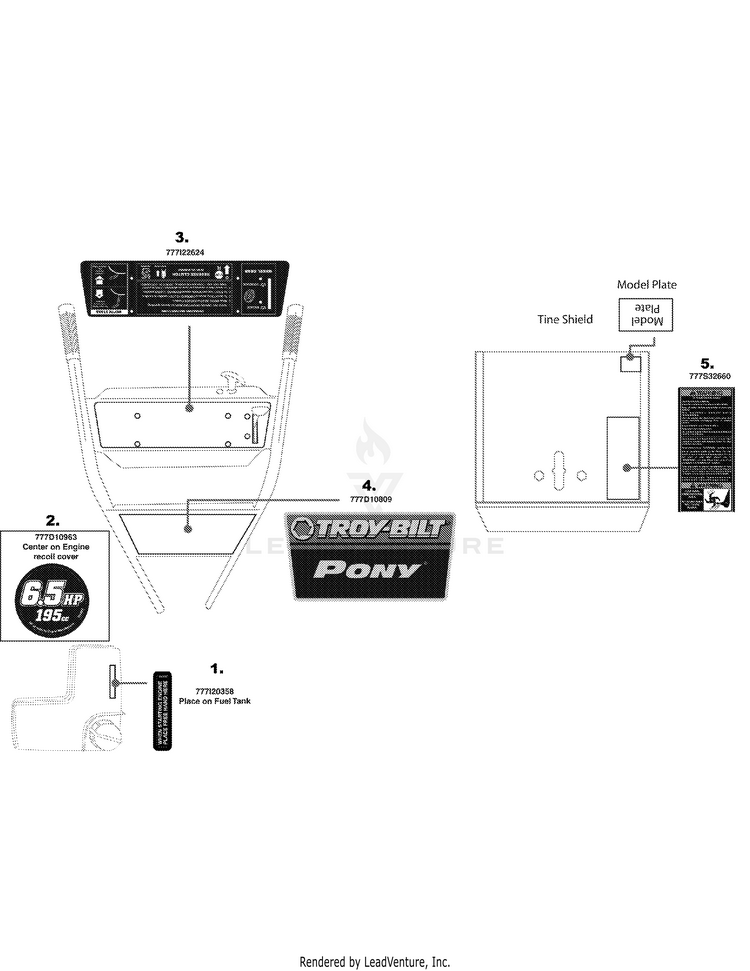

Label Map Pony

...
...
1
LABEL-PLACE HAND HERE MTD-777I20358
...
2
LABEL-ENGINE MTD-777D10963
...
3
LABEL:TILLER HANDLE:660 MTD-777I22624
...
4
LABEL-TILLER HANDLE PANEL:PONY MTD-777D10809
...
5
LABEL:TILLER TINE SHIELD MTD-777S32660

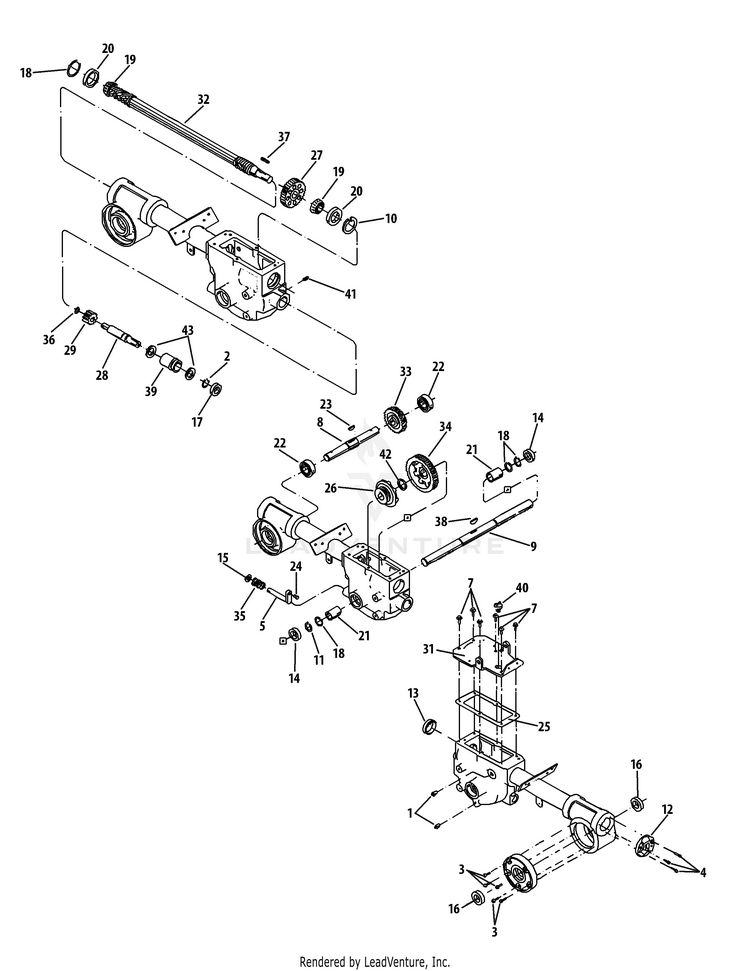

Transmission Assembly

...
...
1
Pipe Plug MTD-1105620
...
2
Retaining Ring-external MTD-716-0101
...
3
Hex Screw,1/4-20 x .625 MTD-1915068
...
4
Self-Sealing Screw, 1/4-20 x .875 MTD-1915069
...
5
Eccentric Shaft MTD-611-04002
...
6
TRANSMISSION HOUSING MTD-919-04010
...
7
Hex Flange Screw, 5/16-18 x .750 MTD-710-04043
...
8
Tiller Shaft MTD-GW-20896
...
9
Wheel Shaft MTD-911-04482
...
10
Retaining Ring MTD-716-04102
...
11
Retaining Ring MTD-716-04104
...
12
Rear Bearing Cover MTD-718-04406
...
13
Oil Seal, 1.79 x .25 MTD-721-04001
...
14
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
15
Oil Seal, .625 x 1.0 MTD-921-04034
...
16
Oil Seal, .984 x 1.75 MTD-921-04035
...
17
Oil Seal, .750 x 125 MTD-921-04044
...
18
Washer, 1.375 x 1.015 x .01 MTD-736-04258
...
18
Washer, 1.375 x 1.015 x .015 MTD-736-04259
...
18
Washer, 1.375 x 1.015 x .03 MTD-736-04260
...
18
Washer, 1.75 x 1.5 x .062 MTD-736-04305
...
18
Washer, 1.75 x 1.5 x .005 MTD-736-04306
...
18
Washer, 1.75 x 1.5 x .03 MTD-736-04307
...
18
Washer, 1.75 x 1.5 x .01 MTD-736-04308
...
18
Washer, 1.375 x 1.015 x .062 MTD-736-04309
...
19
Cone Bearing MTD-941-04298
...
20
Cup Bearing MTD-941-04299
...
21
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
22
PTO SHAFT BALL BEARING MTD-941-3037
...
23
Woodruff Key, .25 x 1.12 MTD-GW-1104
...
24
PIN MTD-738-04448
...
25
TRANSMISSION COVER GASKET MTD-GW-20694P
...
26
Wheel Drive Clutch MTD-GW-20712
...
27
Spur Gear MTD-717-04690
...
28
PINION SHAFT MTD-711-05388
...
29
Pinion Gear MTD-717-04689
...
30
Housing Cover MTD-GW-20873
...
31
COVER-TRANS MTD-1916193001
...
32
Drive Shaft MTD-GW-20912
...
33
Worm Gear MTD-GW-20913
...
34
Wheel Drive Gear MTD-GW-20914
...
35
Spring, .850 x .875 MTD-GW-9055
...
36
Bowed Ring MTD-GW-9093
...
37
Key, .188 x 1 MTD-GW-9301
...
38
Hi-Pro Key, .25 x 1.312 MTD-GW-9373
...
39
Bushing, 1.24 x .75 x .18 MTD-GW-9428
...
40
Oil Plug MTD-GW-9467
...
41
SCREW-SET MTD-GW-9677
...
42
Washer, 1.46 x 1.016 x .062 MTD-GW-9935
...
43
WASHER 1.022 MTD-GW-9953
