Troy-Bilt 21A-654J766 7hp Roto-Tiller (2004)

Model: 21A-654J766 7HP Roto-Tiller (2004)

Save Part Not Listed?
product name

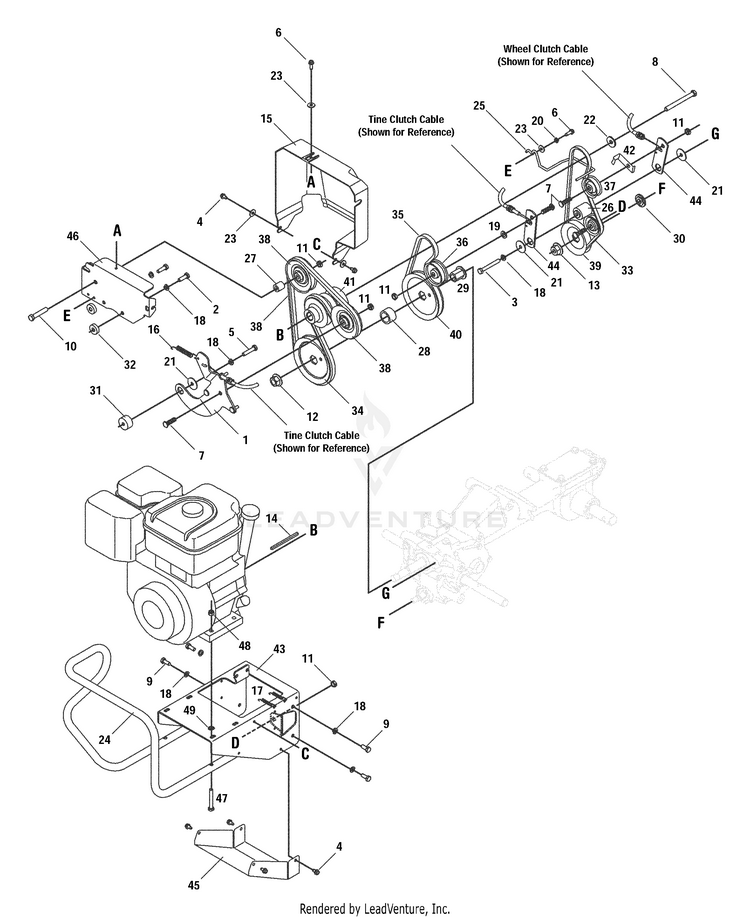

Drive System

...
...
1
Bracket Assembly, Clutch MTD-686-04034
...
2
Hex Head Screw, 5/16-24 x 1 MTD-710-0888
...
3
Hex Screw, 5/16-18, 2.50, Gr5 MTD-710-0378
...
4
Screw, Self-tapping, 1/4-20, 0.500 MTD-710-0599
...
5
Hex Screw, 5/16-24, 1.50, Gr5 MTD-710-0624
...
6
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
7
Hex Screw, 3/8-16, 1.25, Gr5 MTD-710-0723
...
8
Hex Screw, 3/8-24, 3.75, Gr5 MTD-710-0902
...
9
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
10
Hex Screw, 3/8-16, 2.00, Gr5 MTD-710-3144
...
11
JAM LOCK NUT MTD-712-0266A
...
12
Nut, Flange, 9/16-18, Gr2 MTD-712-0700
...
13
Flange Nut, 7/16-20 MTD-912-0702
...
14
Key, Sq,.1875 x 3.625 MTD-714-04032
...
15
Cover, Belt MTD-731-04590
...
16
Extension Spring, .38 x 3.25 MTD-932-0320
...
17
EXTENSION SPRING MTD-732-0545
...
18
LOCK WASHER 5/16 MTD-936-0119
...
19
Washer, Flat,.375 x.738 x.063 MTD-736-0185
...
20
Lock Washer MTD-936-0329
...
21
Washer, Flat,.330 x 1.25 x.06, Ht MTD-736-0362
...
22
Washer, Bell,.396 x 1.140 x.095 MTD-736-0452
...
23
Washer, Flat,.260 x.720 x.060 MTD-736-3090
...
24
Bumper MTD-1918749
...
25
Keeper, Belt MTD-747-04191
...
26
Spacer,.330 x 1.25 x 1.605 MTD-750-04221
...
27
Spacer,.390 x.750 x.812 MTD-750-04223
...
28
Spacer, 1.030 x 1.375 x.830 Lg MTD-750-04225
...
29
Hub, Pulley, Input, 5/8 MTD-750-04258
...
30
Hub, Pulley, Input, 1/2 MTD-750-04259
...
31
Spacer,.330 x 1.250 x.845 MTD-750-04261
...
32
Spacer.33 x 1.0 OD MTD-750-0943
...
33
V - Belt MTD-954-0346
...
34
BELT MTD-954-04036
...
35
V-BELT 4L x 25.475 LG MTD-954-04056
...
36
FLAT IDLER PULLEY-2 1/4 OD X MTD-756-0137
...
37
Pulley, Idler, Flat 1.88 OD MTD-756-0313
...
38
V-Pulley, 3.5 OD MTD-956-0399
...
39
Pulley, 3l, 3.088 Eff Dia MTD-756-04081
...
40
Pulley, 4l, 5.0 Eff Dia MTD-756-04082
...
41
Pulley, Engine, 3 Belt MTD-756-04090
...
42
Keeper, Belt, Idler MTD-786-0149
...
43
Frame, Engine MTD-786-04177
...
44
Bracket, Clutch, Forward MTD-786-04178
...
45
Cover, Bottom, Frame, Engine MTD-786-04180
...
46
Bracket, Mounting, Cover, Belt MTD-786-04182
...
47
Hex Screw, 5/16-18, 2.25, Gr5 MTD-710-0395
...
48
Nut, Hex Lock, 5/16-18, Gr5, Nylon MTD-712-0429
...
49
Nut, Speed,.3125 ID MTD-726-0201

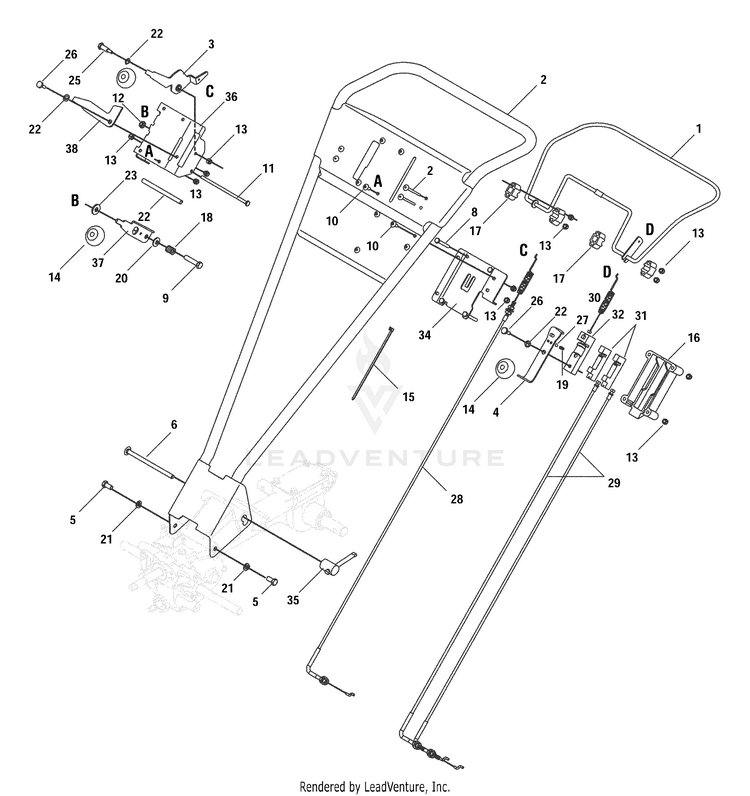

Handlebar And Controls

...
...
1
Bail Assembly, Control, Wheel MTD-647-04026
...
2
Handle Assembly, Loop MTD-649-04014
...
3
Lever Assembly, Control, Tine MTD-686-04038
...
4
Lever Assembly, Pivot MTD-686-04040
...
5
Hex Screw, 3/8-16,.75, Gr5 MTD-710-0216
...
6
Screw, Carriage, 3/8-16, 6.00, Gr5 MTD-710-04198
...
7
Screw, Machine, 1/4-20, 2.500 MTD-710-04202
...
8
Hex Screw, 1/4-20, 2.0, Gr5 MTD-710-0501
...
9
Hex Screw, 3/8-24, 1.75, Gr5 MTD-710-0539
...
10
Screw, Machine, 1/4-20, 0.625 MTD-710-0946
...
11
SCREW 1/4-20 x 6.00 GR5 MTD-710-1656
...
12
Nut, Jam Lock, 3/8-24, Gr5, Nylon MTD-712-0116
...
13
Nut, Hex Lock, 1/4-20, Gr8, Nylon MTD-712-0324
...
14
Knob, Shift MTD-720-04039
...
15
Cable, Tie, 3/16 x.05 x 7.4 MTD-725-0157
...
16
Box, Control, Select, Tine MTD-731-04616
...
17
Block, Mounting, Bail MTD-731-04644
...
18
Spring, Compression,.39x.60 x.88 Lg MTD-732-0193
...
19
DRIVE SPRING MTD-732-0590A
...
20
Washer, Bell,.375 x.870 x.063 MTD-736-0105
...
21
Washer, Lock, 3/8, Regular Duty MTD-736-0169
...
22
Washer, Spring, .39 x .625 x .012 MTD-736-0413
...
23
Washer, Flat,.406 x 1.00 x.105 MTD-736-3052
...
25
Screw, Shoulder,.373 x.830, 1/4-20 MTD-738-04072
...
26
Screw, Shoulder,.373 x.180 x 1/4-20 MTD-738-04088
...
27
DETENT BALL .250 MTD-741-0862
...
28
Cable, Clutch, Drive, Wheel MTD-746-04098
...
29
Cable, Clutch, Drive, Tine MTD-746-04099
...
30
Cable, Engagement, Tine MTD-746-04100
...
31
Block, Control, Select, Tine MTD-746-04107
...
32
Block, Control, Engage, Tine MTD-746-04108
...
33
Spacer,.270 x.375 x 5.00 Lg MTD-750-04226
...
34
Bracket, Mounting, Control MTD-786-04162
...
35
Crank, Adjustment, Handle MTD-786-04199
...
36
Bracket, Mounting, Control MTD-786-04212
...
37
Lever, Shift MTD-786-04213
...
38
Bracket, Pivot, Interlock MTD-786-04214

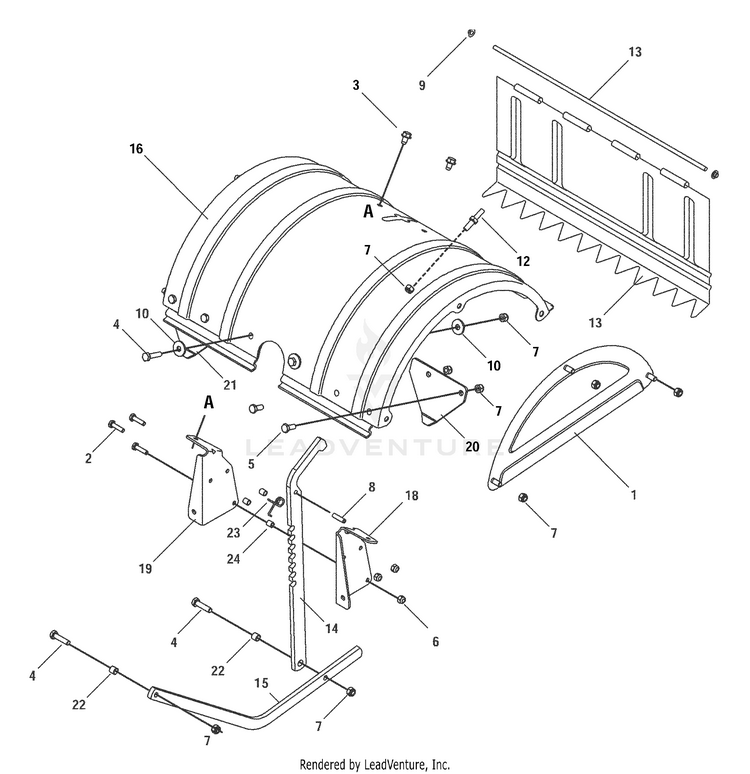

Tine Shield

...
...
1
END COVER ASSEMBLY MTD-686-0044B
...
2
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
3
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Hex Screw, 5/16-18, 1.25, Gr5 MTD-710-0874
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
Nut, Hex Lock, 1/4-20, Gr8, Nylon MTD-712-0324
...
7
Nut, Hex Lock, 5/16-18, Gr5, Nylon MTD-712-0429
...
8
Pin, Spring, 1/4 Dia x 1.00 Lg MTD-715-0108
...
9
PUSH NUT MTD-726-0106
...
10
FLAT WASHER .345X1.0X.100 MTD-736-3089
...
11
Hex Screw, 5/16-18 x .75 MTD-938-0849
...
12
Rod, Tiller Flap MTD-747-0432
...
13
Shield, Tine, Rear MTD-786-0113
...
14
Bar, Depth MTD-786-04171
...
15
Bar, Drag, Depth MTD-786-04172
...
16
Shield, Tine MTD-786-04179
...
17
Bracket, Shield, Tine MTD-786-04184
...
18
Bracket, Mounting, Bar, Depth, LH MTD-786-04215
...
19
Bracket, Mounting, Bar, Depth, RH MTD-786-04216
...
20
Bracket, Deflector, LH MTD-786-04220
...
21
Bracket, Deflector, RH MTD-786-04221
...
22
BUSHING MTD-GW-55088
...
23
Torsion Spring MTD-732-04320
...
24
Spacer,.350 x.268 x.375 MTD-GW-9534

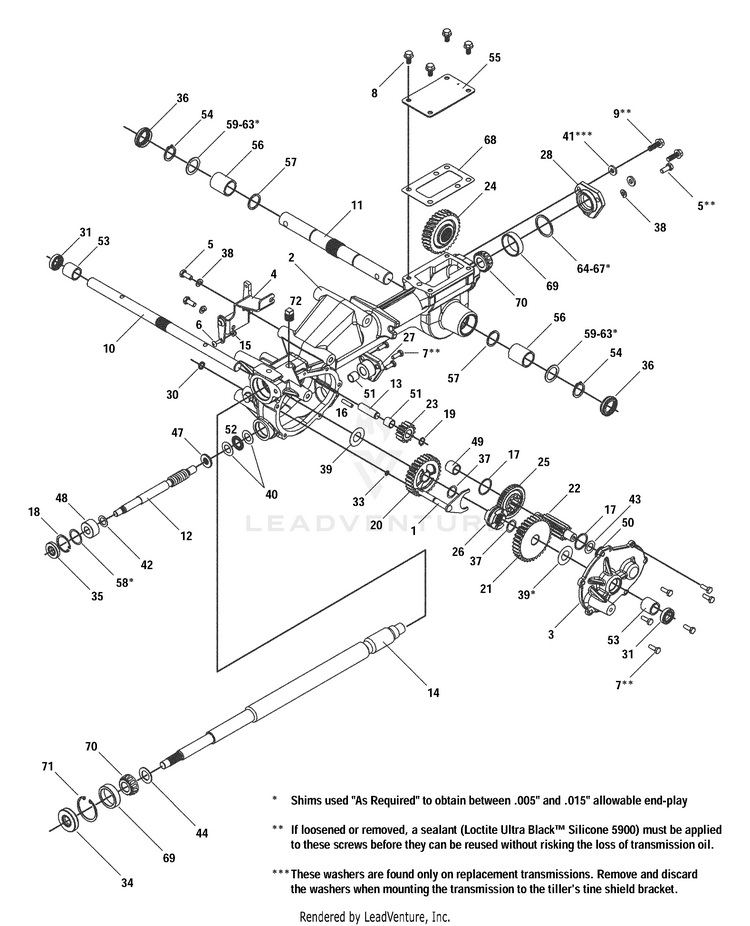

Transmission

...
...
1
Shaft Assembly, Detent MTD-611-04033
...
2
Housing, Transmission MTD-619-04069
...
3
Cover, Housing, Transmission MTD-619-04070
...
4
Link Assembly, Shift MTD-686-04046
...
5
Hex Screw, 5/16-18,.75, Gr5, Patch If loosened or removed, a sealant (Loctite Ultra Black(TM) Silicone 5900) must be applied to these screws before they can be reused without risking the loss of transmission oil. MTD-710-1880
...
6
Screw, Machine, #10-24, 0.625 MTD-710-0425
...
7
Hex Screw, 1/4-20,.75, Gr5 If loosened or removed, a sealant (Loctite Ultra Black(TM) Silicone 5900) must be applied to these screws before they can be reused without risking the loss of transmission oil. MTD-710-3015
...
8
Flange Screw, 5/16-18,.625, Gr5 MTD-710-04049
...
9
Flange Screw, 5/16-18, 1.0, Gr5 If loosened or removed, a sealant (Loctite Ultra Black(TM) Silicone 5900) must be applied to these screws before they can be reused without risking the loss of transmission oil. MTD-710-04048
...
10
Shaft, Wheel,.750 Dia x 15.46 Lg MTD-711-04261
...
11
Shaft, Tiller, Tine MTD-711-04263
...
12
Shaft, Worm, Drive MTD-711-04178
...
13
Shaft, Idler,.500 Dia x 1.823 Lg MTD-711-04177
...
14
Shaft, Drive MTD-711-04168
...
15
Nut, Hex Lock, #10-24, Gr2, Nylon MTD-712-0161
...
16
Dowel Pin MTD-915-0221
...
17
Ring, Retaining, External, 1.188 Dia Shaft MTD-716-04026
...
18
Ring, Retaining, Int, 1.25 Dia Bore MTD-716-04027
...
19
Ring, Snap,.500 MTD-716-0865
...
20
Gear, Spur, 30t MTD-717-04088
...
21
Gear, Spur, 34t MTD-717-04084
...
22
Gear, Spur, 10t MTD-717-04083
...
23
Gear, Spur, 13t MTD-717-04087
...
24
Gear, Worm, 30t MTD-717-04093
...
25
Gear, Worm, 40t MTD-717-04090
...
26
Collar, Clutch MTD-718-04074
...
27
Cover, Bearing, Rear MTD-718-04065
...
28
Bearing Cover MTD-918-04435
...
30
OIL SEAL -.375 ID MTD-721-0212
...
31
Seal, Oil,.750 Shaft x 1.125 Bore MTD-721-04073
...
33
O-Ring, 1/4 x 3/8 x.07 MTD-721-04069
...
34
Seal,.750 Shaft x1.783 Bore x.375 MTD-721-04065
...
35
Seal,.563 Shaft x 1.25 Bore x.25 MTD-721-04064
...
36
Seal,Oil 1.00 Shft X 1.500 Bore MTD-921-04036
...
37
Washer, Flat,.751 x.975 x.01 MTD-736-04153
...
38
LOCK WASHER 5/16 MTD-936-0119
...
39
THRUST WASHER Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-936-0492
...
40
THRUST WASHER-.630 x 1.125 MTD-936-0419
...
41
Flat Washer, .344 x .750 x .120 These washers are found only on replacement transmissions. Remove and discard the washers when mounting the transmission to the tiller's tine shield bracket. MTD-936-3008
...
42
Washer, Flat,.5685 x.875 x.04 MTD-736-04102
...
43
THRUST WASHER MTD-736-0495
...
44
Washer, Thrust,.750 x 1.250 x.0615 MTD-736-0617
...
45
Grease, Seal MTD-737-0356
...
46
Oil, 85w 140 MTD-737-0353
...
47
Bearing, Hub MTD-741-04077
...
48
Bearing, 9/16 x 1.25 x.650 Lg MTD-741-04075
...
49
Bearing, Sleeve,.627 x.81 x.80 MTD-741-0973
...
50
Flange Bearing, 5/8 x 3/4 x 3/4 MTD-941-0336
...
51
Bearing, Sleeve,.503 x.626 x.600 MTD-741-0678
...
52
THRUST BEARING MTD-741-0469
...
53
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
54
Retaining Ring MTD-716-04104
...
55
COVER-TRANS REAR MTD-1916109001
...
56
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
57
Flat Washer, 1/234 x 1.015 x .062 MTD-736-04310
...
58
Washer, Flat, 1.015 x 1.234 x.010 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-GW-1132-3
...
59
Washer, 1.375 x 1.015 x .062 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04309
...
60
Washer, 1.375 x 1.015 x .03 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04260
...
61
Washer, 1.375 x 1.015 x .015 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04259
...
62
Washer, 1.375 x 1.015 x .01 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04258
...
63
Flat Washer, 1.375 x 1.015 x .005 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04257
...
64
Washer, Flat, 1.50 x 1.75 x .010 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04308
...
65
Washer, Flat, 1.50 x 1.75 x .03 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04307
...
66
Washer, Flat, 1.50 x 1.75 x .005 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04306
...
67
Washer, Flat, 1.50 x 1.75 x .062 Shims used "As Required" to obtain between .005" and .015" allowable end-play MTD-736-04305
...
68
Gear Housing Gasket MTD-921-04229
...
69
Cup Bearing MTD-941-04299
...
70
Cone Bearing MTD-941-04298
...
71
Retaining Ring, Int MTD-716-04102
...
72
Pipe Plug MTD-737-04202

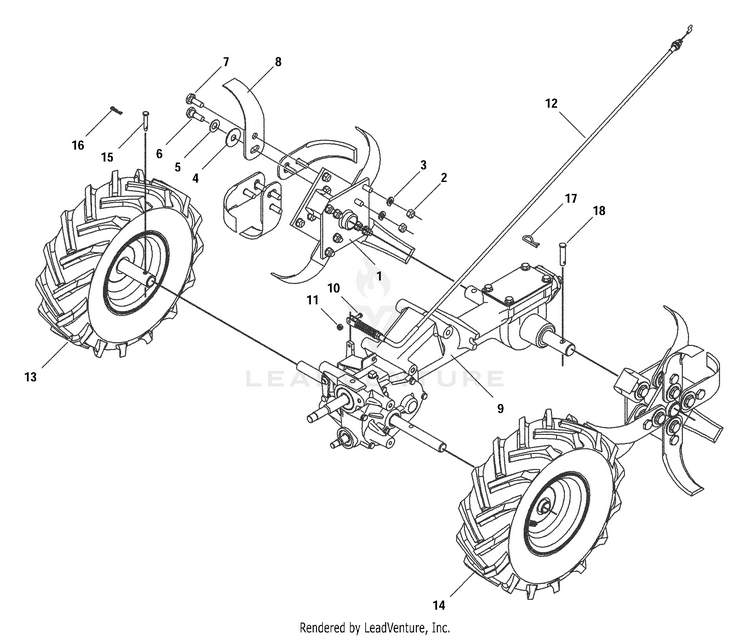

Wheels And Tines

...
...
1
Adapter Assembly, Tine MTD-642-04015
...
2
Nut, 3/8-24, Hex, Lock MTD-712-3054
...
3
Washer, Lock, 3/8, Regular Duty MTD-736-0169
...
4
Washer, Flat,.51 x 1.5 x.07 MTD-736-0208
...
5
Washer, Bell,.525 x 1.00 x.050 MTD-736-0253
...
6
SHOULDER SCREW MTD-938-0688
...
7
SHOULDER SCREW MTD-938-0689
...
8
ARTICULATING TINE MTD-742-0305A-0637
...
9
Transmission Assembly, Dual Direction MTD-618-04120
...
10
Screw, Machine, #10-24, 1.00, Gr5 MTD-710-1194
...
11
Nut, Hex Lock, #10-24, Gr2, Nylon MTD-712-0161
...
12
Cable, Shift, Wheel MTD-746-04150
...
13
WHEEL ASSEMBLY (14 x 4.5X 6) (RH) (GREY) MTD-634-0240
...
14
WHEEL ASSEMBLY (14 x 4.5X 6) (LH) (GREY) MTD-634-0241
...
15
Pin, Clevis,.250 x 1.53 MTD-711-1017
...
16
Pin, Cotter,.072 Dia. x 1.13 Lg MTD-714-0104
...
17
Internal Cotter Pin MTD-714-0149B
...
18
Pin, Clevis, 3/8, 1.75 MTD-711-0415
