Troy-Bilt 21A-39M8711 Colt FT XP (2017) Tiller

Model: 21A-39M8711 Colt FT XP (2017)

Back To Assemblies

Save Part Not Listed?
product name

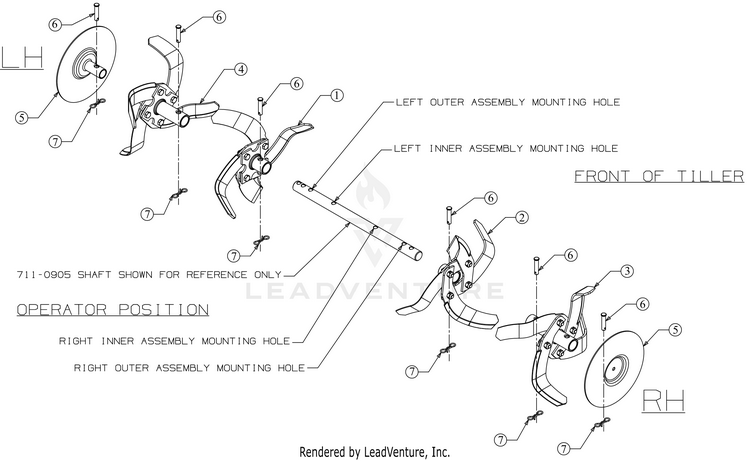

Tines

...
...
1
BOLO TINE ASSEMBLY (INNER) (LH) (LIBERTY RED) MTD-642-04103-5083
...
1
SCREW 3/8-16 X 1 GR5 MTD-710-0514
...
1
Hex Lock Nut, 3/8-16 MTD-712-3000
...
1
BOLO TINE 12" (LH) MTD-742-04223
...
1
BOLO TINE 12" (RH) MTD-742-04224
...
2
BOLO TINE ASSEMBLY (INNER) (RH) (LIBERTY RED) MTD-642-04104-5083
...
2
SCREW 3/8-16 X 1 GR5 MTD-710-0514
...
2
Hex Lock Nut, 3/8-16 MTD-712-3000
...
2
BOLO TINE 12" (LH) MTD-742-04223
...
2
BOLO TINE 12" (RH) MTD-742-04224
...
3
TINE ASSEMBLY OUTER (RH) (Choose Color When Ordering) MTD-642-05072
...
3
SCREW 3/8-16 X 1 GR5 MTD-710-0514
...
3
Hex Lock Nut, 3/8-16 MTD-712-3000
...
3
BOLO TINE 12" (LH) MTD-742-04223
...
3
BOLO TINE 12" (RH) MTD-742-04224
...
4
TINE ASSEMBLY OUTER (LH) (Choose Color When Ordering) MTD-642-05073
...
4
SCREW 3/8-16 X 1 GR5 MTD-710-0514
...
4
Hex Lock Nut, 3/8-16 MTD-712-3000
...
4
BOLO TINE 12" (LH) MTD-742-04223
...
4
BOLO TINE 12" (RH) MTD-742-04224
...
5
OUTER DISC PLATE (POWDER BLACK) MTD-686-0106-0637
...
6
Clevis Pin, 3/8 x 1.75 MTD-711-0415
...
7
PIN:COTTER MTD-714-04043
