Troy-Bilt 21A-39M8711 Colt FT XP (2017) Tiller

Model: 21A-39M8711 Colt FT XP (2017)

Back To Assemblies

Save Part Not Listed?
product name

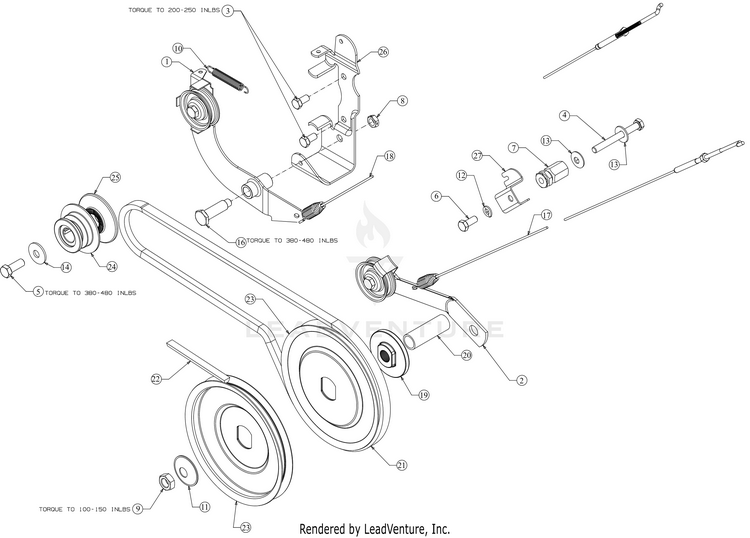

Drive

...
...
1
REVERSE ARM ASSEMBLY MTD-686-0013
...
1
SCREW 3/8-16 X 1.25 GR5 MTD-710-3005
...
1
JAM LOCK NUT MTD-712-0266A
...
1
IDLER PULLEY MTD-756-0313
...
1
KEEPER PLATE MTD-786-0041-0637
...
2
IDLER BRACKET ASSEMBLY MTD-686-0088
...
2
SCREW 3/8-16 X 1.25 GR5 MTD-710-3005
...
2
JAM LOCK NUT MTD-712-0266A
...
2
IDLER PULLEY MTD-756-0313
...
2
IDLER BRACKET MTD-786-0144-0637
...
2
BELT KEEPER MTD-786-0149
...
3
HEX SCREW 5/16-24 X .62 MTD-710-0170
...
4
HEX SCREW 5/16-18 X 3.00 MTD-710-0189
...
5
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039
...
6
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
7
SPECIAL HEX NUT MTD-711-1036A
...
8
JAM LOCK NUT MTD-712-0266A
...
9
NUT MTD-712-3029
...
10
EXTENSION SPRING MTD-732-0697
...
11
BELL WASHER .535 ID X1.50 OD X.052 MTD-736-0112
...
12
LOCK WASHER 5/16 MTD-936-0119
...
13
BELL WASHER .337 X.867 X .057 MTD-736-0242
...
14
Bell Washer, .396 x 1.14 x .095 MTD-736-0452
...
15
GREASE MTD-NA
...
16
Axle Bolt (Purchase Locally) MTD-738-0102
...
17
CABLE MTD-946-0918
...
18
CONTROL CABLE MTD-946-0953
...
19
PULLEY MOUNTING ADAPTER MTD-948-0350
...
20
SPACER MTD-950-0892
...
21
V-BELT MTD-954-0428
...
22
BELT 3L X 45.68" MTD-954-0429
...
23
PULLEY MTD-756-0585
...
24
ENGINE HALF PULLEY MTD-756-0600
...
25
ENGINE PULLEY INNER HALF MTD-756-0971
...
26
BRACKET MTD-786-0040B-0637
