Troy-Bilt 21A-128T063 2 hp Roto-Tiller (2003)

Troy-Bilt 21A-128T063 2 hp Roto-Tiller (2003)

Model: 21A-128T063 2 HP Roto-Tiller (2003)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Bolt - Carriage 5/16 MTD-710-0451

Washer-Fl .266 MTD-736-3020

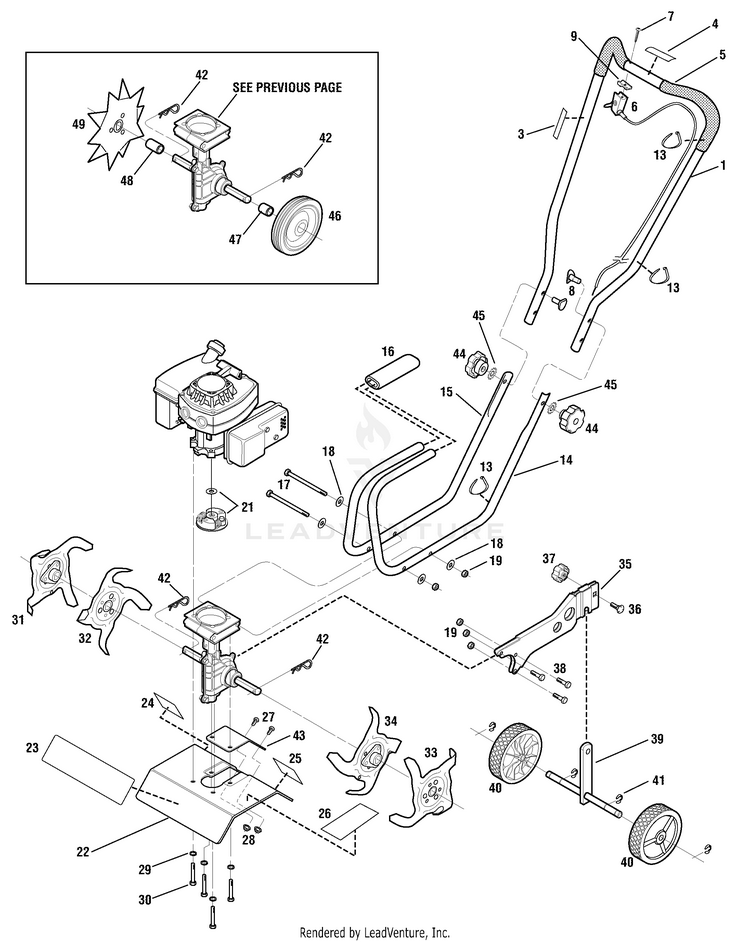

General Assembly

1

ASSM-HANDL MTD-1918303

3

LABEL-FREE HAND HERE MTD-777I00007

4

LABEL-TINE ENGAGEMENT MTD-777I00009

5

HANDLEBAR GRIP, PVC MTD-1917451

6

THROTTLE CABLE CONTROL MTD-1918123P

7

SCR-PH M10 MTD-1750608

8

SCREW 5/16-18 x 2.0 MTD-710-1174

9

SPACER-THROTTLE CO MTD-1909775

13

7" CABLE TIE MTD-725-0157

14

LOWER HANDLEBAR - LEFT-SIDE MTD-1918120

15

HANDLEBAR-LOWER MTD-1918121001

16

GRIP-LOWER H/BAR MTD-1909720

17

SCREW 1/4- MTD-1983663

18

Flat Washer .271 ID x .630 OD MTD-736-3020

19

Hex Locknut, 1/4-20 MTD-712-0324

21

CLUTCH ROTOR ASSEMBLY MTD-1909487P

22

HOOD W/DEC MTD-1918124

23

LABEL-TILLER/EDGER MTD-777D06104

24

LABEL-ROTATING TIN MTD-777S00012

25

LABEL-HOT SURFACE MTD-777S30647

26

LABEL-AVOID INJURY MTD-777S00013

27

SCR-HFLK 1 MTD-1186292

28

NUT-HFLK 10-24 MTD-1186387

29

Lock Washer MTD-936-0329

30

Hex Cap Screw, 1/4-20 x 2 MTD-710-0501

31

BOLO TINE RIGHT OUTER MTD-1909540

32

ASSEMBLY-BOLO RT INNER MTD-1909539

33

ASSEMBLY-BOLO LT OUTER MTD-1909712

34

ASSEMBLY-BOLO LT INNER MTD-1909711

35

Wheel Bracket MTD-1909680

36

CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451

37

KNOB 5/16-18 INSERT MTD-1909835

38

Hex Hd. Screw, 1/4-20 x 1 MTD-710-0206

39

Axle MTD-1909517

40

Wheel MTD-734-04261

41

E-Ring MTD-GW-9532

42

Hitch Pin MTD-1185590

43

Tine Hood Cover MTD-1981022

44

KNOB MTD-1763767

45

WASHER-LK .9 x .31 MTD-1177038

46

ASSEMBLY-TIRE/WHEEL EDGER ATTACHMENT MTD-1903777

47

SPACER-1.0 x .08 X EDGER ATTACHMENT MTD-1903778

48

Bushing - Long EDGER ATTACHMENT MTD-1983648

49

BLADE ASSEMBLY- EDGER ATTACHMENT MTD-1915054

xx

GEARBOX ASSEMBLY MTD-986-04000
